ISHIDA WM-NANO Service Manual

Chapter 3 Adjustment Mode

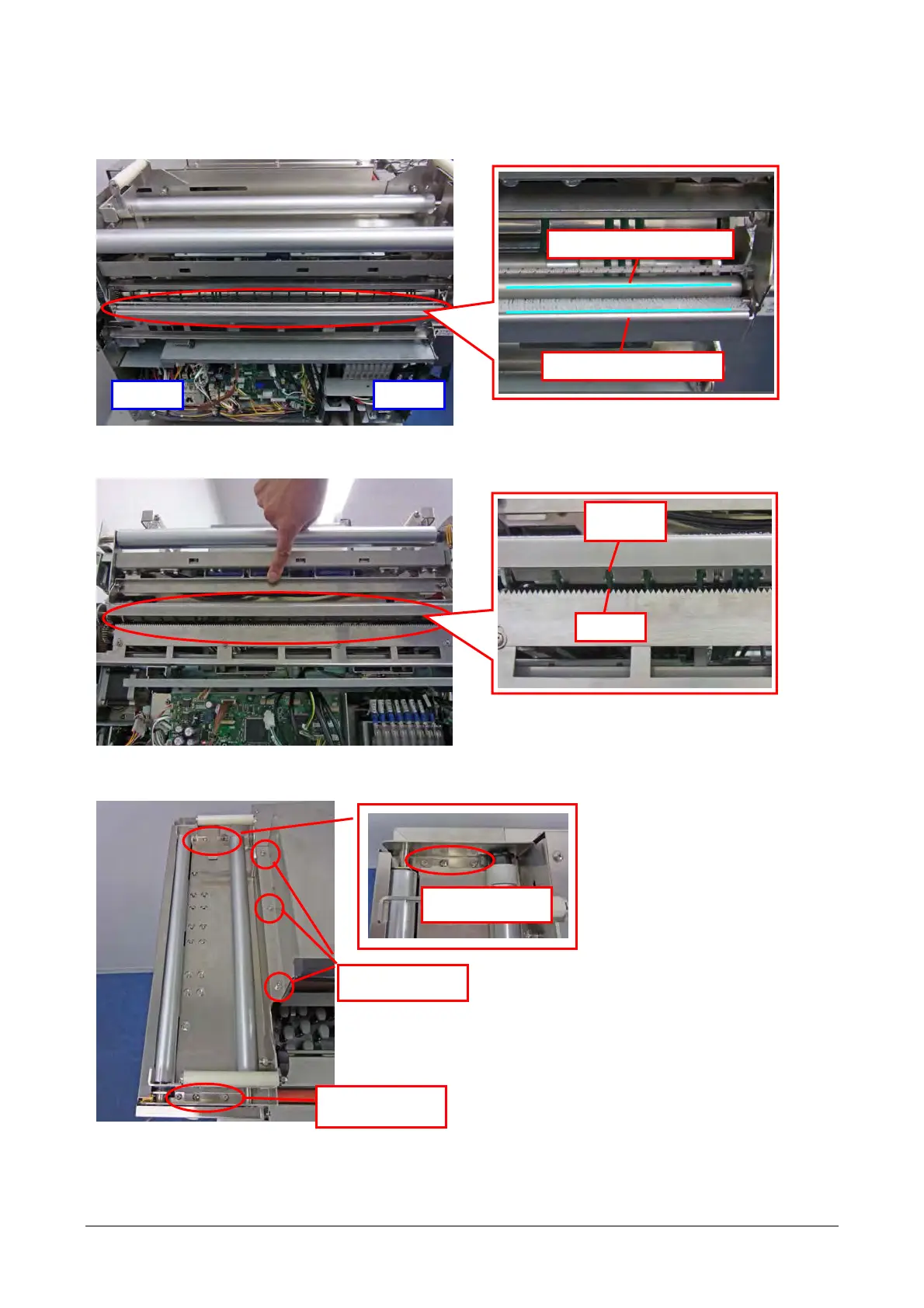

[1] Checking the film arm position
Check that the film arm is in the proper position before adjusting the film arm.
•Check that the film holder is parallel with the roller.
Check the parallelism from the near side to the back side.
•Check that the film arm is not slipped in the horizontal direction.
Check that the belt runs on the concave portion of the film arm.
If the belt does not run on the concave portion, conduct adjustment in the following manner.
1） Loosen the screws (9) that fix the film arm.
Back side Near side
Film arm roller
Film arm holder
Loosen the
screws
(
3
)
.
Loosen the
screws
(
3
)
.
Loosen the
screws (3).
Belt
凹部
Concave
portion
3-37
