Chapter 3 Adjustment Mode
z Adjusting clamp solenoid
Adjust the solenoids that open and close the clamps. Four solenoids are used to open and close the front
and back clamps.
Screw holes are elongated so that position is adjusted with screws (2 screws for each solenoid).

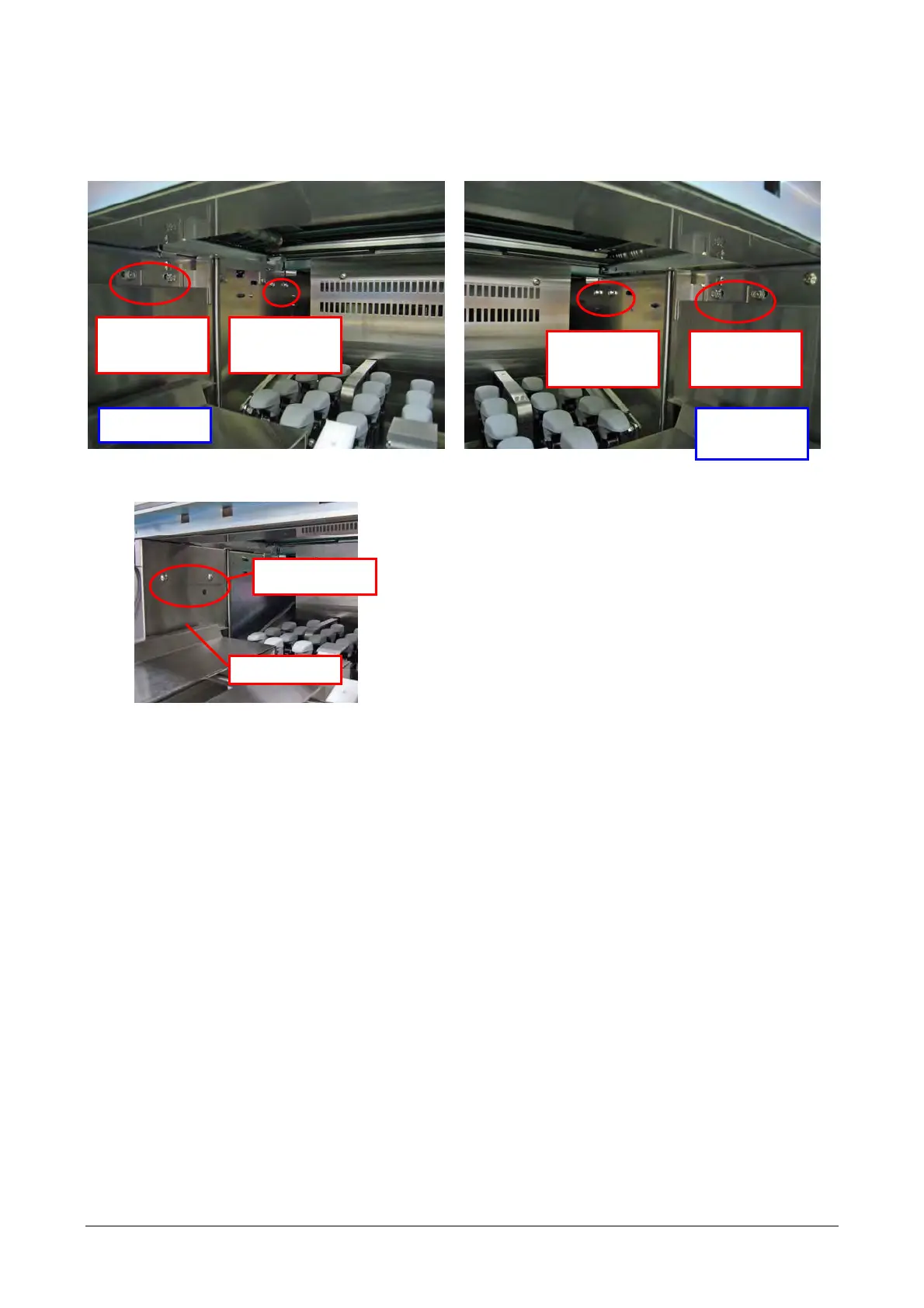

Solenoids are associated with each clamp as shown below.
For the center
clamp on the
back
For the left and
right clamps
on the front*
For the center
clamp on the
front
For the left and
right clamps
on the back
Right side of
the machine
body
Left side of the
machine body
*The solenoids for the left and right clamps on the front may be provided with a cover depending on
specifications. In that case, remove the cover before adjusting the solenoid screws.
Cover
Remove the
screws
(
2
)
.
