HS-1RL User’s Manual Page 47
Composite Code
GS 1 Composite Code
Linear codes are combined with a unique 2D composite component to form a new class
called GS1 Composite symbology. GS1 Composite symbologies allow for the co-
existence of symbologies already in use.
Default = Disabled.

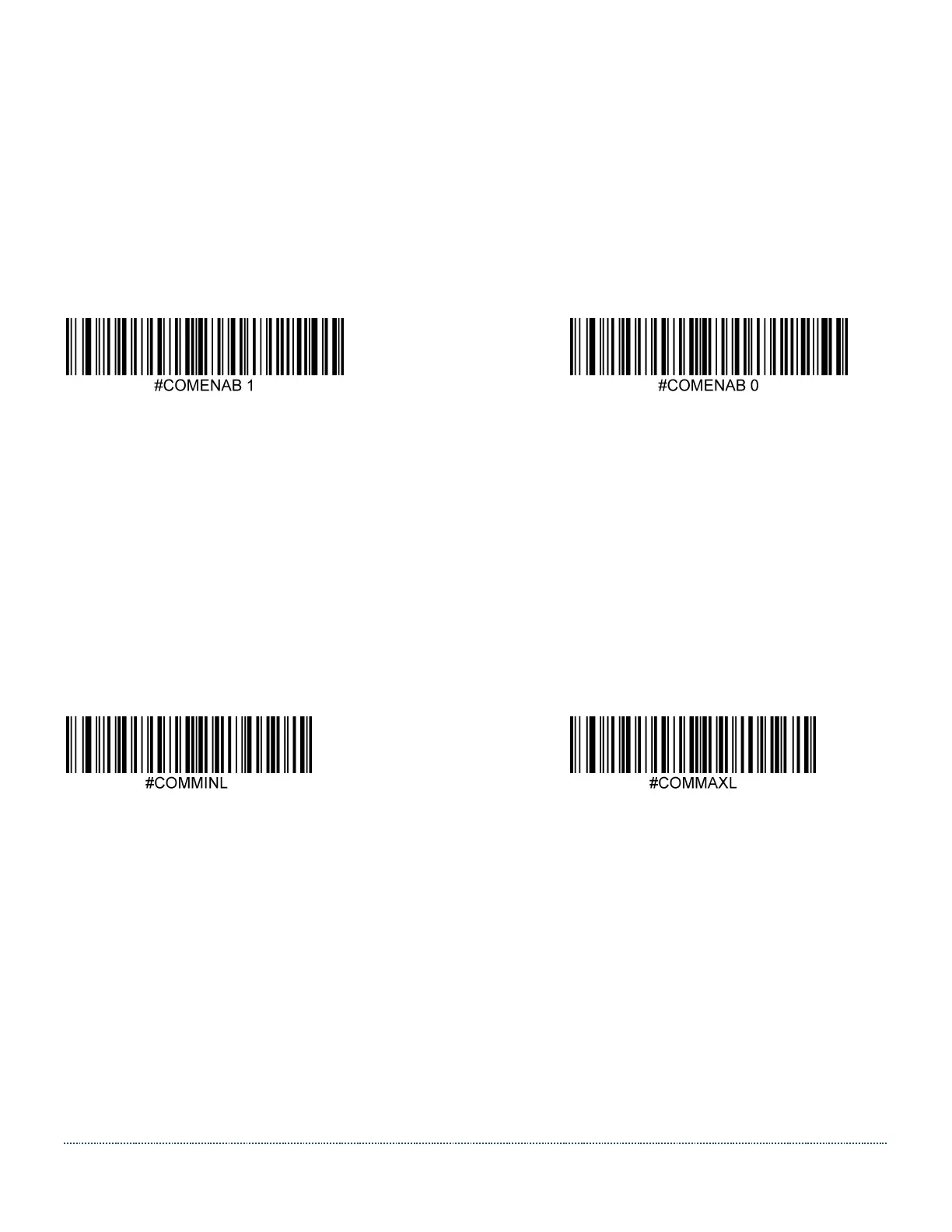

Enable * Disable
Composite Code Minimum and Maximum Length
Use the following commands in combination with numerical values to set the minimum
and maximum length.
The minimum and maximum length for this barcode can be set either by sending the serial
command shown under the barcodes below with a value between 1 and 2435, or by
building a menu command barcode.
Default minimum length = 1. Default maximum length = 2435.
Composite Code Minimum Length Composite Code Maximum Length
