HS-1RL User’s Manual Page 52
Matrix 2 of 5 Minimum and Maximum Length
Use the following commands in combination with numerical values to set the minimum
and maximum length.
The minimum and maximum length for this barcode can be set either by sending the serial
command shown under the barcodes below with a value between 1 and 55, or by building
a menu command barcode.
Default minimum length = 4. Default maximum length = 55.

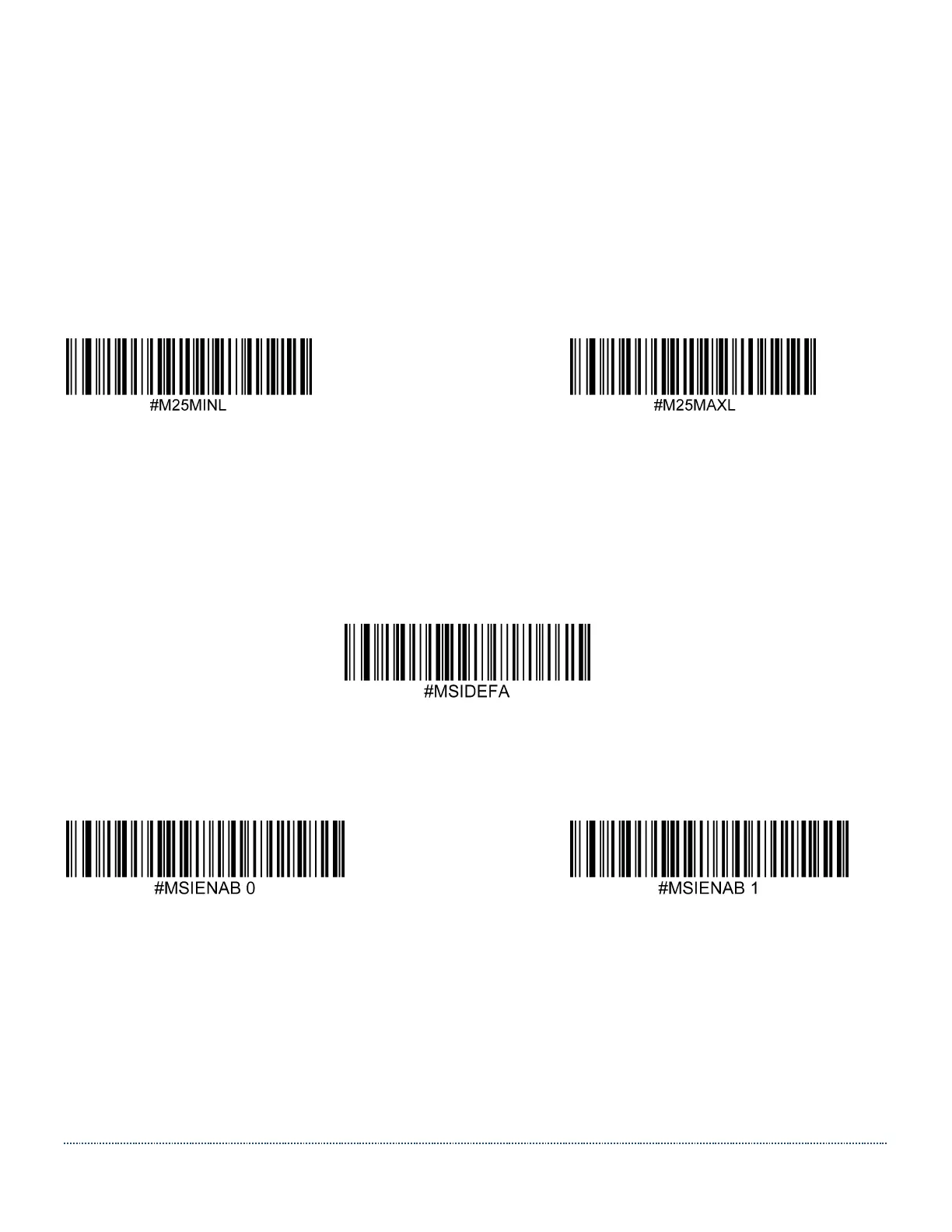

Matrix 2 of 5 Minimum Length Matrix 2 of 5 Maximum Length
MSI
MSI Defaults
Set all MSI settings to their default configuration with this code.
MSI On/Off
Scan one of the codes below to enable or disable MSI. Default = Disabled.
* Disable Enable
MSI Minimum and Maximum Length
Use the following commands in combination with numerical values to set the minimum
and maximum length.
The minimum and maximum length for this barcode can be set either by sending the serial
command shown under the barcodes below with a value between 4 and 48, or by building
To Next Page
