Replacing the Presser Foot Cam (2)

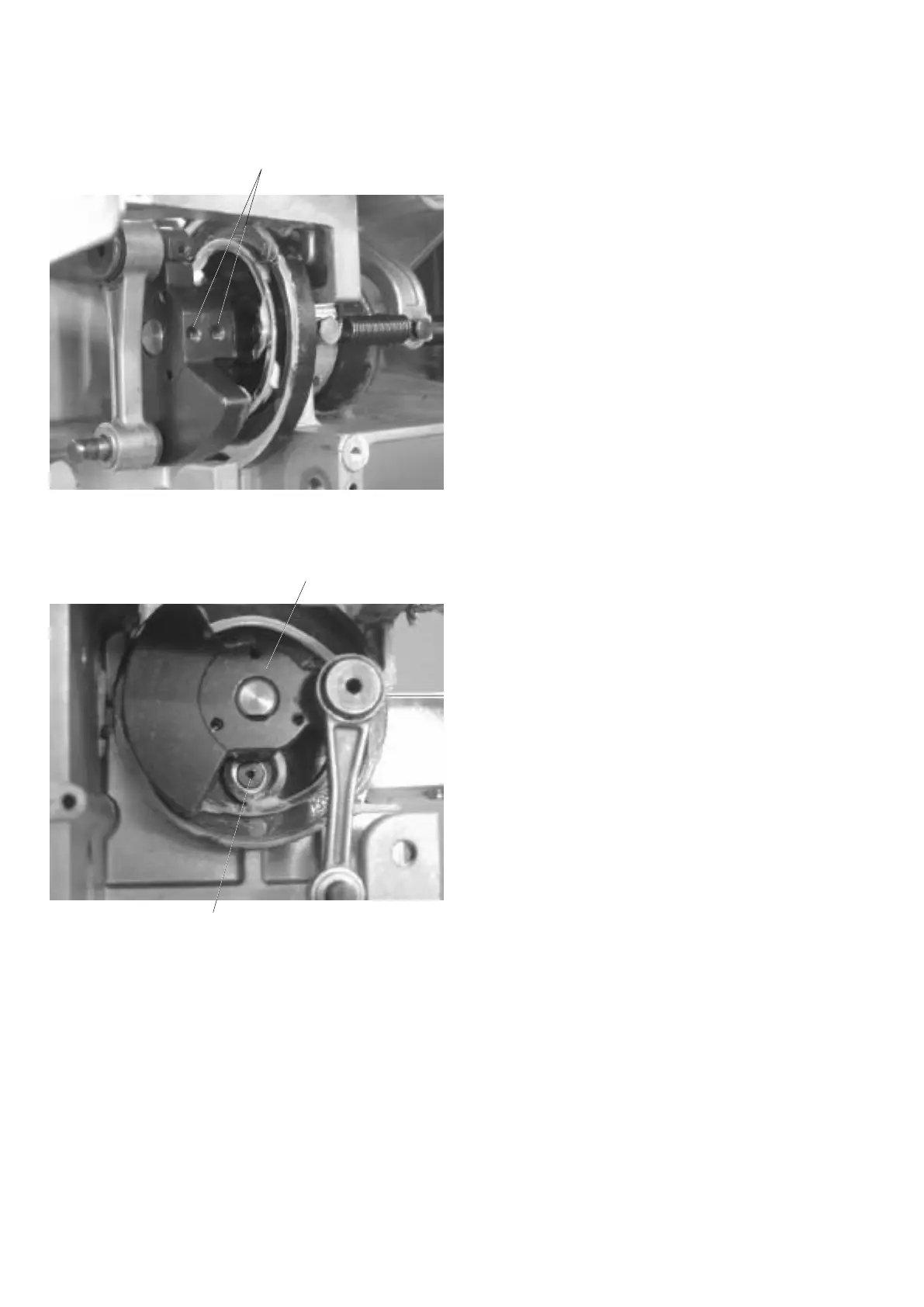

5 Loosen the setscrews C (2 pcs.).
6 Remove the setscrew B.
Pull the crank out to the front to remove it.
Setscrew C
Crank (unit)
Setscrew B
5. Loosen the setscrews C (2pcs.).
6. Remove the setscrew B.
Pull the crank out to the front to remove it.
Replacing the Presser Foot Cam (2)
