Janome MB-7e - Replacing the Thread Catcher

25
Replacing the Thread Catcher
To remove:
1. Remove spool stand, head set right cover (unit), right
cover, left cover, moving head. (see page 4)
2. Disconnect the thread catcher connector.
Remove the setscrews A (2 pcs.), setscrew B and the
thread catcher.
To attach:
3. Connect the thread catcher connector.
Tighten the setscrews A and setscrew B while
pressing the thread catcher unit in the direction of
arrows as illustrated.
4. Adjust the thread catcher (see page 38).
5. Attach the removed parts.

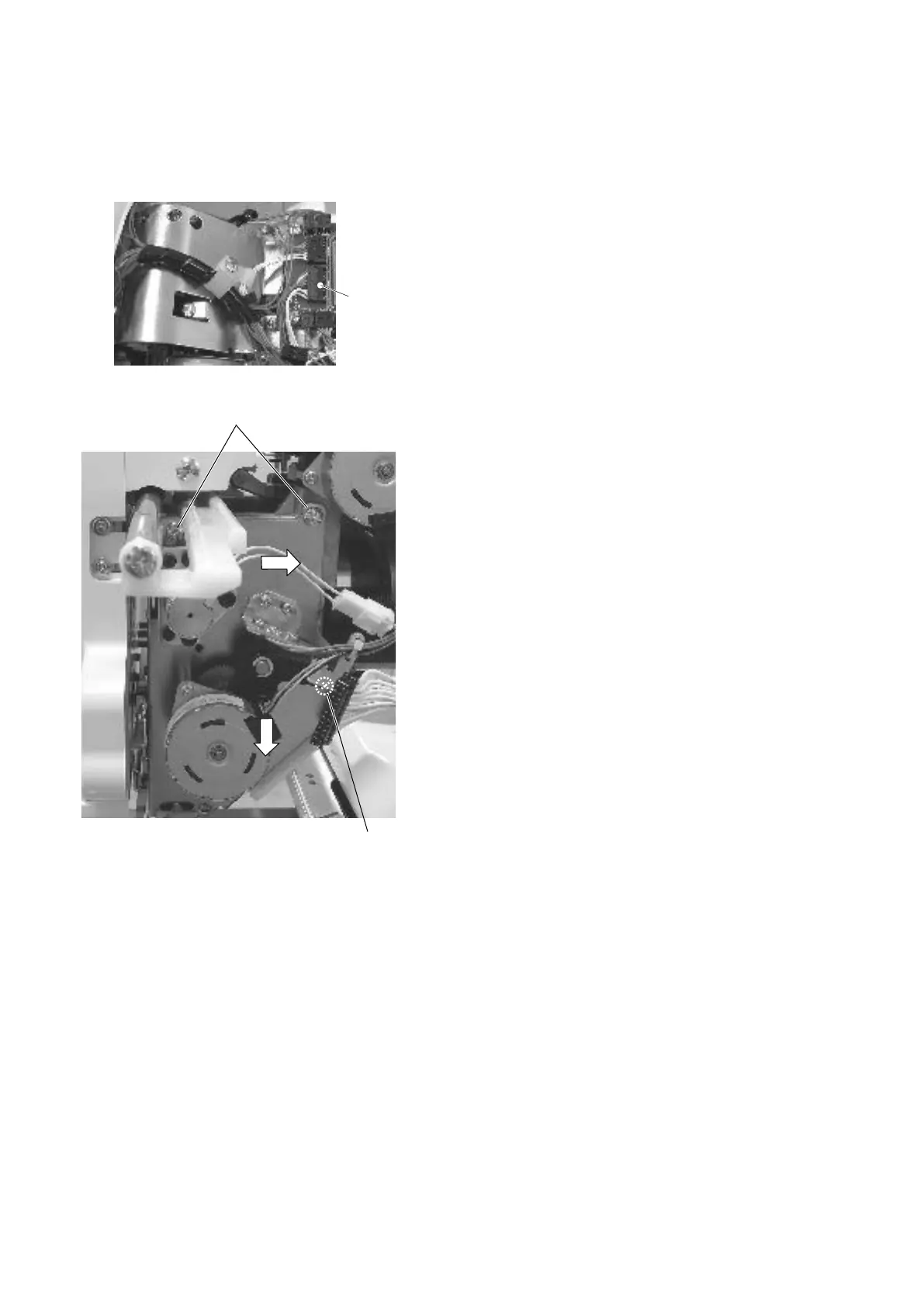

Setscrew A
Connector
Setscrew B
