Janome MB-7e - Replacing the Moving Head (1)

29
Replacing the Moving Head (1)

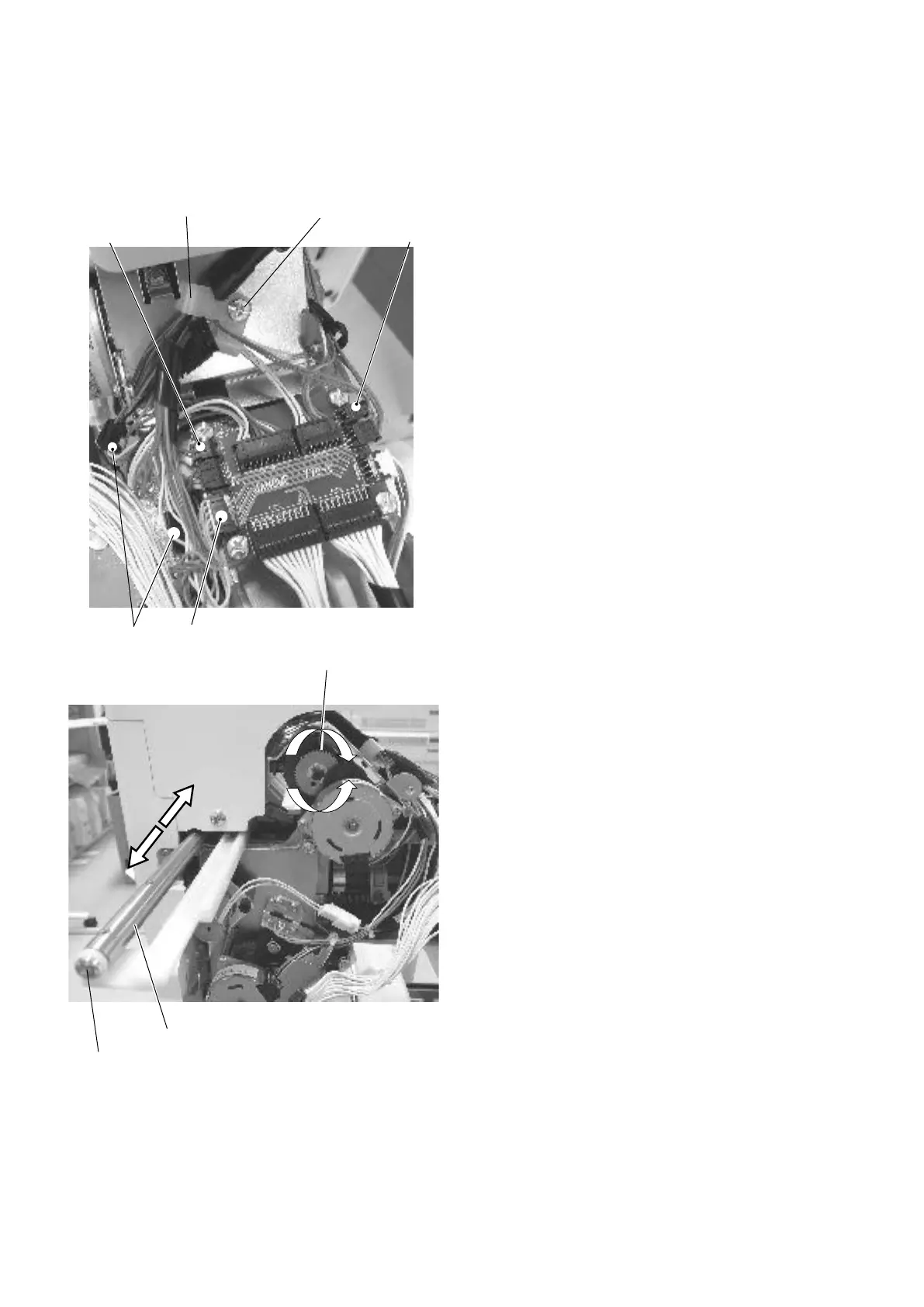

To remove:
1. Remove the spool stand, head set right cover (unit),
right cover and left cover.
2. Disconnect the connectors. Remove the
setscrew of the cord clamp.
3. Remove either the left or right side of stopper screw on
the rail shaft.
4. Turn the idler gear to move the moving head to the end
of the rail shaft with the stopper screw removed.
Support the moving head securely while removing the
moving head so as not to fall.
To attach:
5. Attach the moving head. Tighten the stopper screw.
Setscrew
Connector
ConnectorConnector
Idler gear
Stopper screw
Rail shaft
Connector
Cord clamp
