41
0.05 to 0.2 mm

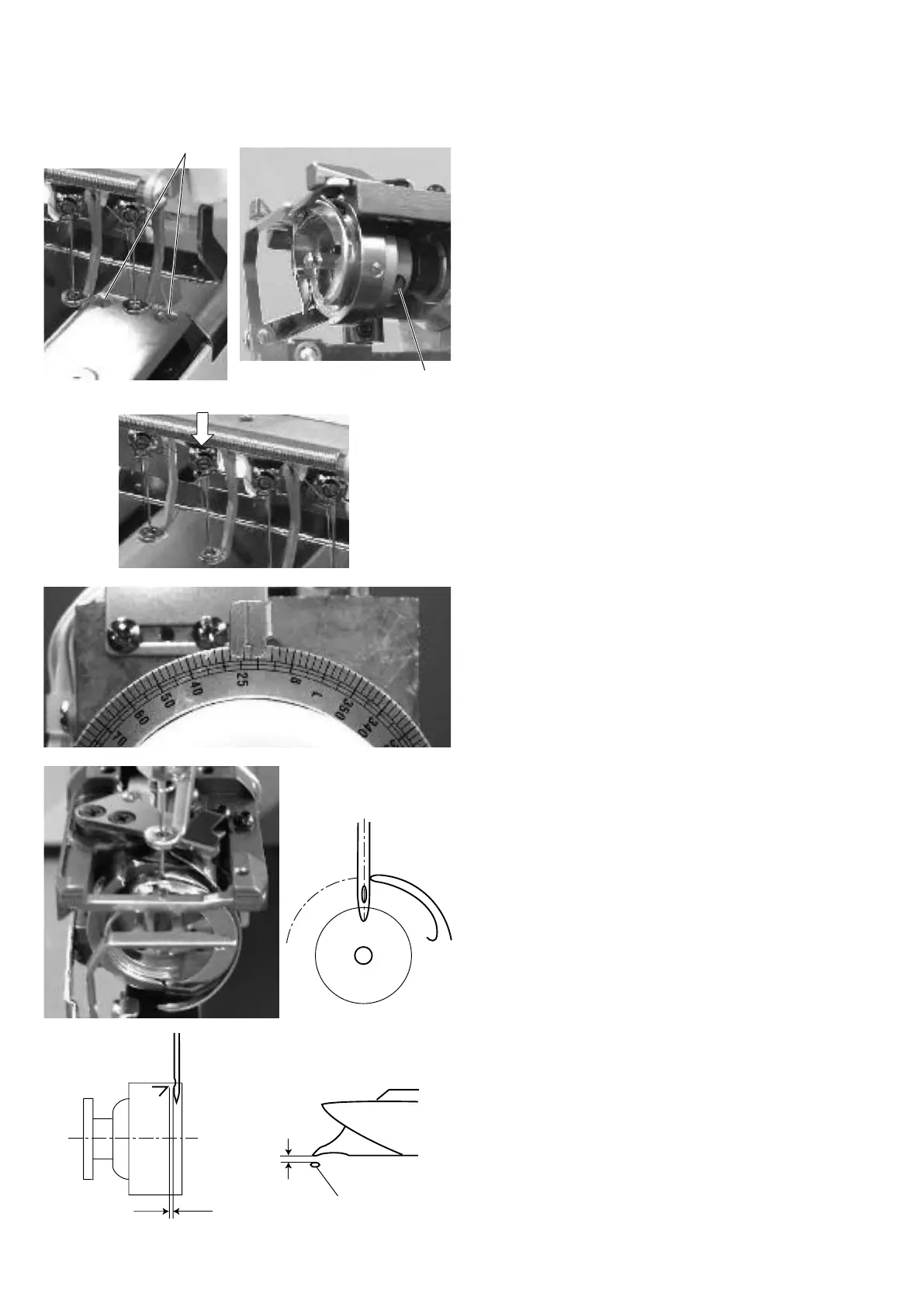

Adjusting the Hook Timing
1. Remove the setscrews A (2pcs.) and needle plate.
2. Loosen the setscrews (3 pcs.) on the hook.
3. Select No. 3 needle bar in the Ready to Sew mode
(see the instruction book) and push the needle bar
down.
4. Turn the handwheel to set the index disk at 21º.
NOTE:
To prevent the needle from hitting the hook body, hold the
hook with the hook point up while turning the handwheel.
5. Turn the hook to align the hook point with the right
side of the needle (use DBxK5Q1NY needle).
NOTE:
Maintain a clearance between the needle and hook point
within 0.05 to 0.20 mm.
6. Tighten the setscrews (3 pcs.) securely.
7. Check the position of the hook stopper (see page 42).
Setscrew A
Setscrew on the hook
Needle
To Next Page
