Base Cover
To remove:

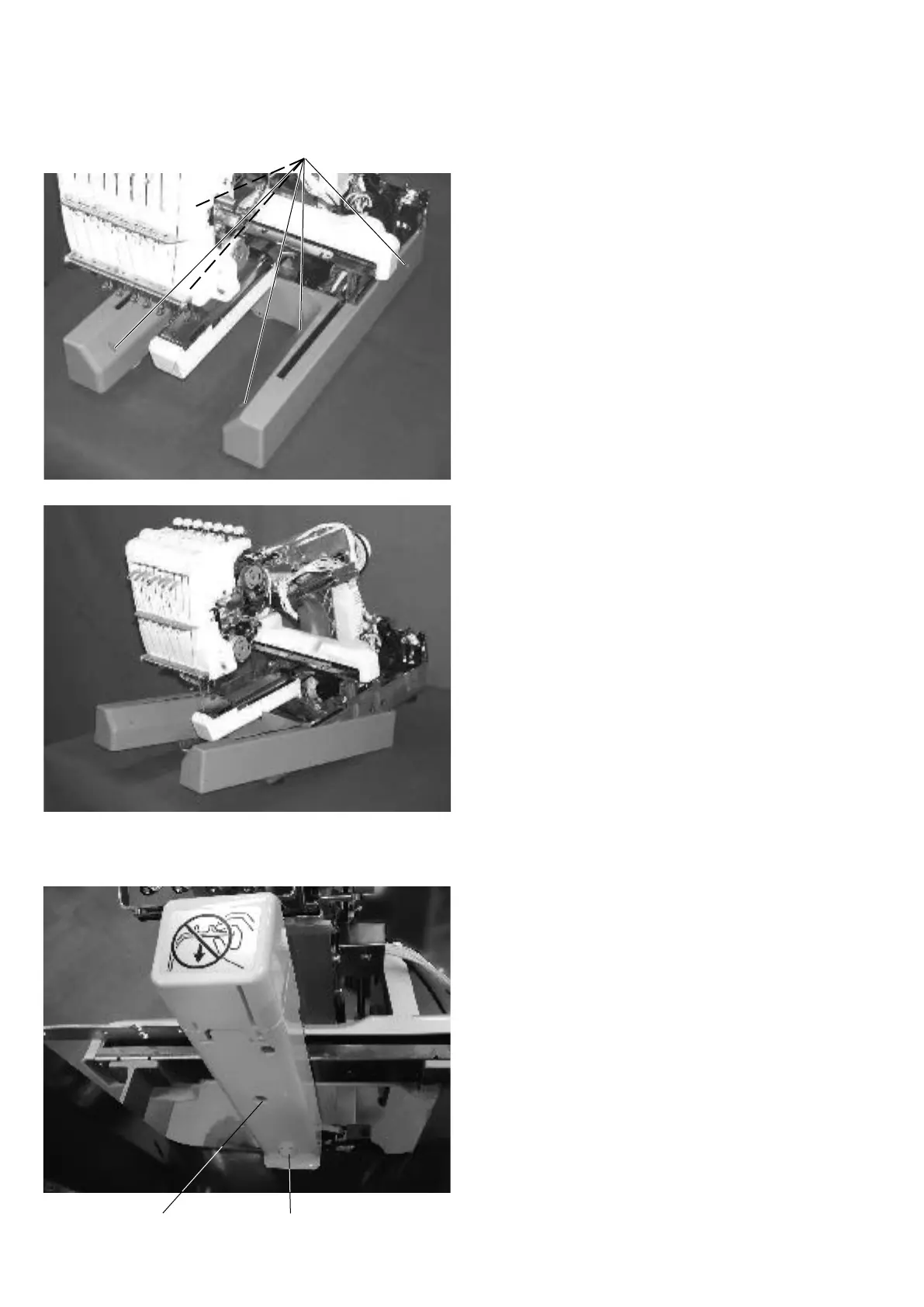

1. Remove the setscrews A (6 pcs.).
2. Lift the back of the machine and remove the base cover
from the base cover.
To attach:
3. Attach the machine into the base cover.
4. Tighten the setscrews A (6 pcs.) securely.
Replacing the Base Cover and Bed Cover
Bed Cover
To remove:
1. Remove the setscrew B and setscrew C. Remove the
bed cover.
To attach:
2. Attach the bed cover with the setscrew B and setscrew
C.
Setscrew A
Setscrew B Setscrew C
