Replacing the Motor Belt
1. Remove the spool stand, head set right cover and
left cover (see pages 4 to 6).
2. Remove the setscrews A (2 pcs.) and the pointer.
3. Remove the setscrews B (3 pcs.) and DC motor.
4. Replace the motor belt. Attach the motor and motor
belt.
5. Adjust the motor belt tension (see the previous
page).
6. Attach the parts removed in step 1.

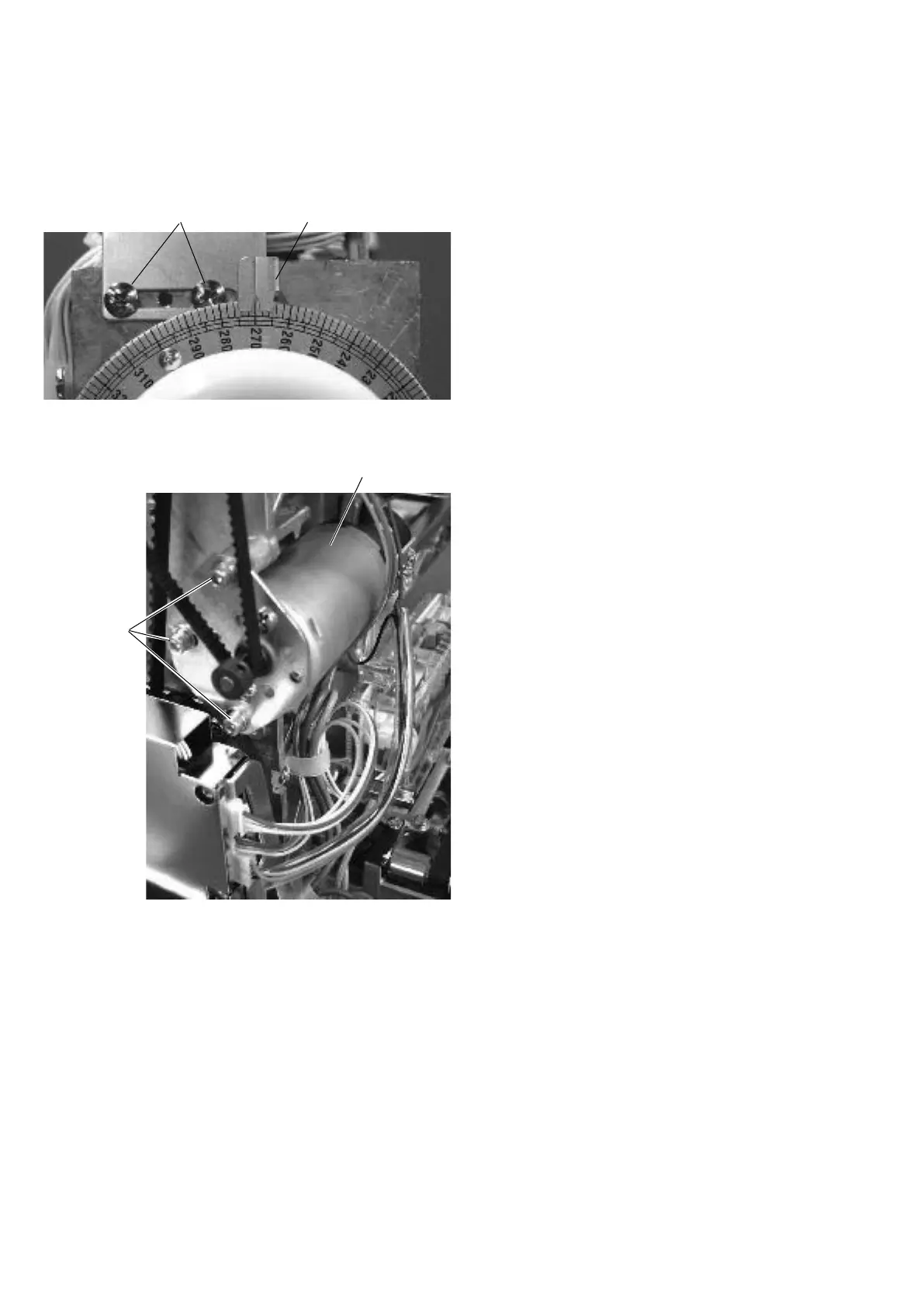

Setscrew A
Pointer
DC motor
Setscrew B
