53

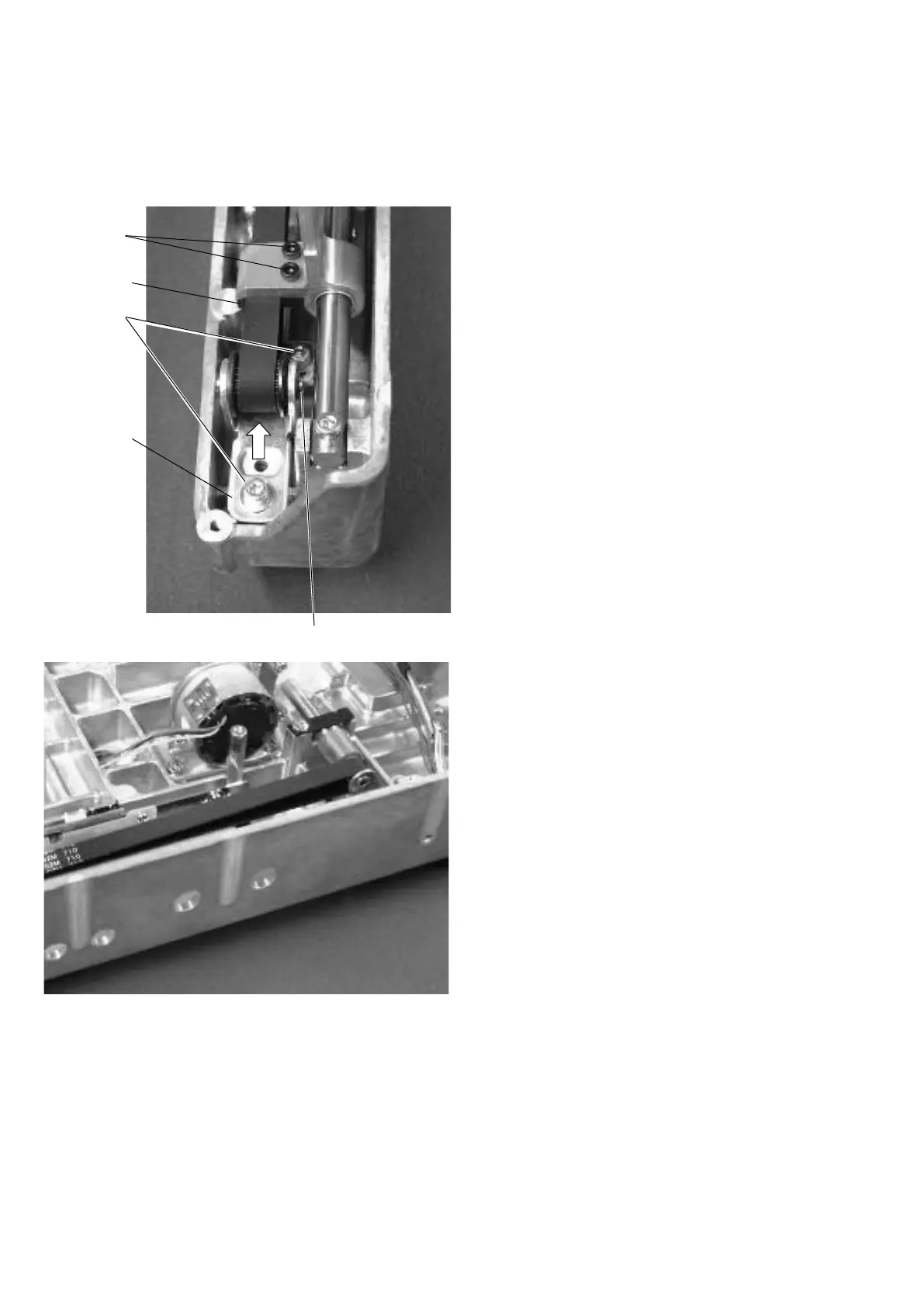

Replacing the Y-carriage Belt
1. Remove the spool stand, head set right cover and
left cover (see pages 4 to 6).
2. Remove the setscrews B (2 pcs.) and the Y-belt holder.
3. Loosen the setscrews A (2 pcs.) and shift the Y-belt
pulley in the direction of the arrow.
4. Remove the E-ring and pull the Y-belt pulley shaft to
remove the Y-belt pulley.
5. Replace the Y-carriage belt.
6. Attach the parts removed in steps 2 to 5.
7. Adjust the Y-carriage belt tension (see the previous
page).
8. Attach the parts removed in step 1.
Setscrew B
Y-belt holder
Setscrew A
E-ring
Y-belt pulley shaft
Y-belt pulley
To Next Page
