Adjusting a Play in the Moving Head
1. Remove head set right cover (unit) (see page 5).
2. Check the play of the moving head by pushing the head
in the direction of the arrows.
If there is a detectable play, loosen the
setscrew and tighten it while pressing the adjusting
roller against the needle drop adjusting rail.
3. Adjust the needle drop position (see page 31).
4. Attach the head set right cover (unit).

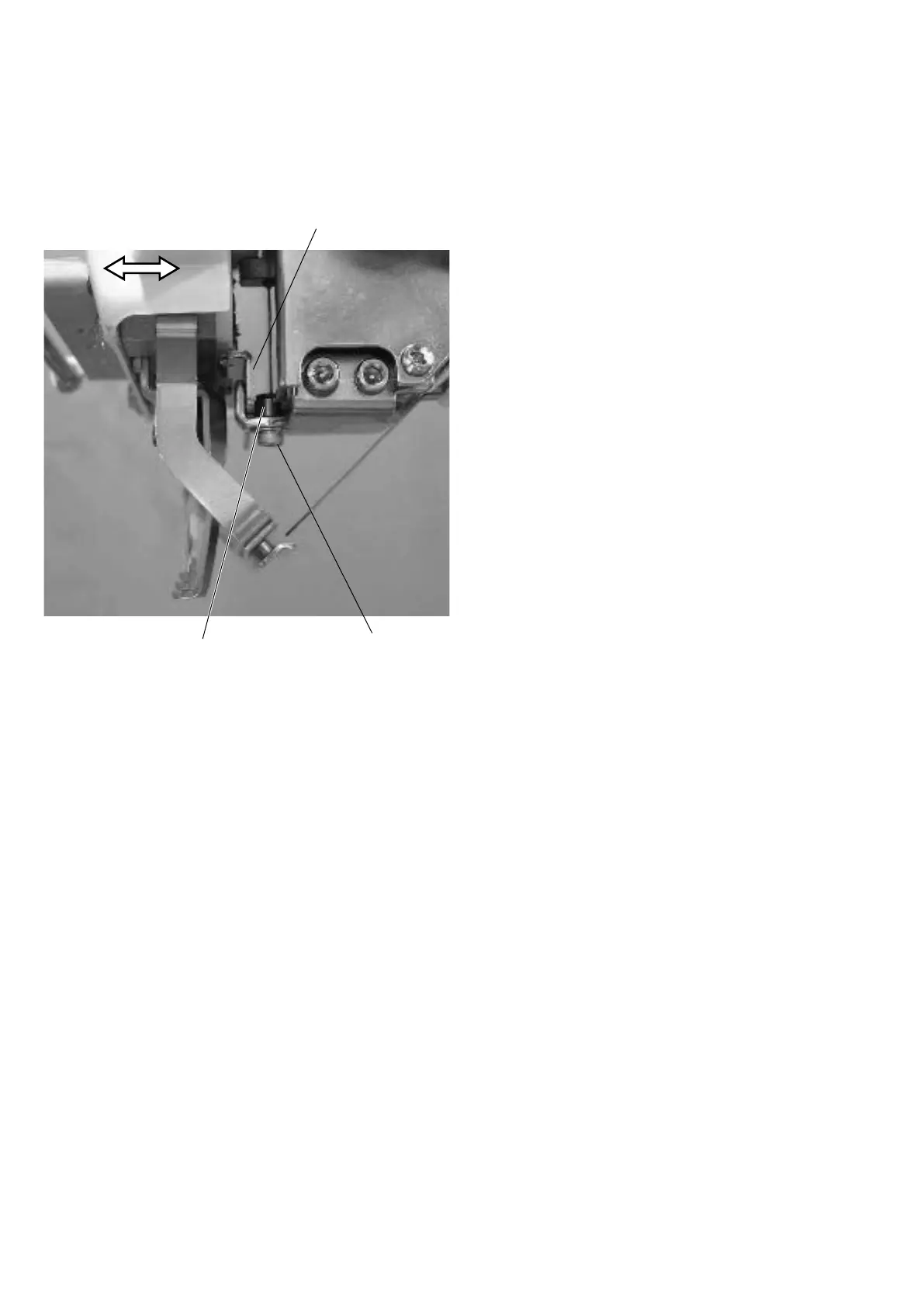

Needle drop adjusting rail
Adjusting roller
Setscrew
