Replacing and Adjusting the Presser Foot (2)

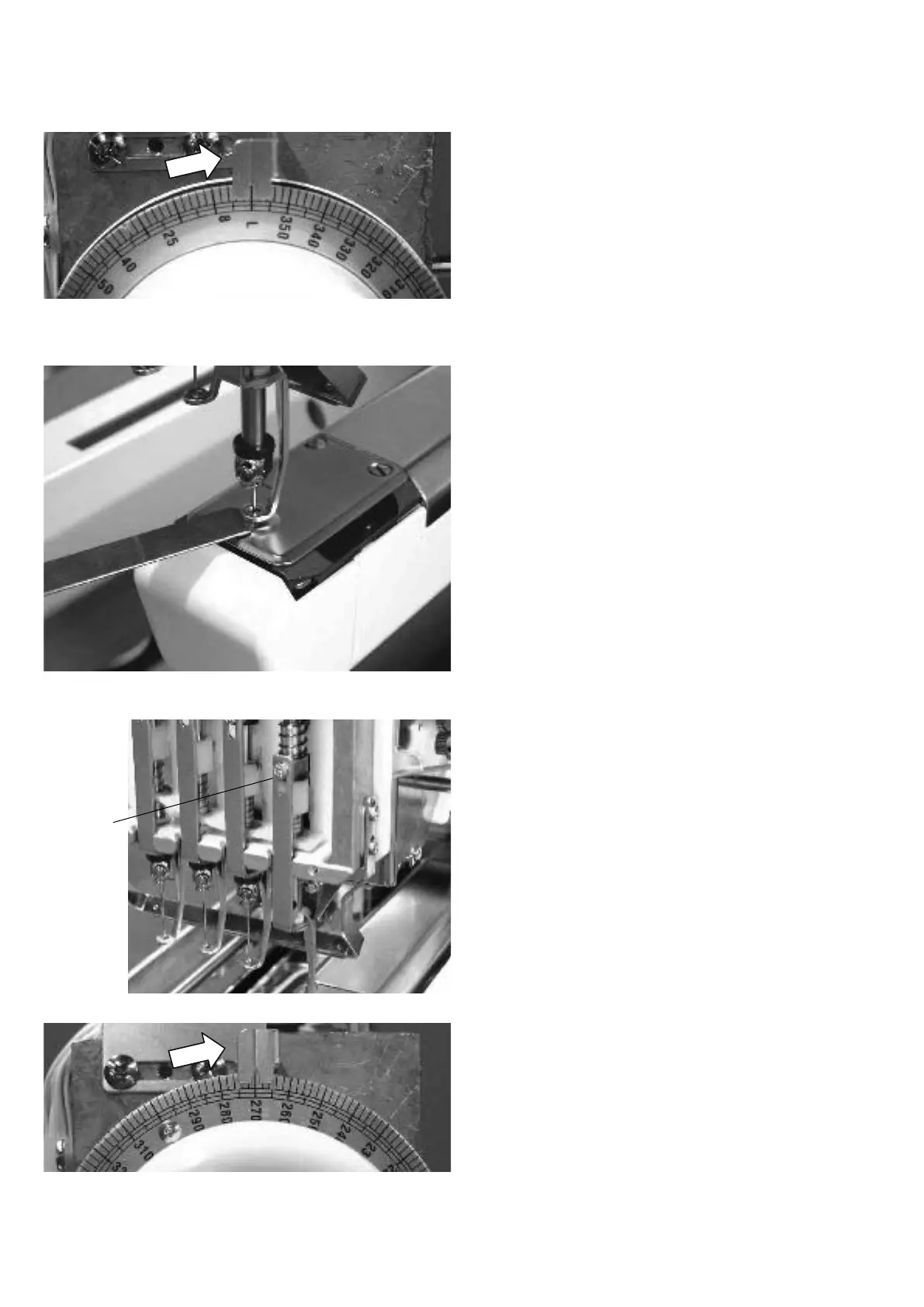

7. Turn the handwheel to set the index disk at 0º (L).
8. Insert the 1.2 mm thick gauge between the needle plate
and the presser foot.
9. Tighten the setscrew.
10. Turn the handwheel to reset the index disk at 270º.
11. Attach the removed parts.
Setscrew
