Janome MB-7e - Replacing the Base Cover and Bed Cover; Base Cover; Bed Cover

5
To remove:
1. Turn the RCS knob counterclockwise to remove it.
2. Remove caps, and setscrews A (2 pcs.).
Remove the head set right cover (unit).
3. Disconnect the Printed circuit board L2 connector and
printed circuit board K connector.
To attach:
4. Connect the Printed circuit board L2 connector and
Printed circuit board K connector.
5. Attach the head set right cover (unit) with the
setscrews A (2pcs.). Attach the caps (2pcs.).
6. Turn the RCS knob clockwise to attach the RCS knob.

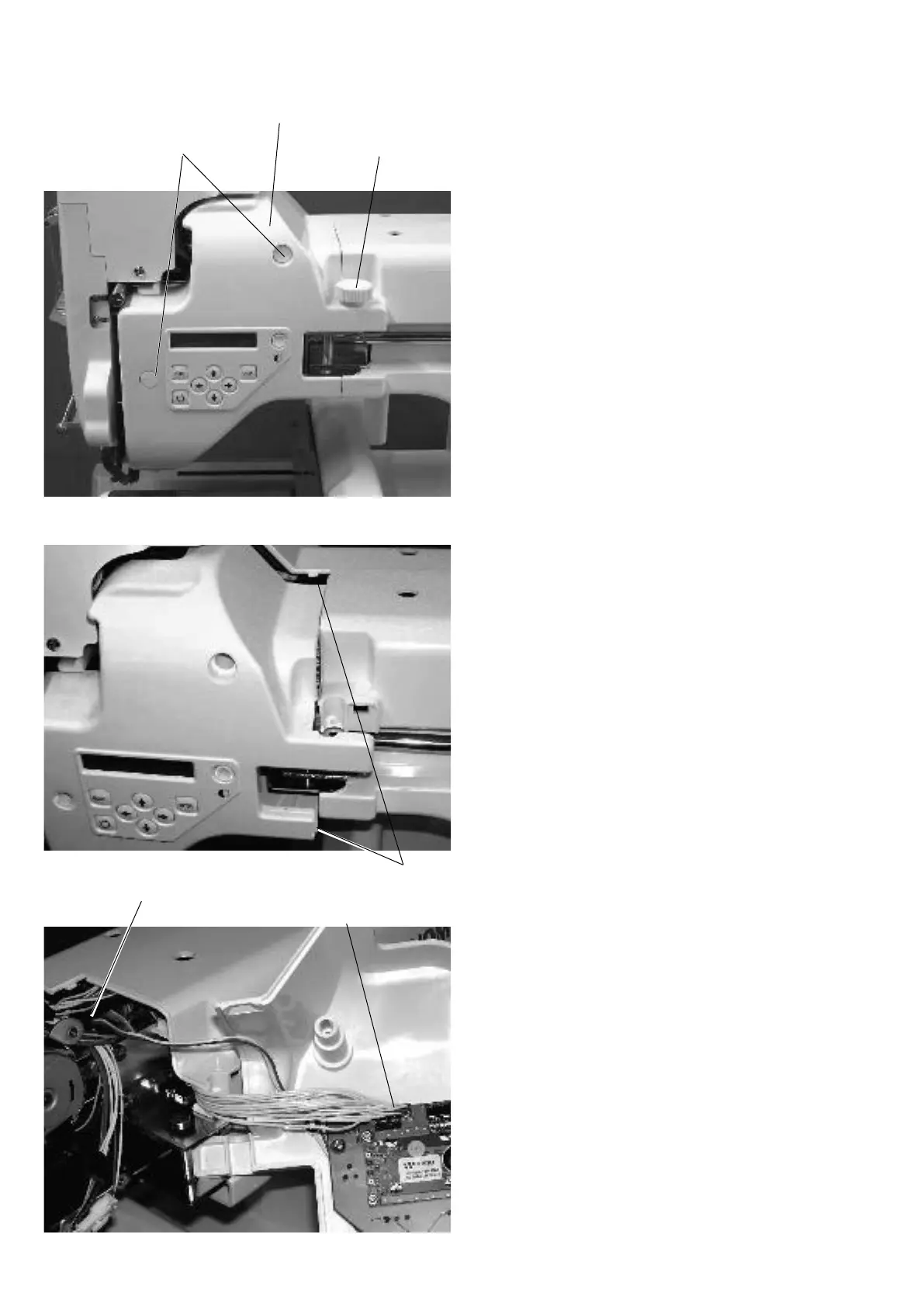

Replacing the Head set right cover (unit)
RCS knob
Cap, Setscrew A
Hook
Printed circuit board L2 connector
Printed circuit board K connector
Head set right cover (unit)
