Replacing the Thread Take-up Lever

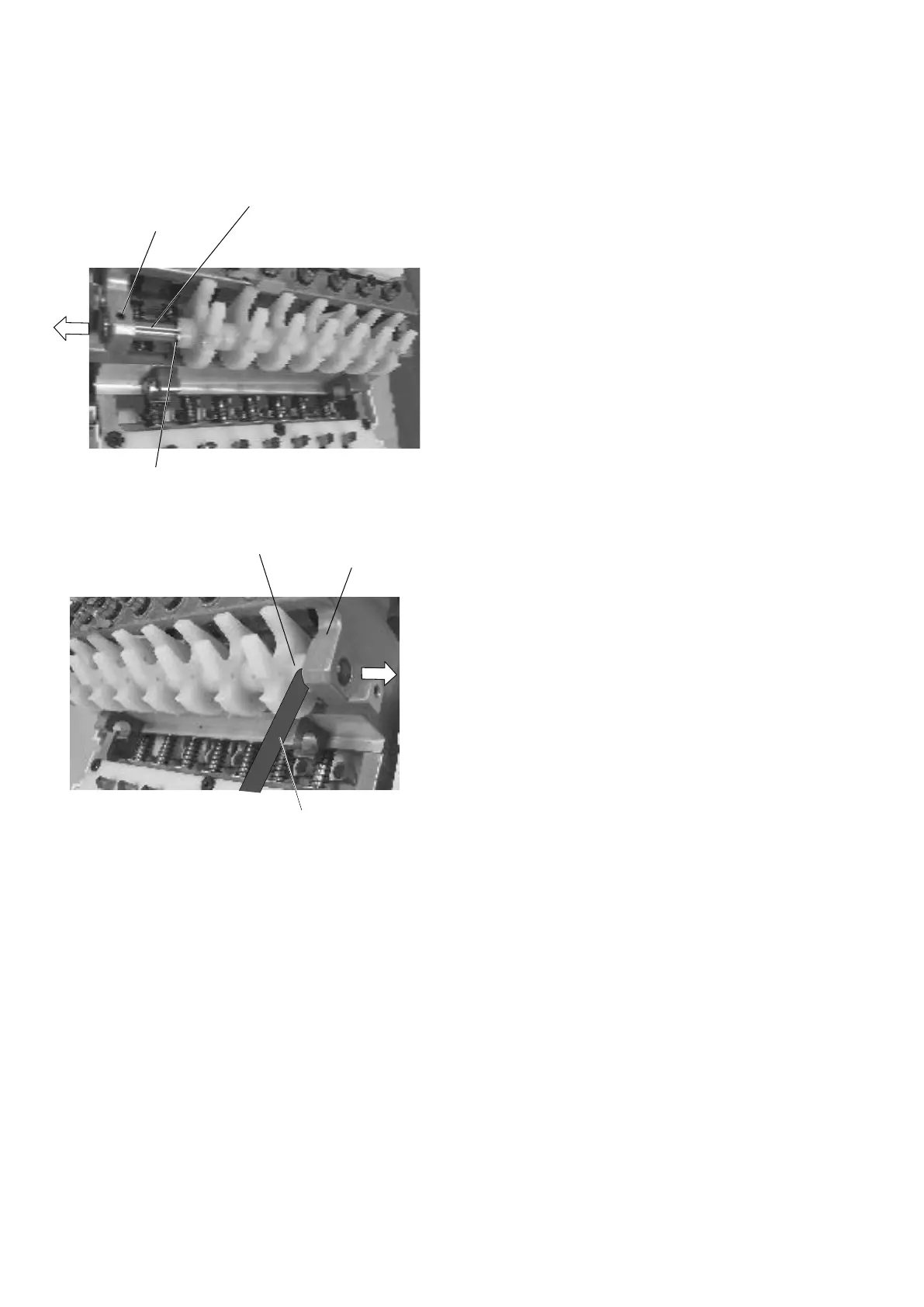

1. Remove moving head (see pages 29 and 30).
2. Remove the E-ring.
3. Loosen the setscrew on the thread take-up lever shaft.
4. Pull the thread take-up lever shaft out in the direction of
the arrow. Remove the thread take-up lever to replace.
5. Replace the thread take-up lever.
6. Attach the E-ring.
7. Insert a 0.2 mm thick gauge between the
moving head case and thread take-up lever.
Tighten the setscrew while pressing the thread take-up
lever shaft in the direction of the arrow.
8. Attach the moving head.
Setscrew
E-ring
Moving head case
Thread take-up lever
0.2 mm thick gauge
Thread take-up lever shaft
