Replacing the Jump Solenoid

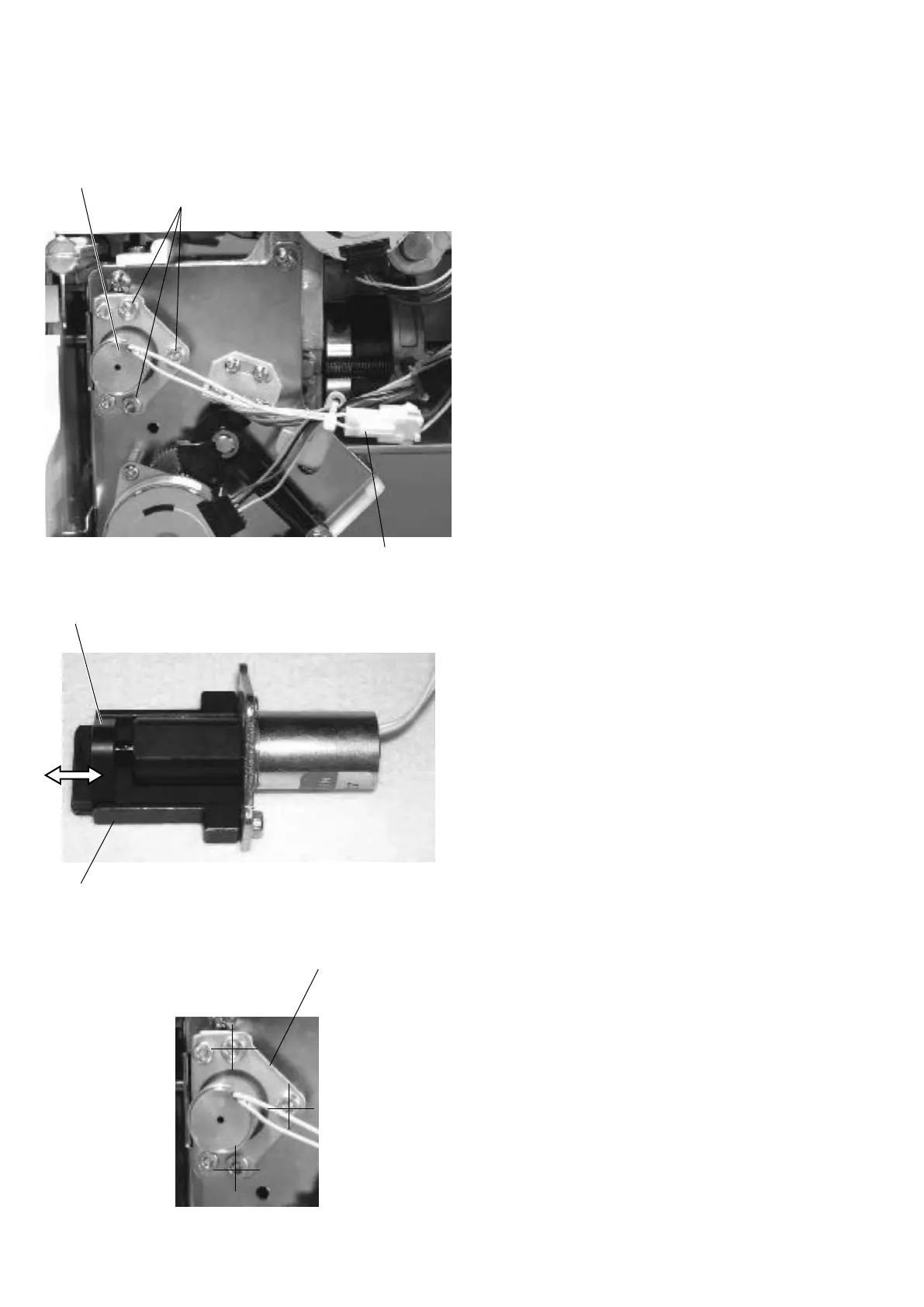

1. Remove the head set right cover (unit)(see page 5).
2. Disconnect the connector. Remove the setscrews (3
pcs.) and jump solenoid.
3. The slope cam should slide on the slope cam guide
smoothly. Clean the solenoid if there is any lint or dust
on it.
4. Attach the jump solenoid to the machine.
Tighten the setscrews. The setscrews should be
positioned at the center of holes as shown.
5. Attach the head set right cover (unit).
Setscrew
Connector
Slope cam
Slope cam guide
Solenoid bracket
Jump solenoid
