Replacing the DC Motor
1. Remove the spool stand, head set right cover and
left cover (see pages 4 to 6).
2. Disconnect the motor connector. Remove the three
setscrews A and DC motor.
3. Attach the DC motor and tighten the setscrews A (3
pcs.) slightly.
Connect the motor connector.
4. Adjust the motor belt tension (see page 56).
5. Attach the parts removed in step 1.

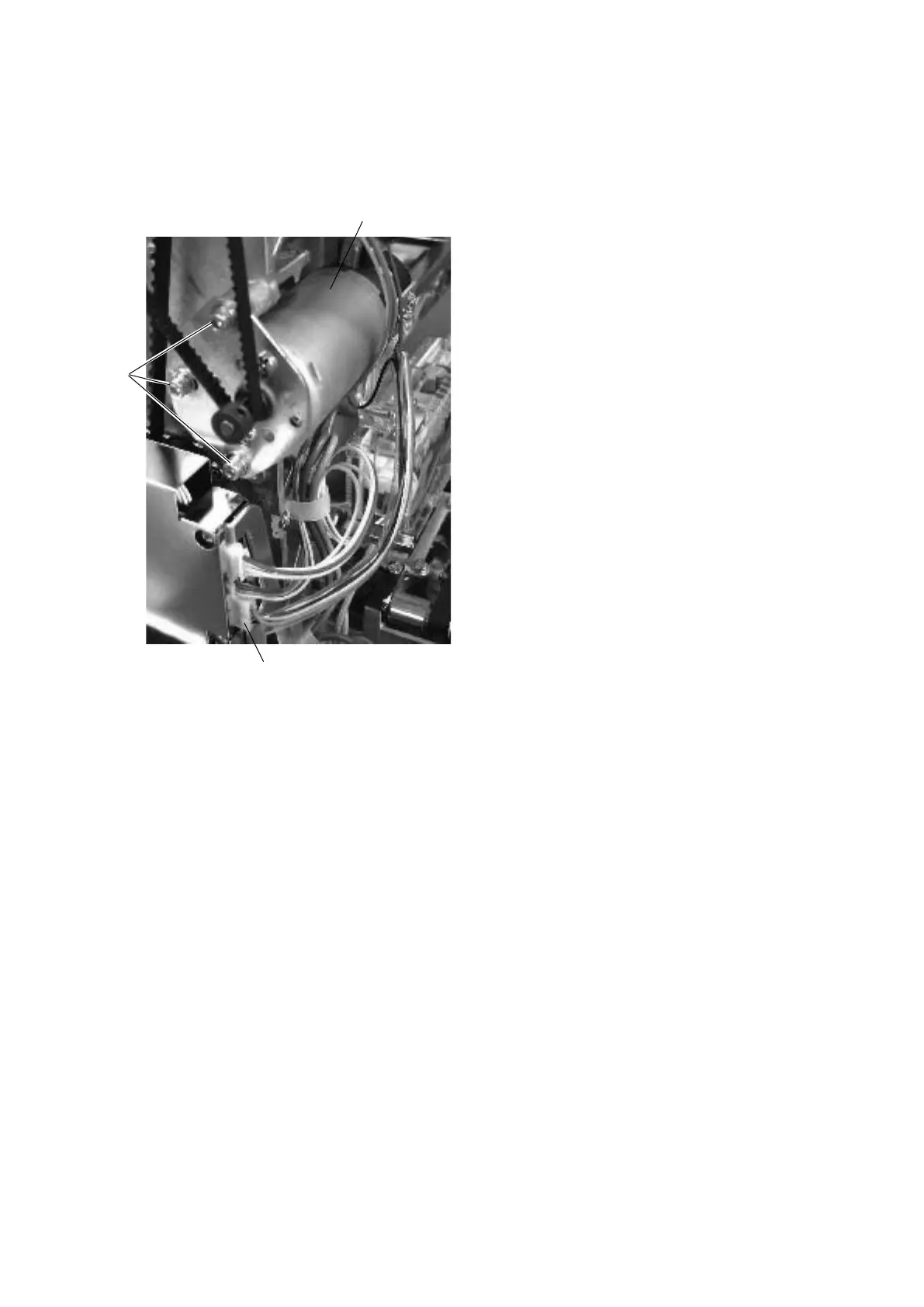

DC motor
Setscrew
A
Motor connector
