SECTION 4 - BOOM & PLATFORM
3121714 4-29

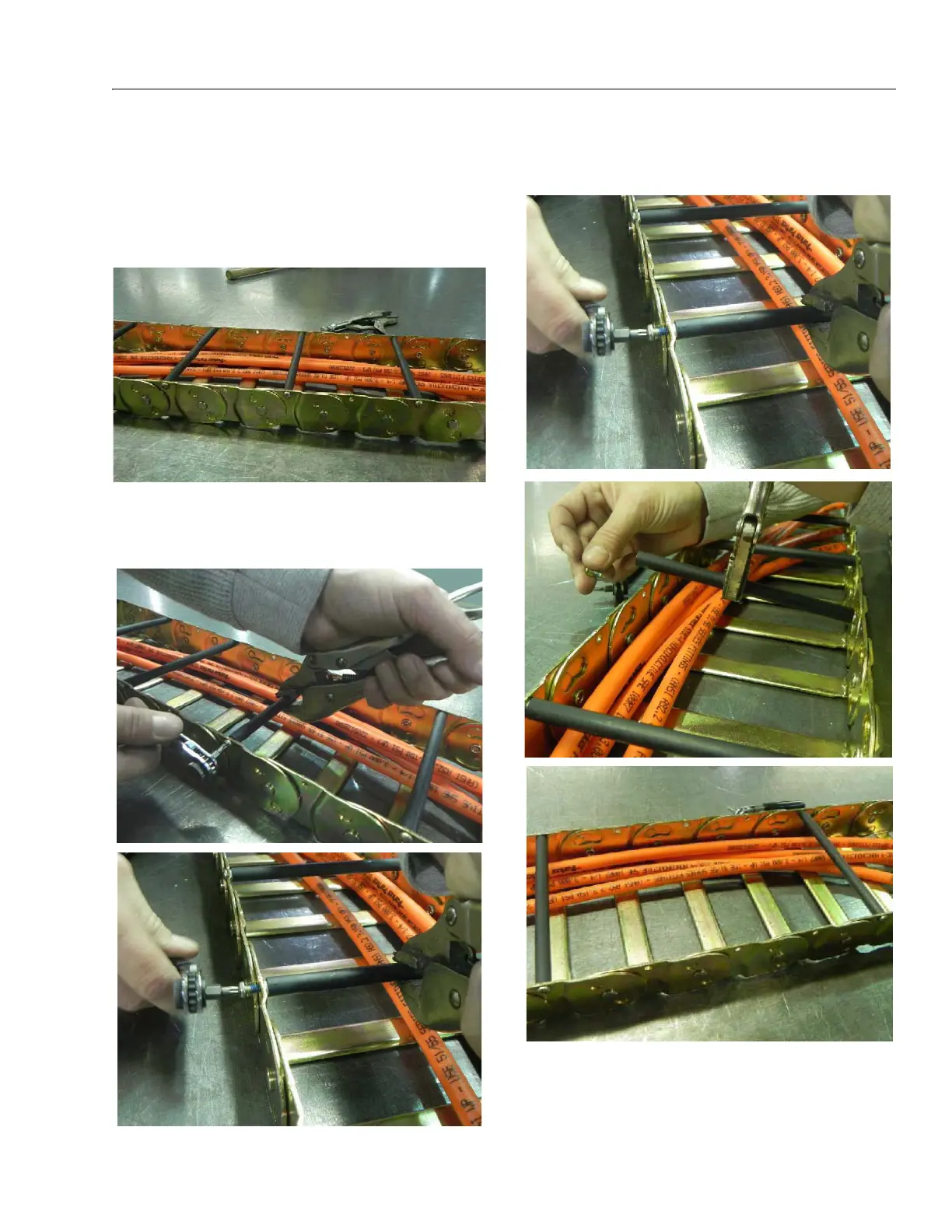

4.12 POWERTRACK MAINTENANCE
Removing a Link
NOTE: Hoses shown in the powertrack are for example only.
Actual hose and cable arrangements will be differ-
ent.
1. Clamp the bar and poly roller tightly so they do not spin
when removing the screw. With a small ¼” ratchet and a
t-20 torx bit, remove the 8-32 x 0.500 screw from one
side.
2. Repeat step 1 and remove the screw from the other side
of track. Remove the bar/poly roller from the pow-
ertrack. .
