JLG E450A - Swing Motor - Exploded View

SECTION 3 - CHASSIS & TURNTABLE
3121714 3-39








(
$
&
%

'


















1. Bolt
2. End Cover
3. Seal Ring
4. Seal Ring
5. Commutator
6. Commutator Ring
7. Manifold
8. Rotor Set
8A. R ot or
8B. St at or Ha lf
8C. Stat or Va ne
8D. St at or Ha lf
9. Wear Plate
10. Drive Link
11. Thrust Bearing
12. Coupling Shaft
13. Inner Bushing
14. Thrust Washer
15. Thrust Bearing
16. Seal
17. Backup Ring
18. Housing
19. Outer Bushing
20. Dirt & Water Seal
21. Not Used
22. Not Used
23. Not Used
24. Not Used
25. Backup Washer

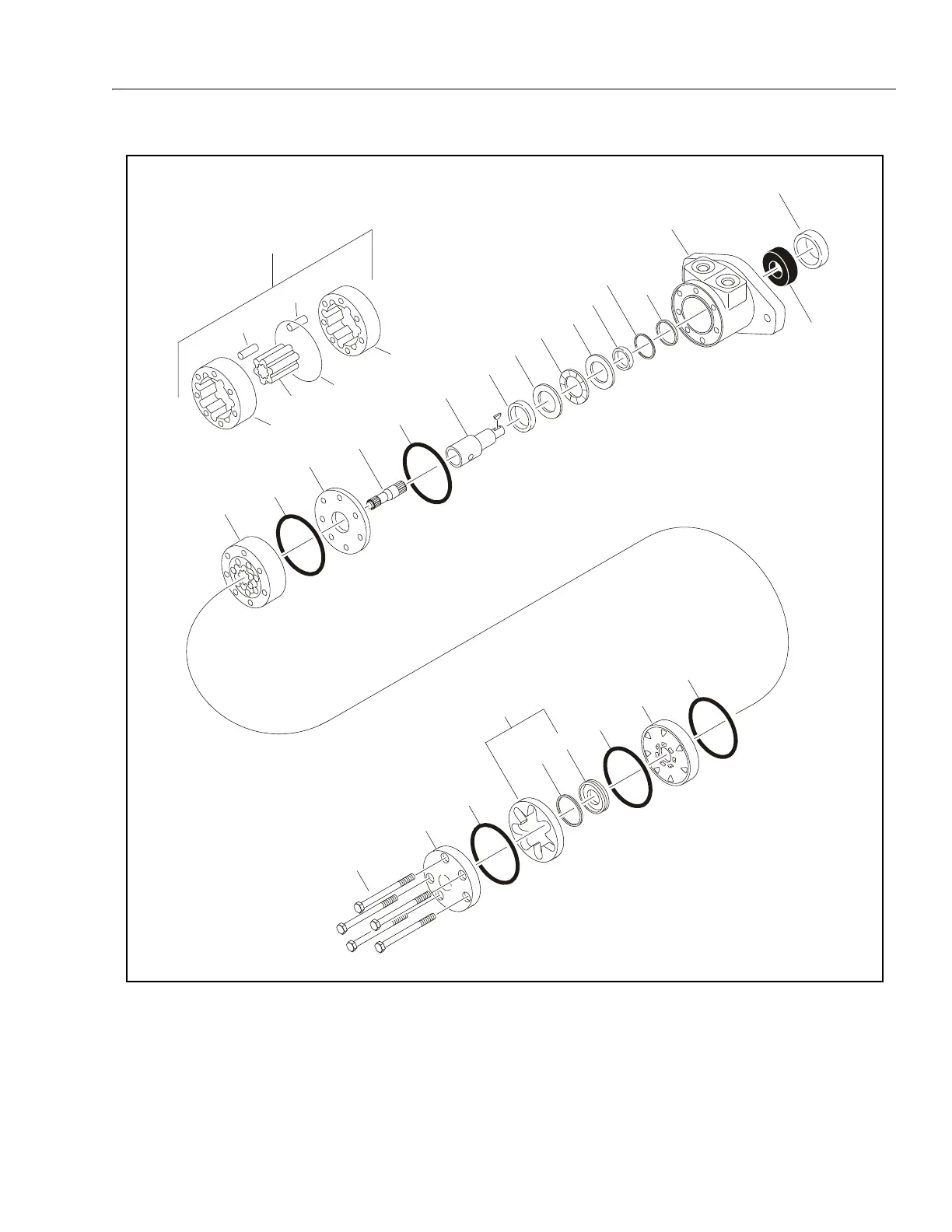

Figure 3-29. Swing Motor - Exploded View
