SECTION 5 - BASIC HYDRAULIC INFORMATION & SCHEMATICS
3121714 5-81
c. Unscrew cylinder head with hook spanner wrench.
Refer Figure 5-67.
6. Attach a suitable pulling device to the cylinder rod end.
EXTREME CARE SHOULD BE TAKEN WHEN REMOVING THE CYLINDER ROD,
HEAD, AND PISTON. AVOID PULLING THE ROD OFF-CENTER, WHICH COULD
CAUSE DAMAGE TO THE PISTON AND CYLINDER BARREL SURFACES.
7. With the barrel clamped securely, apply pressure to the
rod pulling device and carefully withdraw the complete
rod assembly from the cylinder barrel.

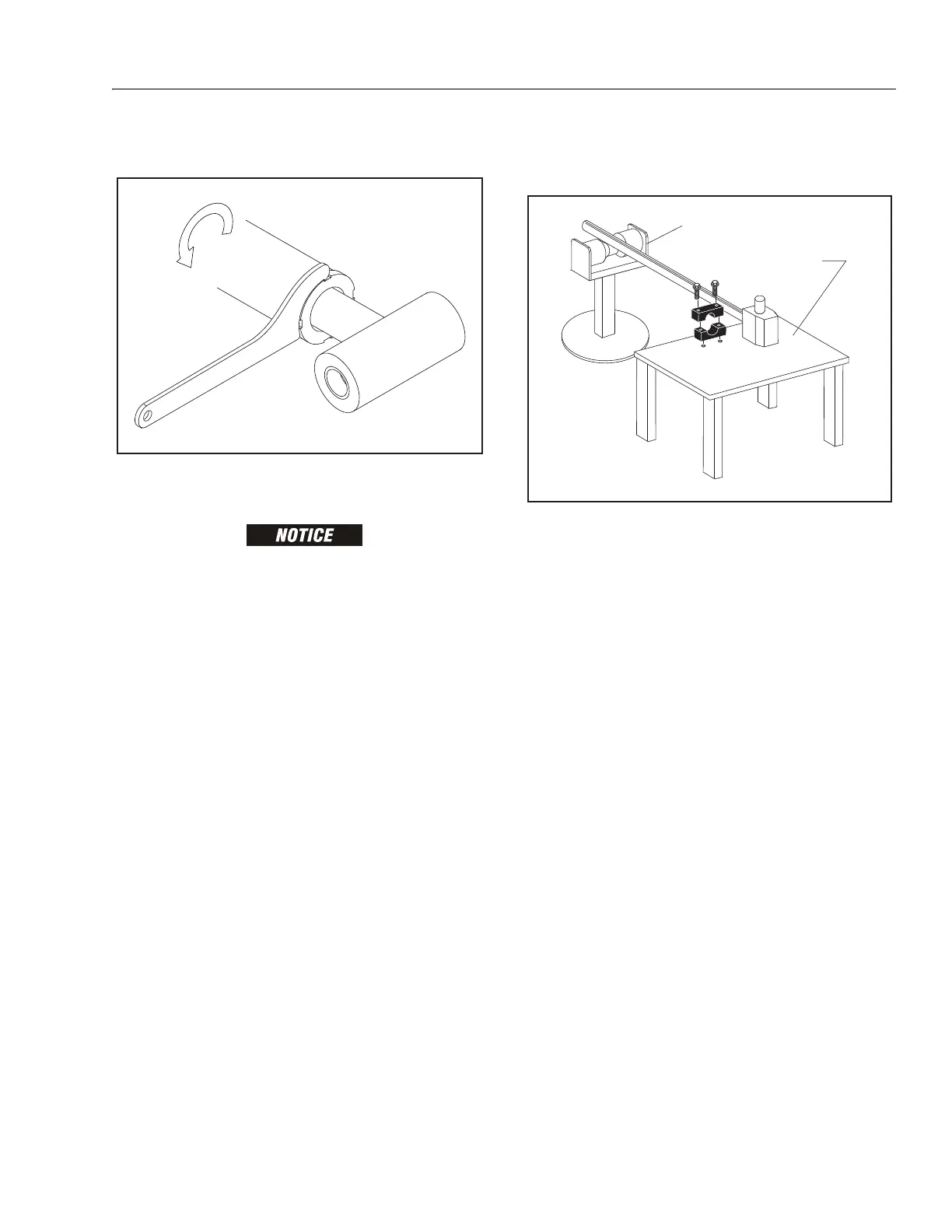

Figure 5-64. Cylinder Head Removal
Figure 5-65. Cylinder Rod Support
