JLG E450A - Steering Installation and Spindle

SECTION 3 - CHASSIS & TURNTABLE
3-12 3121714
1. Steer Cylinder
2. Rod End
3. Nut
4. Shoulder Screw
5. Steer Link
6. Cotter Pin
7. Castle Nut
8. Thrust Washer
9. Lip Seal
10. Bearing Cone
11. Inner Bearing Cup
12. Wheel Stud
13. Hub
14. Lug Nut
15. Outer Bearing Cup
16. Outer Bearing Cone
17. Tanged Washer
18. Castle Nut
19. Dust Cap
20. Cotter Pin
21. Capscrew
22. Angle Sensor Switch

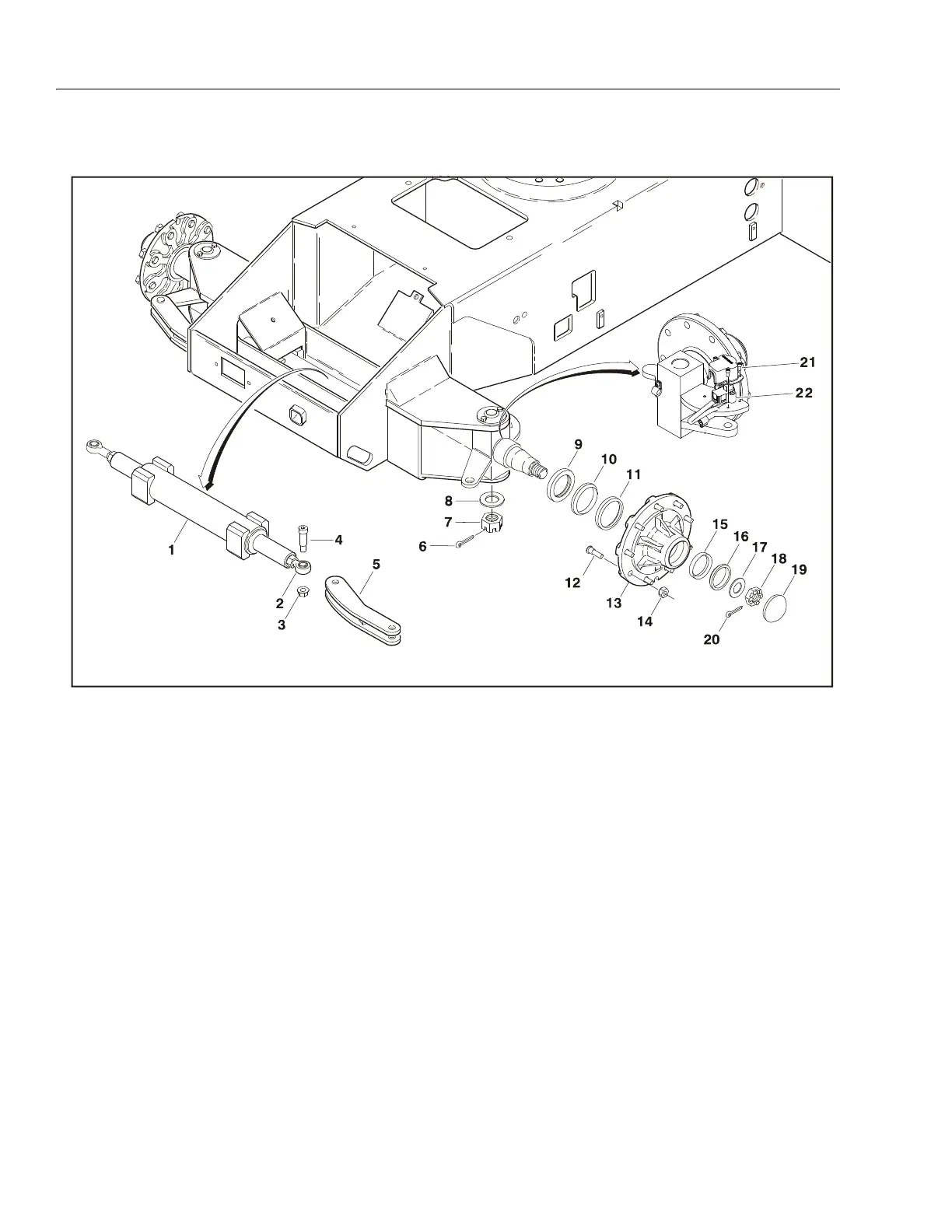

Figure 3-10. Steering Installation and spindle
