JLG E450A - Master Cylinder E;M450 AJ (SN B3000024867 to Present)

SECTION 5 - BASIC HYDRAULIC INFORMATION & SCHEMATICS
5-104 3121714
MAE32870A
1001230303-A
5
5
2
11
9
12
14
15
16
3
14
13
7
10
4*
8
6
5
5
* Torque to 442.5 ft. lbs. (600 Nm)
1

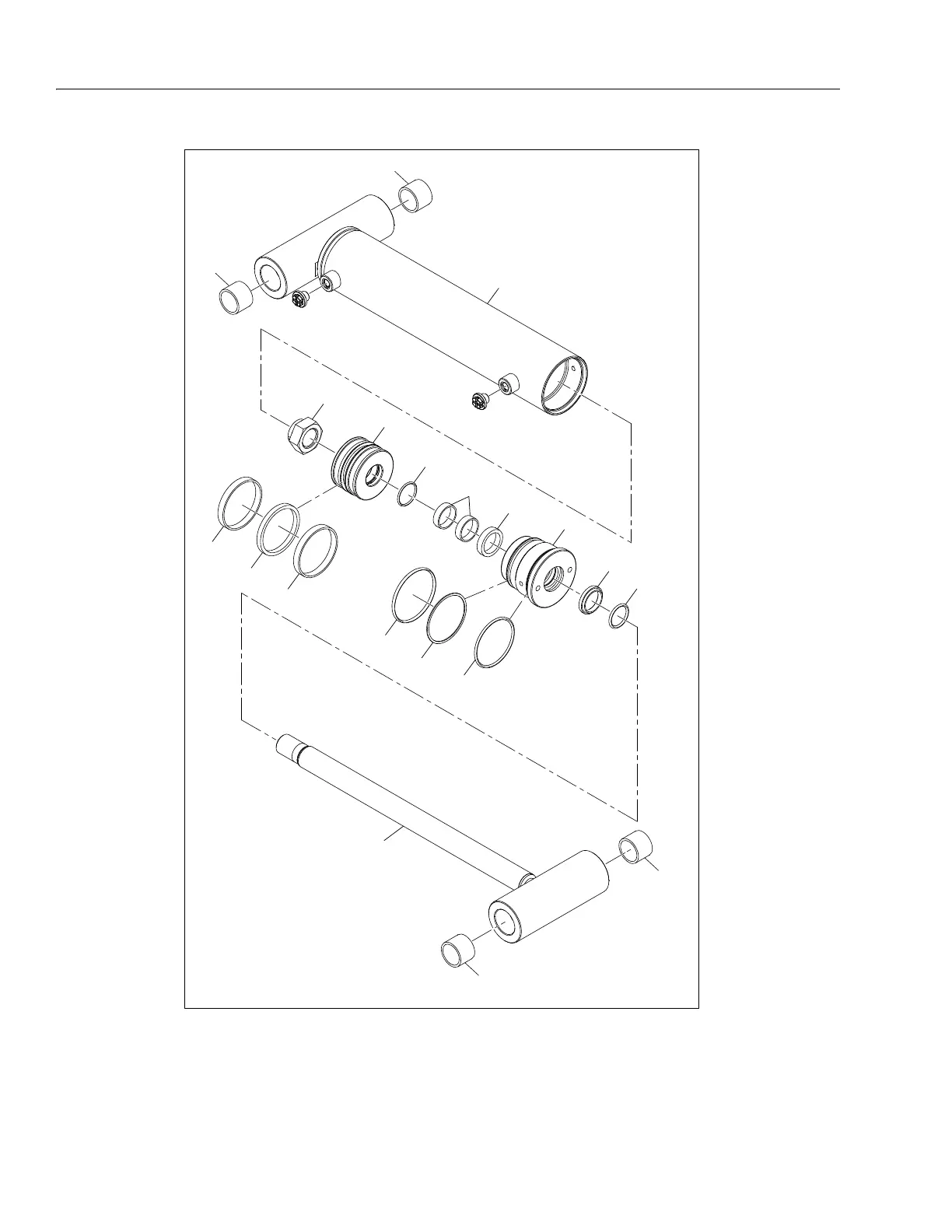

Figure 5-103. Master Cylinder E/M450AJ (SN B3000024867 to Present)
1. Barrel
2. Rod
3. Piston
4. Head
5. Bushing
6. O-ring
7. Wear Ring
8. Wiper Seal
9. O-ring
10. Rod Seal
11. Backup Ring
12. O-ring
13. O-ring
14. Wear Ring
15. Piston Seal
16. Locknut
