JLG E450A - Platform Module - Sheet 1 of 2

SECTION 6 - JLG CONTROL SYSTEM
6-32 3121714
CONNECTOR PIN ASSIGNMENT FUNCTION
J1
NATURAL
1 TOWER LIFT UP DIGITAL INPUT
2 TOWER LIFT DOWN DIGITAL INPUT
3 UNUSED (TOWER TELESCOPE IN) DIGITAL INPUT
4 UNUSED (TOWER TELESCOPE OUT) DIGITAL INPUT
5 MAIN TELESCOPE IN DIGITAL INPUT
6 MAIN TELESCOPE OUT DIGITAL INPUT
7 PLATFORM ROTATE RIGHT DIGITAL INPUT
8 PLATFORM ROTATE LEFT DIGITAL INPUT
9 PLATFORM LEVEL UP DIGITAL INPUT
10 PLATFORM LEVEL DOWN DIGITAL INPUT
11 JIB UP DIGITAL INPUT
12 JIB DOWN DIGITAL INPUT
13 SPEED PUMP POTENTIOMETER GROUND GROUND
14 UNUSED (ENGINE START) DIGITAL INPUT
15 UNUSED (AUXILIARY DESCENT) DIGITAL INPUT
16 UNUSED (CRAB STEER SELECT) DIGITAL INPUT
17 UNUSED (COORDINATED STEER SELECT) DIGITAL INPUT
18 SWITCH POWER BATTERY VOLTAGE
19 UNALLOCATED DIGITAL INPUT
20 SOFT TOUCH SWITCH DIGITAL INPUT
21 UNALLOCATED DIGITAL INPUT
22 UNALLOCATED DIGITAL INPUT
23 SKYGUARD INPUT #2 DIGITAL INPUT
24 UNALLOCATED DIGITAL INPUT
25 UNALLOCATED DIGITAL INPUT
26 UNALLOCATED DIGITAL INPUT
27 SPEED MODE DIGITAL INPUT
28 UNUSED (TORQUE MODE (LOW ENGINE)) DIGITAL INPUT
29 SOFT TOUCH/SKYGUARD OVERRIDE DIGITAL INPUT
30 HEAD/TAIL LIGHT DIGITAL INPUT
31 HORN DIGITAL INPUT
32 CREEP MODE DIGITAL INPUT
33 UNUSED (GENSET ENABLE/DISABLE) DIGITAL INPUT
34 SPEED PUMP POTENTIOMETER REFERENCE VOLTAGE +7 REFERENCE VOLTAGE
35 SPEED PUMP POTENTIOMETER ANALOG INPUT
CONNECTOR PIN ASSIGNMENT FUNCTION
J2
GRAY
1 UNALLOCATED (JIB RT) DIGITAL INPUT
2 UNALLOCATED (JIB LT) DIGITAL INPUT
3 UNUSED (BATTERY VOLTAGE) BATTERY VOLTAGE
4 DRIVE ORIENTATION SYSTEM OVERRIDE SWITCH HS DIGITAL INPUT
5 UNALLOCATED (BASKET STOW SWITCH) DIGITAL INPUT
6 CHASSIS TILTED INDICATOR LAMP OUTPUT
7 FUNCTION ENABLE INDICATOR LAMP OUTPUT
8 VEHICLE SYSTEM DISTRESS INDICATOR LAMP OUTPUT
9 CREEP SPEED INDICATOR LAMP OUTPUT
10 UNUSED (BROKEN CABLE INDICATOR) LAMP OUTPUT
11 PLATFORM OVERLOADED INDICATOR LAMP OUTPUT
12 UNUSED (500 LB CAPACITY INDICATOR) LAMP OUTPUT
13 LOW BATTERY INDICATOR LAMP OUTPUT
14 DRIVE ORIENTATION SYSTEM INDICATOR LAMP OUTPUT
15 UNUSED (GENERATOR ON INDICATOR) LAMP OUTPUT
16 SKYGUARD INDICATOR LAMP OUTPUT
17 UNUSED (GLOW PLUG ENGAGED INDICATOR) LAMP OUTPUT
18 LAMP RETURN GROUND
19 SOFT TOUCH INDICATOR LAMP OUTPUT
20 UNUSED LAMP OUTPUT
21 UNUSED (LOW FUEL INDICATOR) LAMP OUTPUT
22 1/4 BAT CHG INDICATOR LAMP OUTPUT
23 3/4 BAT CHG INDICATOR LAMP OUTPUT
24 1/2 BAT CHG INDICATOR LAMP OUTPUT
25 BAT CHG INDICATORS RETURN GROUND
26 ANALYZER POWER ANALYZER POWER
27 ANALYZER GROUND ANALYZER GROUND
28 ANALYZER RX ANALYZER RX
29 ANALYZER TX ANALYZER TX
30 UNUSED (BATTERY VOLTAGE) BATTERY VOLTAGE
31 SOFT TOUCH POWER BATTERY VOLTAGE
32 LSS POWER BATTERY VOLTAGE
33 UNUSED (PLT DISP POWER) BATTERY VOLTAGE
34 UNUSED (SWITCH POWER) BATTERY VOLTAGE
35 FULL BAT CHG INDICATOR LAMP OUTPUT
PIN 1
1001215835-D
MAE32070D

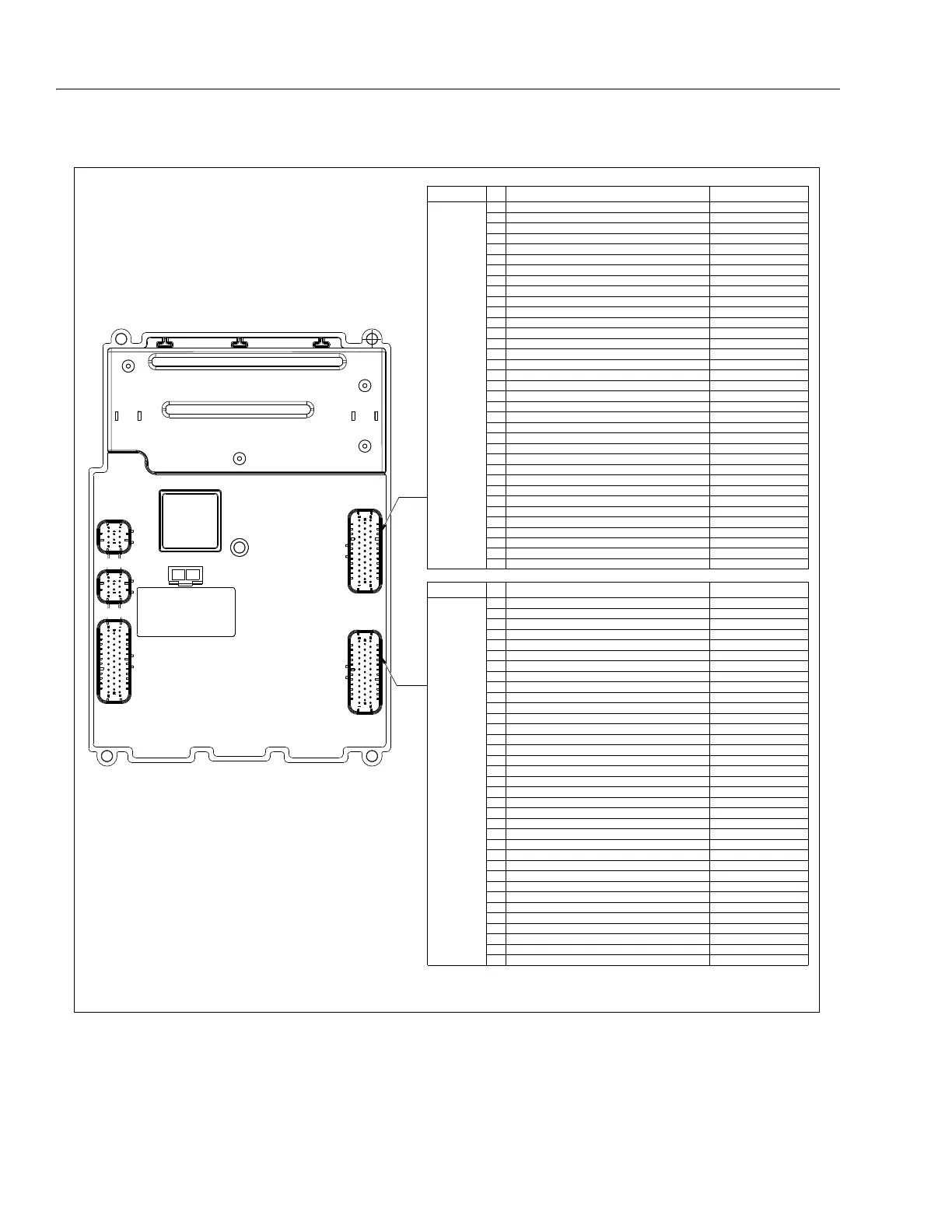

Figure 6-15. Platform Module - Sheet 1 of 2
