JLG E450A - British Standard Parallel Pipe Port (BSPP) - L Series - Table 3 of 3

SECTION 5 - BASIC HYDRAULIC INFORMATION & SCHEMATICS
3121714 5-43

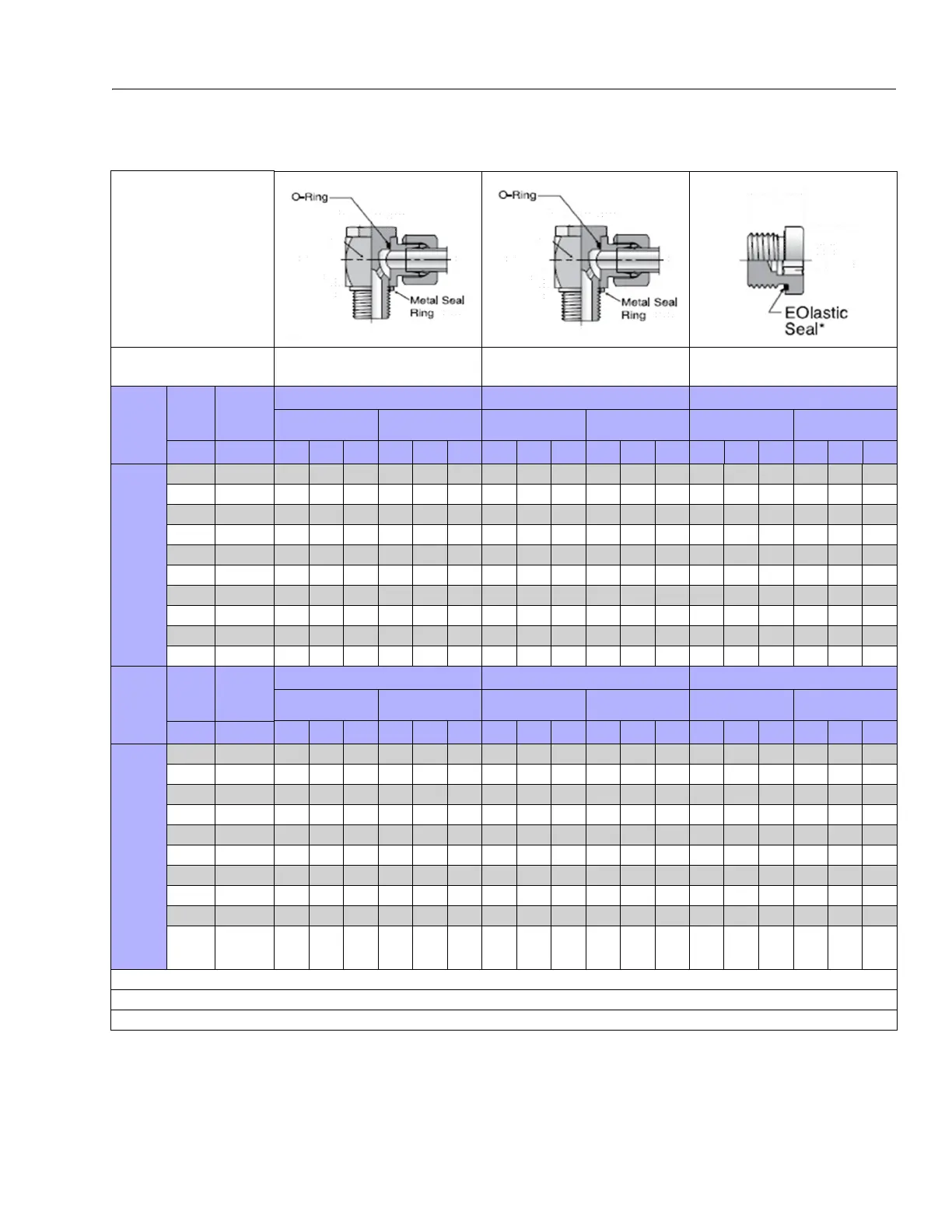

Table 5-27. British Standard Parallel Pipe Port (BSPP) - L Series - Table 3 of 3
TYPE/FITTING IDENTIFICATION
BANJO FITTINGS
with L series DIN (MBTL) opposite end
HIGH PRESSURE BANJO FITTINGS
with L series DIN (MBTL) opposite end
FORM E (EOLASTIC SEALING RING)
HOLLOW HEX PLUGS
MATERIAL
BSPP
Thread G
Size
Connecting
Tube O.D.
Torque Torque Torque
[Ft-Lb] [N-m] [Ft-Lb] [N-m] [Ft-Lb] [N-m]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max Min Nom Max Min Nom Max
STEEL FITTINGS WITH STEEL MATING
COMPONENTS; UN-LUBRICATED THREADS
G 1/8A 6 13 14 14 18 19 19 13 14 14 18 19 19 10 11 11 13 15 15
G 1/4A 8 303233404345333536454749222324303133
G 1/4A 10 30 32 33 40 43 45 33 35 36 45 47 49 22 23 24 30 31 33
G 3/8A 12 48 51 53 65 69 72 52 55 57 70 75 77 44 46 48 60 62 65
G 1/2A 15 66 70 73 90 95 99 89 94 98 120 127 133 59 62 65 80 84 88
G 1/2A 18 66 70 73 90 95 99 89 94 98 120 127 133 59 62 65 80 84 88
G 3/4A 22 92 97 101 125 132 137 170 179 187 230 243 254 103 108 113 140 146 153
G 1A 28 -- -- -- -- -- -- 236 248 260 320 336 353 148 156 163 200 212 221
G 1-1/4A 35 -- -- -- -- -- -- 398 418 438 540 567 594 295 313.5 332 400 425 450
G 1-1/2A 42 -- -- -- -- -- -- 516 542 568 700 735 770 332 349 365 450 473 495
MATERIAL
BSPP
Thread G
Size
Connecting
Tube O.D.
Torque Torque Torque
[Ft-Lb] [N-m] [Ft-Lb] [N-m] [Ft-Lb] [N-m]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max Min Nom Max Min Nom Max
ALUMINUM/BRASS FITTINGS OR ALUMINUM/BRASS
MATING COMPONENTS; UN-LUBRICATED THREADS
G 1/8A 6 8 9 9 11 12 12 8 9 9 11 12 12 6 7 7 8 9 9
G 1/4A 8 202121272828212223283031141516192022
G 1/4A 10 20 21 21 27 28 28 21 22 23 28 30 31 14 15 16 19 20 22
G 3/8A 12 31 33 34 42 45 46 34 36 37 46 49 50 29 30 31 39 41 42
G 1/2A 15 43 45 47 58 61 64 58 61 64 79 83 87 38 40 42 52 54 57
G 1/2A 18 43 45 47 58 61 64 58 61 64 79 83 87 38 40 42 52 54 57
G 3/4A 22 60 63 66 81 85 89 111 117 122 150 159 165 67 70 73 91 95 99
G 1A 28 -- -- -- -- -- -- 153 161 169 207 218 229 96 101 106 130 137 144
G 1-1/4A 35 -- -- -- -- -- -- 259 272 285 351 369 386 216 227 237 293 308 321
G 1-1/2A 42 -- -- -- -- -- -- 335 352 369 454 477 500 216 227 237 293 308 321
* Typical for JLG Straight Male Stud Fittings.
** Non typical for JLG Straight Male Stud Fittings, reference only.
*** Typical for JLG Adjustable Fittings.
