JLG E450A - Ground Control Module - Sheet 2 of 3

SECTION 6 - JLG CONTROL SYSTEM
6-30 3121714
1001182700-K
MAE31550K
Connector Pin Function Type
J7
(Black)
1
PLATFORM EMS DIGITAL INPUT
2
PLATFORM MODE DIGITAL INPUT
3
GROUND MODE DIGITAL INPUT
4
UPPER BOOM ELEVATION SWITCH ANALOG INPUT
5
UNUSED VOLTAGE OUTPUT
6
CAN1 TERMINATOR TERM I/O
7
LOWER BOOM ELEVATION SWITCH ANALOG INPUT
8
UNUSED ANALOG INPUT
9
UNUSED (GROUND) GROUND INPUT
10
UNUSED (GROUND) GROUND INPUT
11
DOS SWITCH DIGITAL INPUT
12
UNUSED DIGITAL INPUT
13
CAN1 HIGH SERIAL I/O
14
GROUND MODE POWER TO PLATFORM DIGITAL INPUT
15
FOOTSWITCH DIGITAL INPUT
16
UNUSED (+5 VOLTS) VOLTAGE OUTPUT
17
CAN1 TERMINATOR TERM I/O
18
CAN1 SHIELD GROUND INPUT
19
UNUSED (GROUND) GROUND INPUT
20
UNUSED ANALOG INPUT
21
UNUSED DIGITAL INPUT
22
UNUSED DIGITAL INPUT
23
UNUSED DIGITAL INPUT
24
CAN1 LOW SERIAL I/O
25
TILT SENSOR GROUND GROUND INPUT
26
UNUSED (+5 VOLTS) VOLTAGE OUTPUT
27
UNUSED (+5 VOLTS) VOLTAGE OUTPUT
28
UNUSED GROUND INPUT
29
BATTERY VOLTAGE FOR TILT SENSOR VBAT OUTPUT
30
BATTERY VOLTAGE FOR BOOM LIMIT SWITCH VBAT OUTPUT
31
UNUSED VBAT OUTPUT
32
UNUSED VBAT OUTPUT
33
UNUSED VBAT OUTPUT
34
UNUSED VBAT OUTPUT
35
UNUSED DIGITAL INPUT
Connector Pin Function Type
J12
(Blue)
1
UNUSED FREQUENCY INPUT
2
UNUSED FREQUENCY INPUT
3
CAN2 HIGH SERIAL I/O
4
CAN2 LOW SERIAL I/O
5
CAN2 SHIELD GROUND INPUT
6
UNUSED TERM I/O
7
UNUSED TERM I/O
8
MSSO DIGITAL INPUT

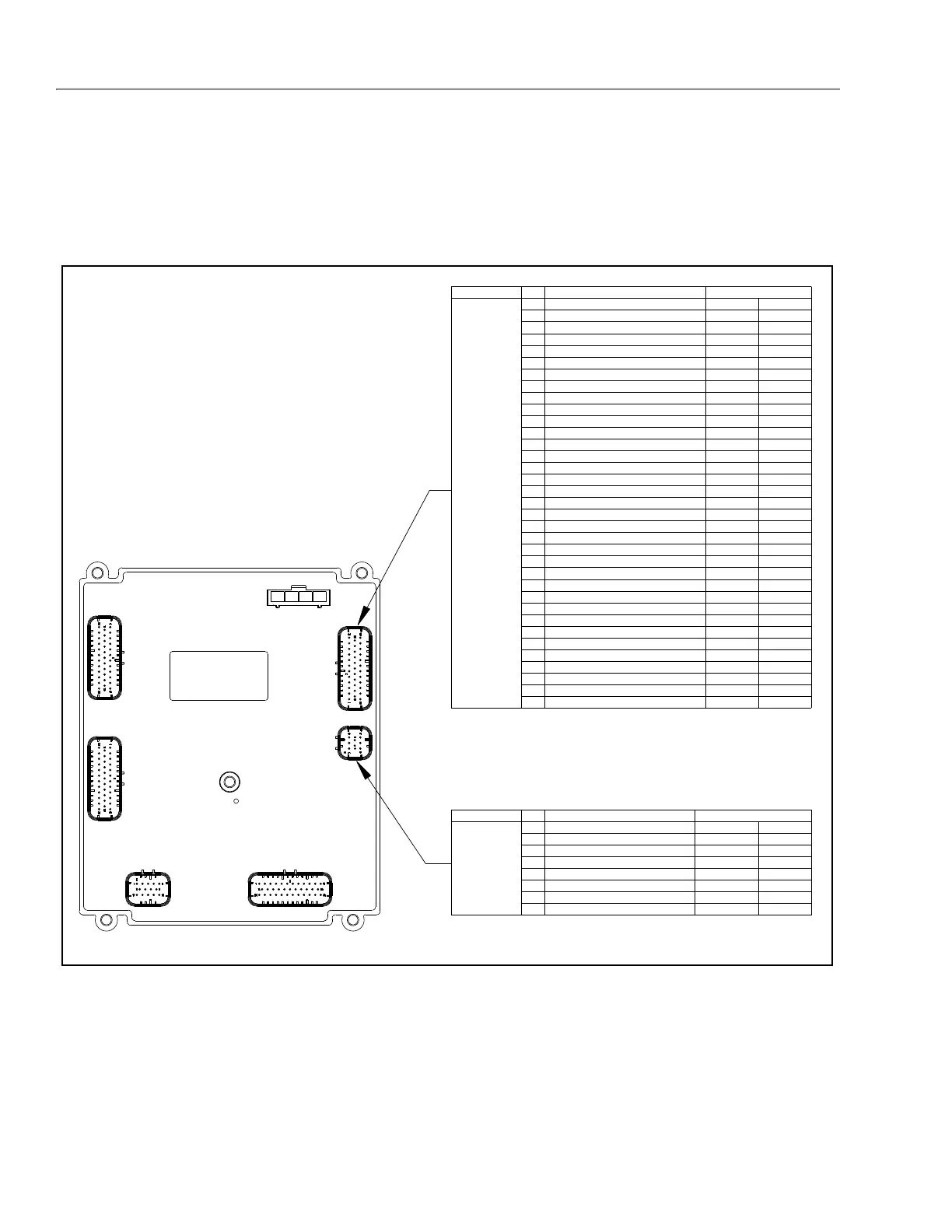

Figure 6-13. Ground Control Module - Sheet 2 of 3
