JLG E450A - Master Cylinder E;M450 AJ (SN 0300208529 to Present, SN B300001429 through B300002486)

SECTION 5 - BASIC HYDRAULIC INFORMATION & SCHEMATICS
3121714 5-103
1001140278 A

1. Barrel
2. Rod
3. Head
4. Piston
5. Bushing
6. O-ring
7. Retaining Ring
8. Wiper Seal
9. O-ring
10. Rod Seal
11. Backup Ring
12. O-ring
13. O-ring
14. Wear Ring
15. Piston Seal
16. Retainer

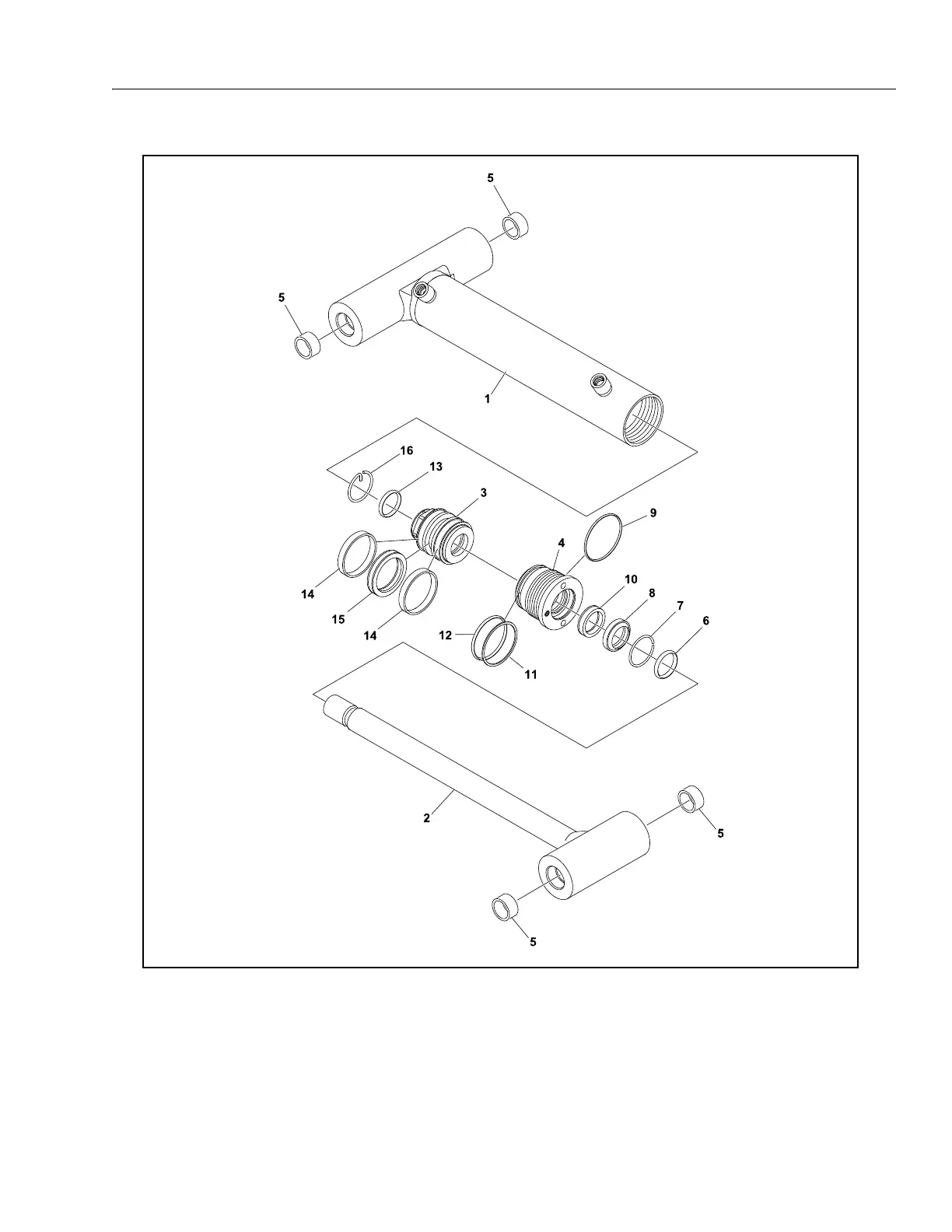

Figure 5-102. Master Cylinder E/M450AJ (SN 0300208529 to Present, SN B300001429 through B300002486)
* Torque gland to 442 ft. lbs. (600 Nm)
