JLG E450A - Speed Sensor

SECTION 3 - CHASSIS & TURNTABLE
3-6 3121714
3.4 SPEED SENSOR
For proper drive operation, the speed sensors must be prop-
erly installed and adjusted. The sensor operates on a leading
pulse to show direction. If installed wrong, the sensor will not
be able to sense the proper direction.
48V TO 12V DC/DC
CONVERTER
POWER STUD
CONTACTOR RHT
CONTACTOR LFT
GROUND STUD
LFT PWR MOD U
LFT PWR MOD B+
LFT PWR MOD B-
LFT PWR MOD W
11X TORQUE
CONTROLLER
STUDS TO
7 N-M MAX
LFT MTR U
LFT MTR V
LFT MTR W
LFT PWR MOD V
RHT PWR MOD W
CABLE PUMP MOTOR POS
RHT MTR V
RHT MTR U
RHT MTR W
RHT PWR MOD V
RHT PWR MOD U
RHT PWR MOD B+
RHT PWR MOD B-
RHT PWR MOD PUMP
MOTOR ENCODER &
TEMP FEEDBACK CONNECTOR
MOTOR ENCODER &
TEMP FEEDBACK CONNECTOR

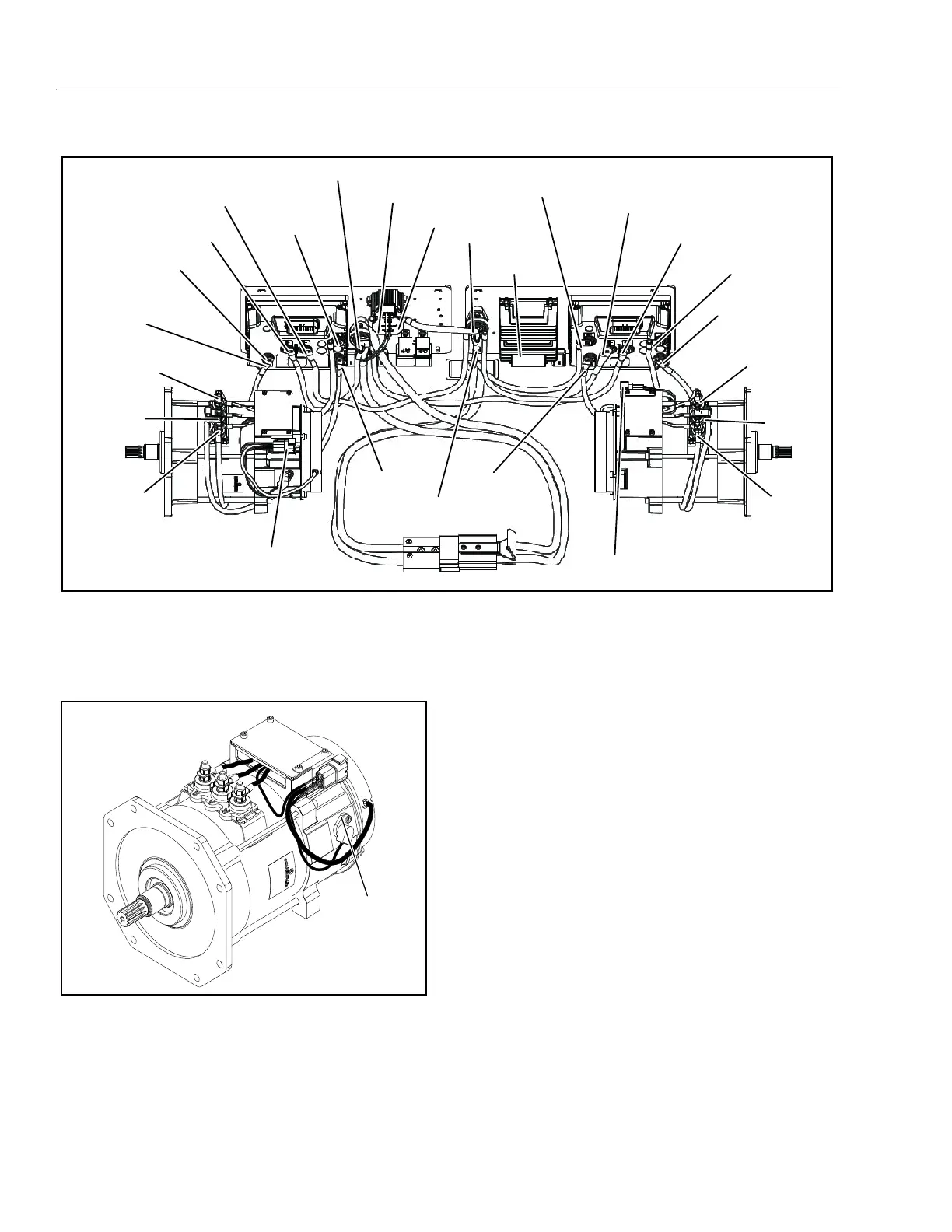

Figure 3-4. Cable Routing
1001193949 B
SPEED SENSOR
