JLG E450A - Drive Motor

SECTION 3 - CHASSIS & TURNTABLE
3-28 3121714



































1. Not Included
2. Stator
3. Terminal Board
4. Nut
5. Washer
6. Terminal Base
7. Screw
8. Drive End Plate
9. O-Ring
10. Shaft Seal
11. Bearing
12. Washer
13. Sensor
14. Screw
15. Wedge
16. Connector
17. Male Pin
18. End Shield
19. Seal
20. Seal
21. Cover
22. Screw
23. Retaining Plate
24. Bearing
25. Retainer Clip
26. Screw
27. Temperature Sensor
28. O-Ring
29. Rotor
30. Retainer Clip
31. Retainer Clip
32. Key
33. Gear
34. Connector
35. Screw
36. Drive Brake

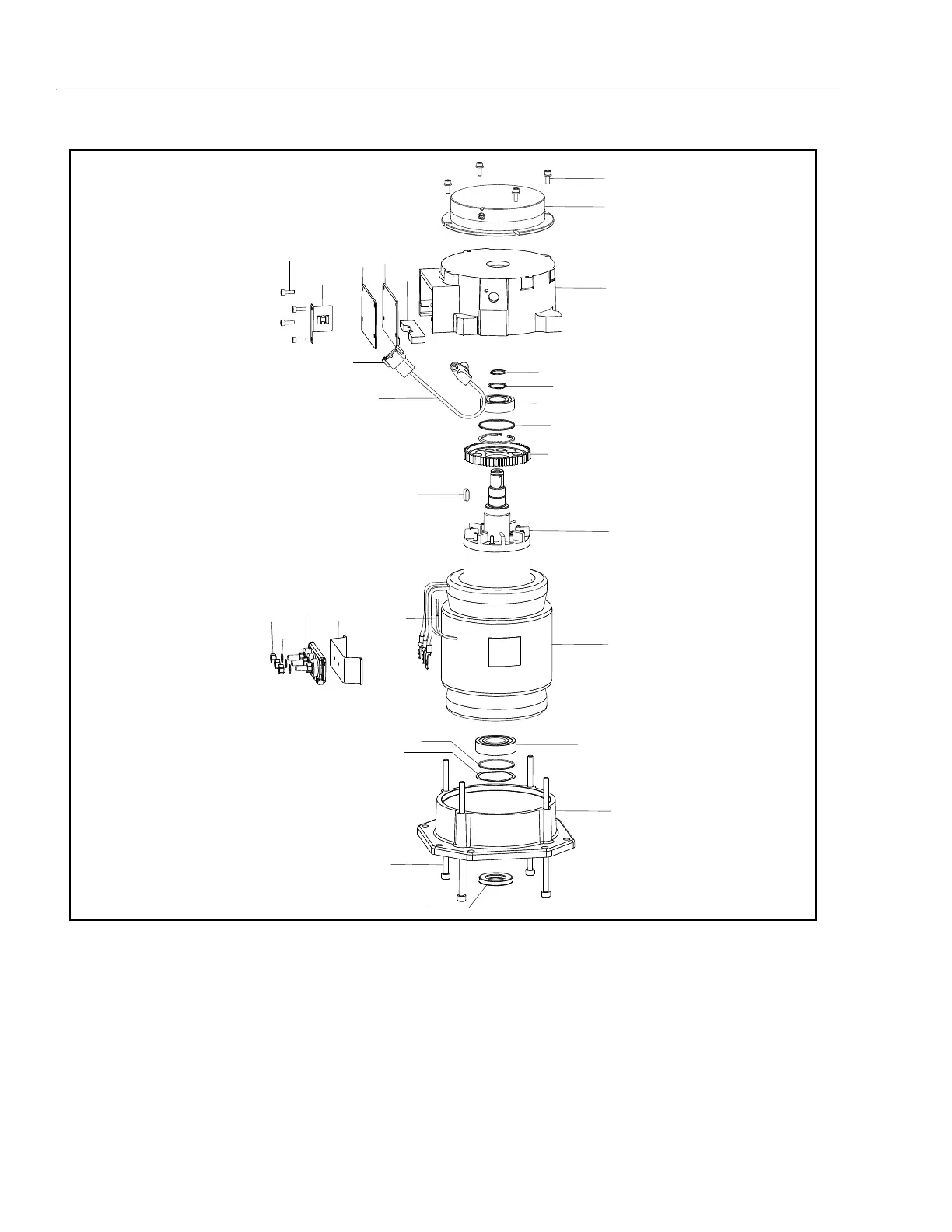

Figure 3-20. Drive Motor
