JLG E450A - Analyzer Software P1.4 - Sheet 5 of 5

SECTION 6 - JLG CONTROL SYSTEM
3121714 6-21
MENU:
MACHINE SETUP
MODEL
E400
MARKET
ANSI USA
BATTERIES
310AH FLOOD
TILT
5 DEGREES
GROUND ALARM
NO
JIB
YES
JIB SWING
NO
SKYGUARD
NO
SOFTTOUCH
NO
H & T LIGHTS
NO
LOAD SYSTEM
NO
FUNCTION CUTOUT
NO
DISPLAY UNITS
IMPERIAL
ALERT BEACON
OFF FOR CREEP
TEMP CUTOUT
NO
WHEEL DRIVE
4WD
CHARGER INTRLOCK
DRIVE ONLY
PLAT LVL OVR CUT
NO
MENU:
CALIBRATIONS
2
CALIBRATIONS :
TILT SENSOR
2
TILT SENSOR :
CALIBRATE ?
2
TILT SENSOR :
MOVE BOOM INLINE
2
TILT SENSOR :
CALIBRATING…
2
TILT SENSOR :
CAL COMPLETE
2
TILT SENSOR :
CAL FAILED
2
CALIBRATIONS
:
LOAD SENSING
2
LOAD SENSING
:
CALIBRATE?
2
LOAD SENSING
:
ACCESSORY Y/N?
2
LOAD SENSING :
ACC WEIGHT :XXXLB
2
LOAD SENSING :
PLATFORM EMPTY?
2
LOAD SENSING :
CAL COMPLETE
2
LOAD SENSING :
CAL FAILED
2
CALIBRATIONS :
STEER SENSOR
2
STEER SENSOR :
CALIBRATE?
2
STEER SENSOR :
RIGHT TO MAX
2
STEER SENSOR :
CALIBRATING …
2
STEER SENSOR :
CENTER
2
STEER SENSOR :
CALIBRATING …
2
STEER SENSOR :
LEFT TO MAX
2
STEER SENSOR :
CALIBRATING …
2
STEER SENSOR :
CAL COMPLETE
2
STEER SENSOR :
CAL FAILED
2
CALIBRATIONS :
MSSO
2
MSSO RESET
2
CALIBRATIONS :
MOTOR CAL
2
MOTOR PARAM:
CALIBRATE?
2
MOTOR PARAM:
CALIBRATING ...
2
MOTOR PARAM :
INCORRECT MODEL
2
MOTOR PARAM :
CAL COMPLETE
2
MOTOR PARAM :
CAL FAILED
2
PERSONALITIES
MENU :
FROM
MAE31810G
1001187146-G
NOTE: The layout shown includes all possible analyzer screens. Please note that some screens may not be available depending
upon machine configuration.

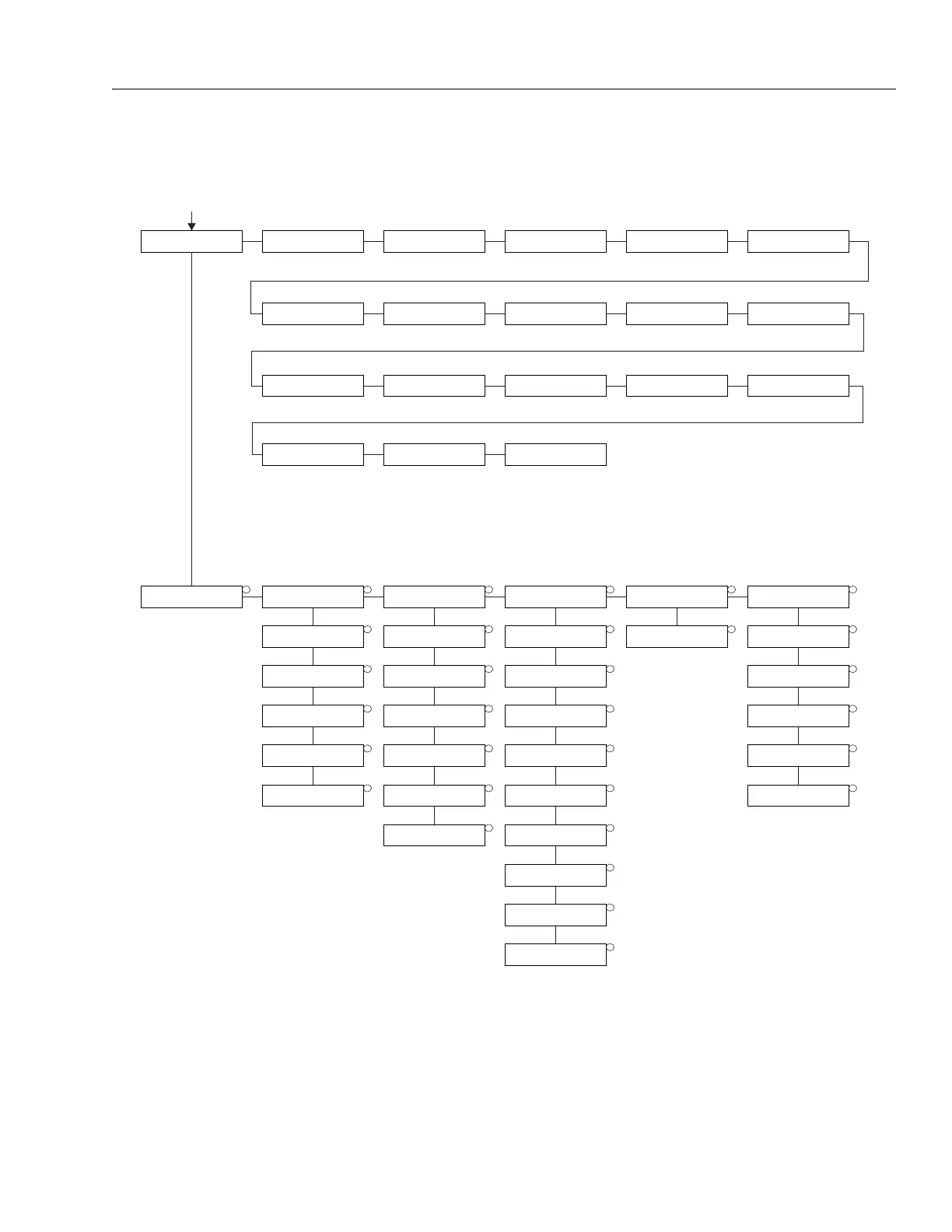

Figure 6-6. Analyzer Software P1.4 - Sheet 5 of 5
