SECTION 6 - JLG CONTROL SYSTEM
3121714 6-51
6.5 CALIBRATING STEER
When calibrating steering, each individual wheel must be cali-
brated in order to make the tire and wheel parallel with the
frame. Two methods to help ensure proper calibration are the
use of a carpenter’s square to square the spindle to the axle or
aligning the two wheels on one side using a stretched string.
1. Position the Platform/Ground select switch to the Plat-
form position.
2. Plug the analyzer into the connector at the base of the
platform control box.
3. Pull out the Emergency Stop switch and Start the
engine.

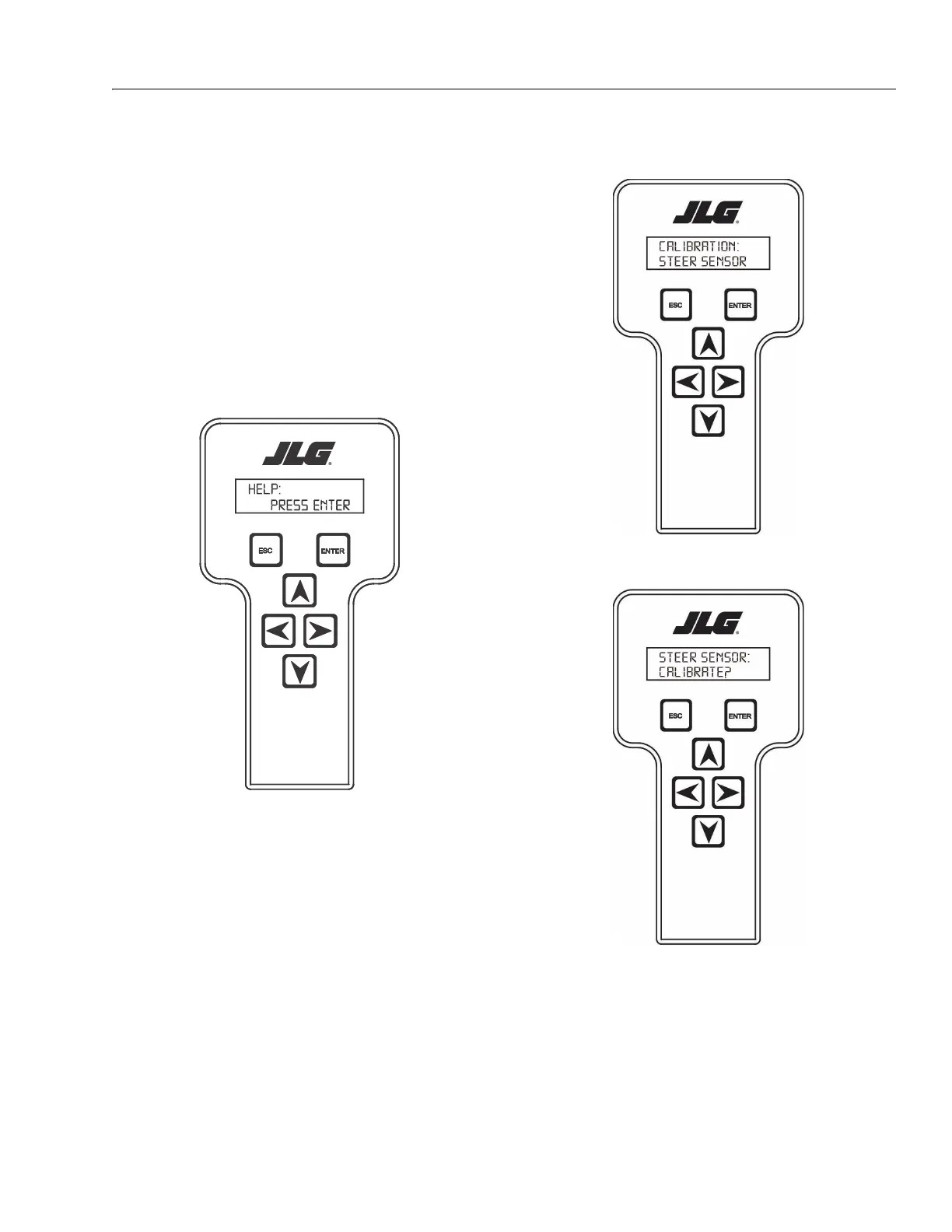

4. The analyzer screen should read:
5. Use the arrow button to reach ACCESS LEVEL. Hit Enter.
6. Enter the Access Code, 33271.
7. Use the right Arrow key to reach CALIBRATIONS. Hit
Enter.
8. Use the arrow keys to reach STEER SENSOR. The screen
will read:
9. Hit Enter. The screen will read:
