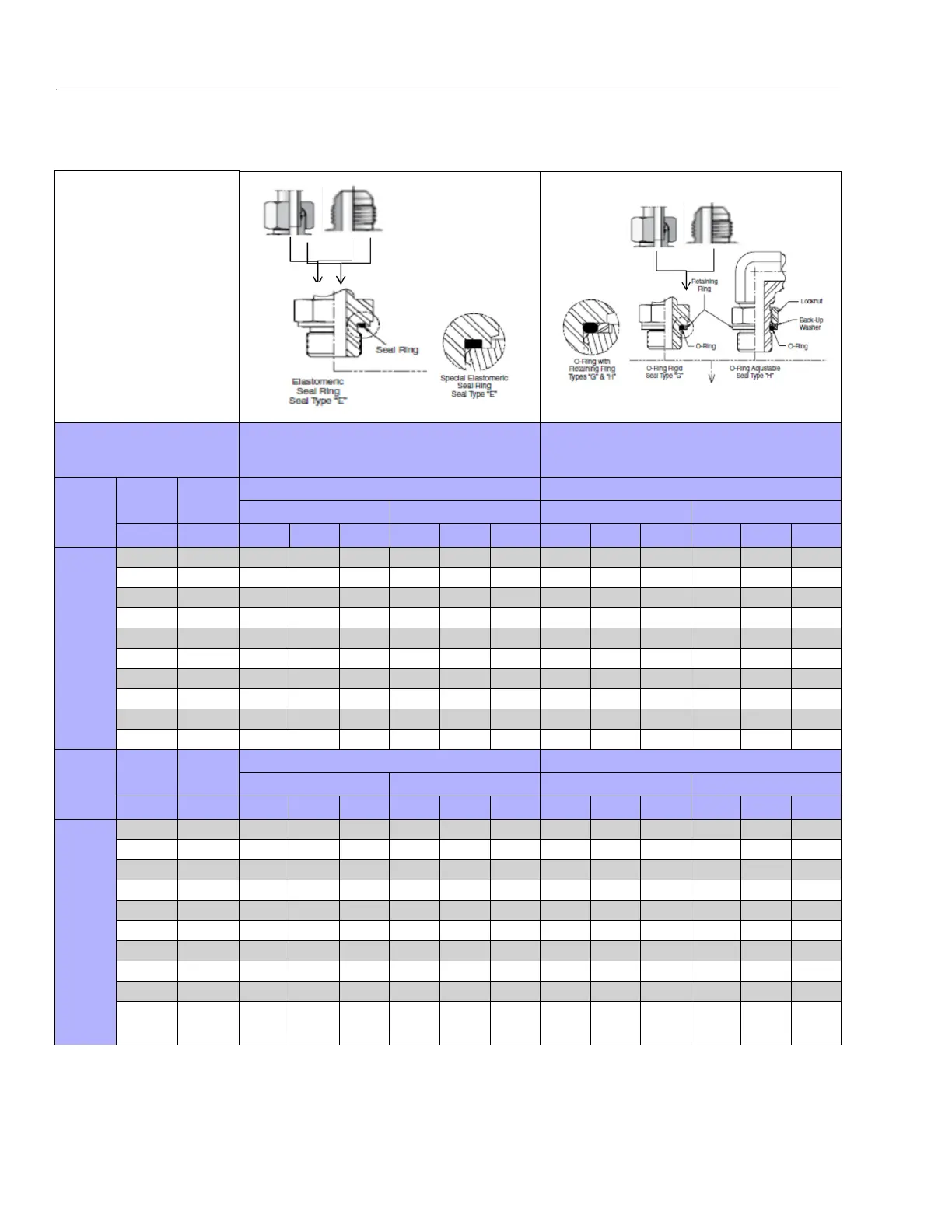

Table 5-19. Metric Flat Face Port (MFF) - L Series - Table 2 of 3
TYPE/FITTING IDENTIFICATION
FORM A (SEALING WASHER)
STUD ENDS
with 37° (JIC) or L series DIN (MBTL) opposite end
FORM B (CUTTING FACE)
STUD ENDS
with 37° (JIC) or L series DIN (MBTL) opposite end
MATERIAL
Thread M
Size
Connecting
Tube O.D.
Torque Torque
[Ft-Lb] [N-m] [Ft-Lb] [N-m]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
STEEL FITTINGS WITH STEEL MATING
COMPONENTS; UN-LUBRICATED THREADS
M10x1 6 13 14 14 18 19 19 13 14 15 18 19 20
M12x1.5 8 18 19 20 25 26 27 18 19 20 25 26 28
M14x1.5 10 33 35 36 45 47 49 30 31 32 40 42 44
M16x1.512 414345555861414345555861
M18x1.5 15 52 55 57 70 75 77 52 54 57 70 74 77
M22x1.5 18 92 97 101 125 132 137 66 70 73 90 95 99
M27x2 22 133 140 146 180 190 198 133 139 146 180 189 198
M33x2 28 229 241 252 310 327 342 229 240 252 310 326 341
M42x2 35 332 349 365 450 473 495 332 348 365 450 473 495
M48x2 42 398 418 438 540 567 594 398 418 438 540 567 594
MATERIAL
Thread M
Size
Connecting
Tube O.D.
Torque Torque
[Ft-Lb] [N-m] [Ft-Lb] [N-m]
(metric) (mm) Min Nom Max Min Nom Max Min Nom Max Min Nom Max
ALUMINUM/BRASS FITTINGS OR ALUMINUM/BRASS
MATING COMPONENTS; UN-LUBRICATED THREADS
M10x1 6 8 9 9 11 12 12 8 9 9 11 12 12
M12x1.5 8 12 13 13 16 18 18 12 13 13 16 18 18
M14x1.5 10 21 22 23 28 30 31 19 20 21 26 27 29
M16x1.512 272829373839262829363839
M18x1.5 15 34 36 37 46 49 50 34 35 37 46 48 50
M22x1.518 606366818589434547596164
M27x2 22 86 91 95 117 123 129 86 91 95 117 123 129
M33x2 28 149 157 164 202 213 222 149 157 164 202 213 222
M42x2 35 216 227 237 293 308 321 216 227 237 293 308 321
M48x2 42 259 272 285 351 369 386 259 272 285 351 369 386
