JLG E450A - Main Assembly - Sheet 2 of 2

SECTION 3 - CHASSIS & TURNTABLE
3121714 3-15
)
*







1F. Ring Gear
1G. Housing
4. Output Carrier Subassembly
5. Retaining Ring
6. Cover Assembly
6G. Retaining Ring
9. Input Shaft
10. First Stage Sun Gear
11. Second Stage Sun Gear
18. O-ring
19. Flat Head Bolt
20. Retaining Ring

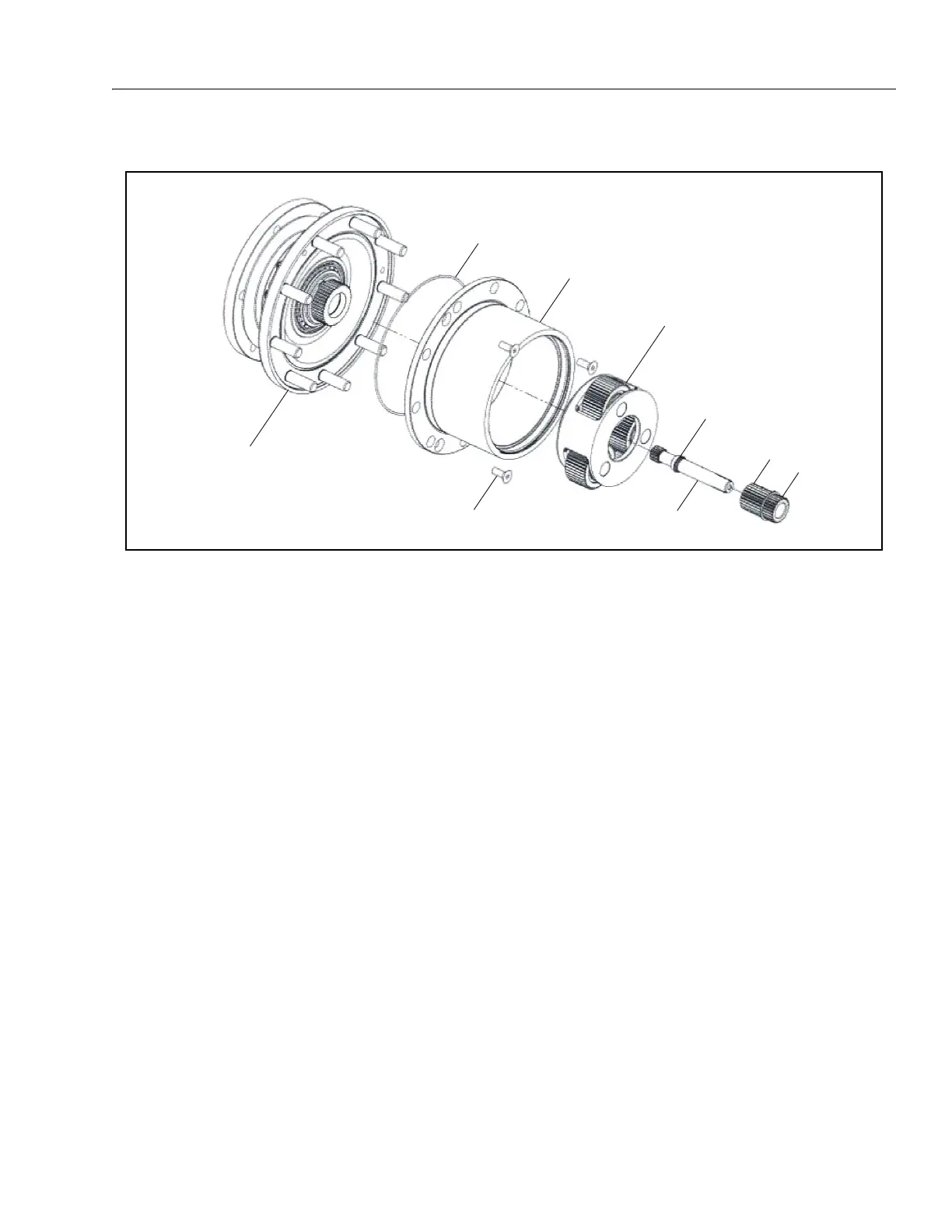

Figure 3-12. Main Assembly - Sheet 2 of 2
