JLG E450A - Ground Control Module - Sheet 3 of 3

SECTION 6 - JLG CONTROL SYSTEM
3121714 6-31
1001182700-K
MAE31560K
Connector Pin Function Type
J4
(Blue)
1
UNUSED DIGITAL OUTPUT
2
UNUSED DIGITAL OUTPUT
3
UNUSED DIGITAL OUTPUT
4
UNUSED DIGITAL INPUT
5
PLATFORM LEVEL DOWN DIGITAL INPUT
6
PLATFORM ROTATE LEFT DIGITAL INPUT
7
MAIN TELESCOPE IN DIGITAL INPUT
8
JIB DOWN DIGITAL INPUT
9
JIB LEFT DIGITAL INPUT
10
TOWER LIFT UP DIGITAL INPUT
11
UNUSED DIGITAL INPUT
12
UNUSED DIGITAL OUTPUT
13
UNUSED DIGITAL OUTPUT
14
PLATFORM OVERLOADED INDICATOR DIGITAL OUTPUT
15
UNUSED DIGITAL OUTPUT
16
AUXILIARY POWER / FUNCTION ENABLE DIGITAL INPUT
17
PLATFORM LEVEL UP DIGITAL INPUT
18
PLATFORM ROTATE RIGHT DIGITAL INPUT
19
JIB UP DIGITAL INPUT
20
JIB RIGHT DIGITAL INPUT
21
TOWER LIFT DOWN DIGITAL INPUT
22
UNUSED DIGITAL INPUT
23
MAIN LIFT UP DIGITAL INPUT
24
BATTERY VOLTAGE FOR MDI VBAT OUTPUT
25
BATTERY VOLTAGE FOR SWITCHES VBAT OUTPUT
26
UNUSED DIGITAL OUTPUT
27
UNUSED DIGITAL OUTPUT
28
UNUSED DIGITAL OUTPUT
29
UNUSED DIGITAL OUTPUT
30
TELESCOPE OUT DIGITAL INPUT
31
LAMP GROUND GROUND INPUT
32
MDI GROUND GROUND INPUT
33
MAIN LIFT DOWN DIGITAL INPUT
34
SWING LEFT DIGITAL INPUT
35
SWING RIGHT DIGITAL INPUT
Connector Pin Function Type
J8
(Black)
1
MODULE GROUND / GROUND FROM BATTERY GROUND OUTPUT
2
MODULE POWER / GROUND EMS VBAT INPUT
3
GROUND TO PLATFORM MODULE GROUND INPUT
4
POWER TO PLATFORM MODULE / GROUND EMS OUT TO PLATFORM VBAT OUTPUT

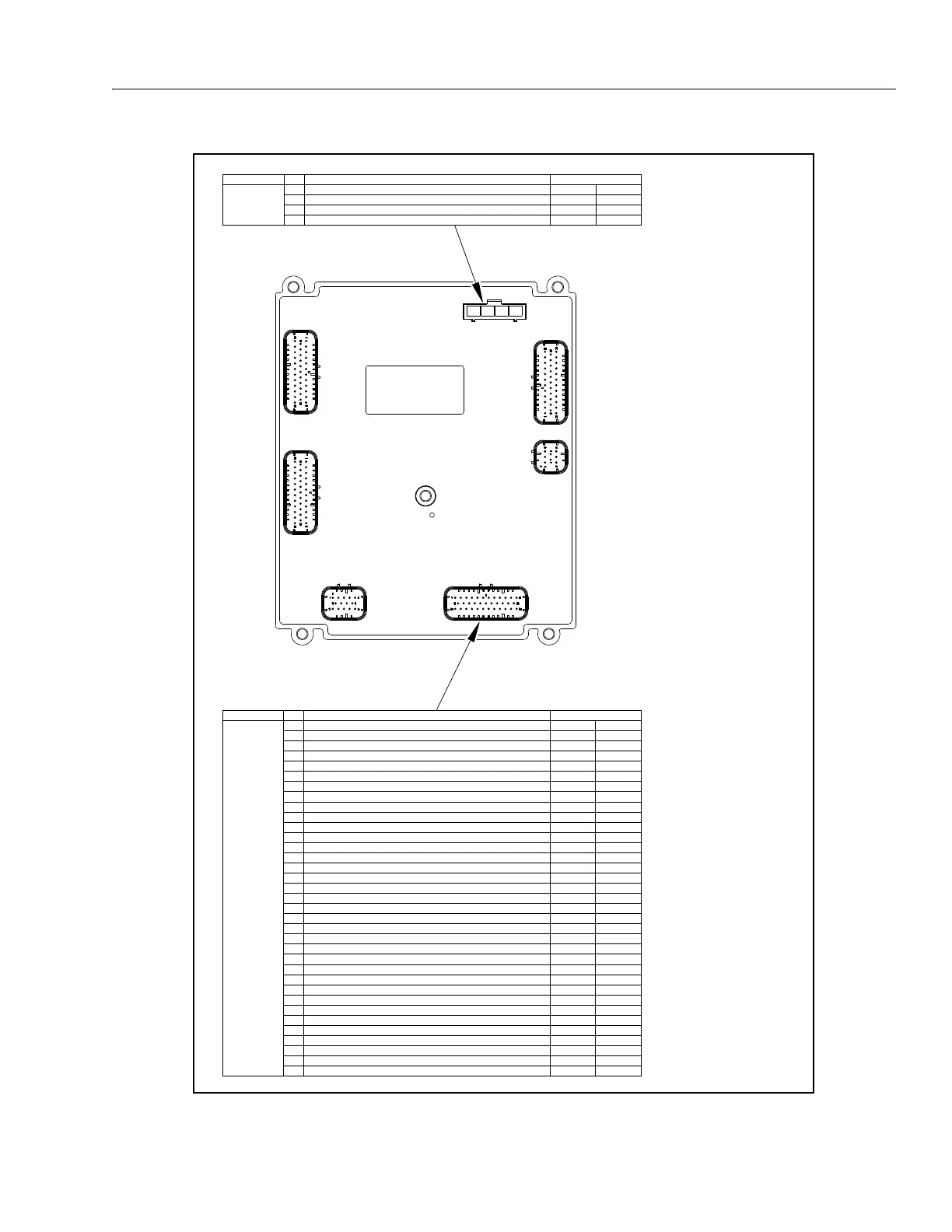

Figure 6-14. Ground Control Module - Sheet 3 of 3
