SECTION 1 - SPECIFICATIONS
1-6 3121714

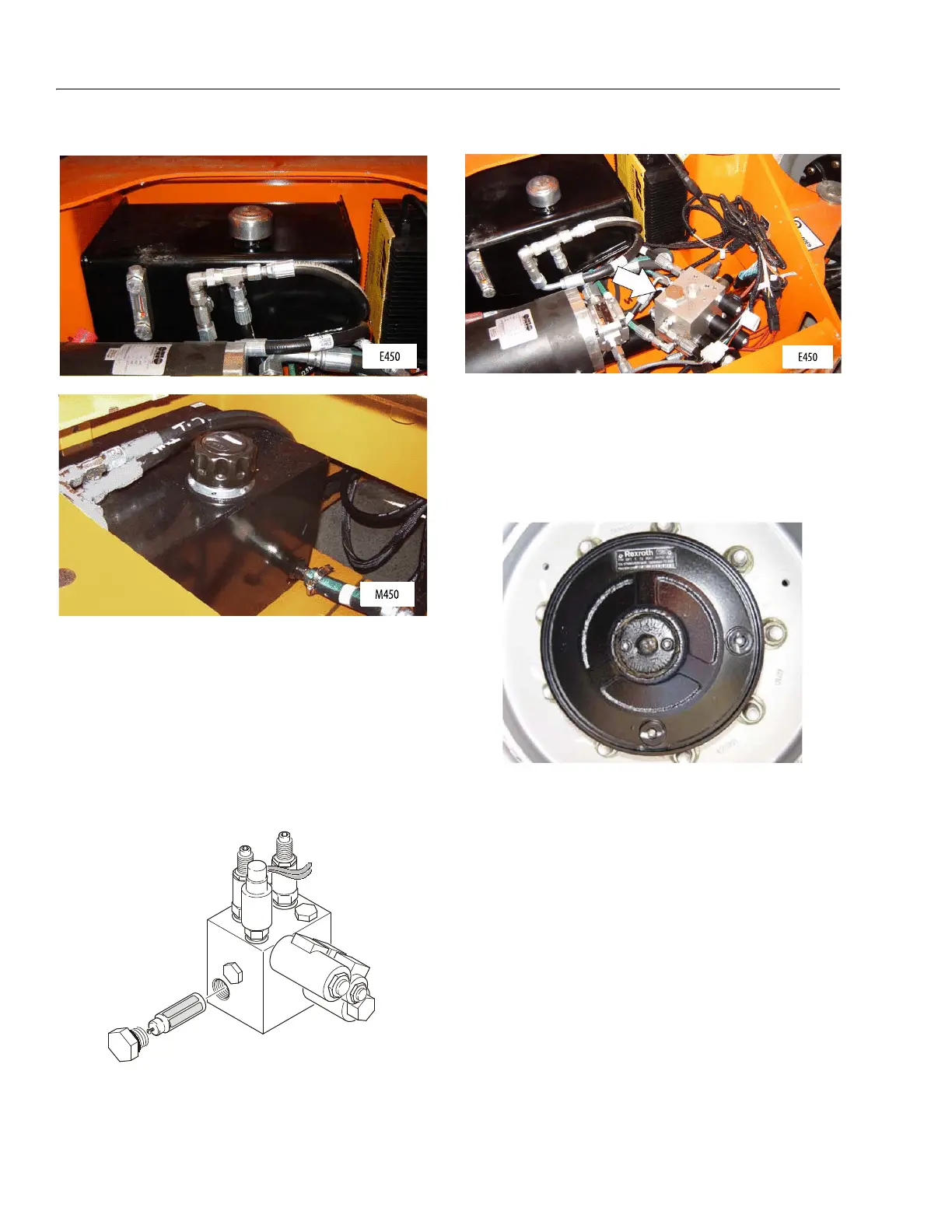

3. Hydraulic Tank
Lube Point(s) - Fill Cap
Capacity - 4 Gal. (15.1 L)
Lube - HO
Interval - Check Level daily; Change every 2 years or
1200 hours of operation.
Comments - On new machines, those recently over-
hauled, or after changing hydraulic oil, operate all sys-
tems a minimum of two complete cycles and recheck
oil level in reservoir.
4. Hydraulic Return Filter
Interval - Change after first 50 hrs. and every 6 months
or 300 hrs. thereafter.
Comments - Under certain conditions, it may be neces-
sary to replace the hydraulic filter on a more frequent
basis. A common symptom of a dirty filter is sluggish-
ness experienced in hydraulic functions.
5. Wheel Drive Hub
Lube Point(s) - Level/Fill Plug
Capacity - 17 oz. (1/2 Full)
Lube - EPGL
Interval - Check level every 3 months or 150 hrs of oper-
ation; change every 2 years or 1200 hours of operation.
