JLG E600 - Rotary Actuator - Exploded View

SECTION 4 - BOOM & PLATFORM
4-14 – JLG Lift – 3121813
PARTS
1. Housing
2. Sha ft
3. Piston Sleeve
4. End Ca p
HARDWARE
103.1. Screw
103.2 . Washer
106.1. Port Plug
106.2. Port Plug
109 . Lock Pin
113. Capscrew
SEALS
200. T-Seal
202. T-Seal
204. O-ring
205. Cup Seal
207. Backup Ring
304.1. Wiper Seal
BEARINGS
302. Wear Guide
304. Thrust Washer
ACCESSORIES
400. Stop Tube
420.1 Bushing
420.2 Bushing
421.1 Bushing

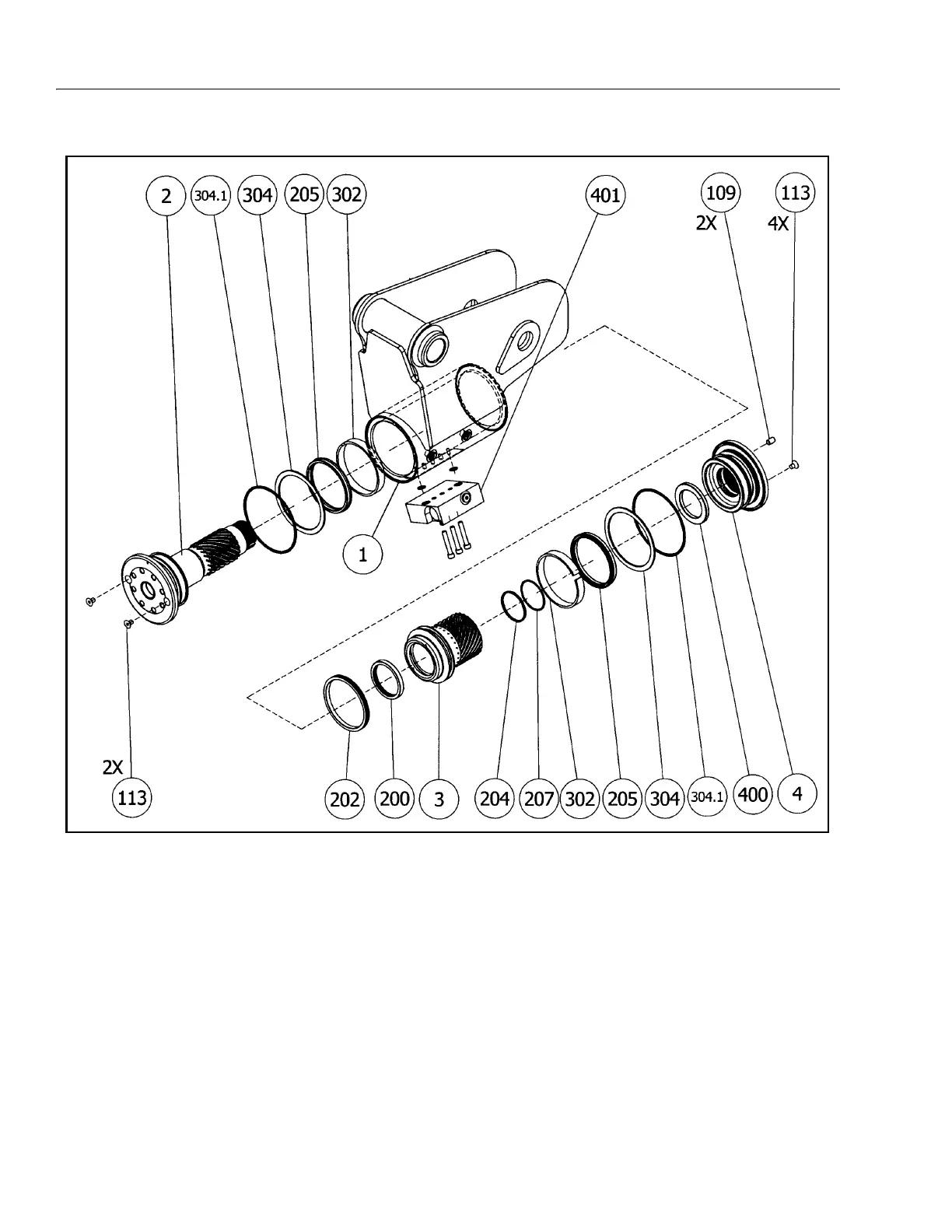

Figure 4-10. Rotary Actuator - Exploded View
