JLG E600 - Input Carrier Disassembly

SECTION 3 - CHASSIS & TURNTABLE
3-12 – JLG Lift – 3121813
Input Carrier Disassembly
1. Using a 1/8" diameter punch, drive the Roll Pin (4G)
into the Planet Shaft (3E) until it bottoms against the
Carrier (3A).
2. Using a soft face hammer, tap the Planet Shaft (3E)
out of the Carrier (3A).
3. Using a 1/8" diameter punch, drive the Roll Pin (4G)
out of the Planet Shaft (3E). NOTE: The Roll Pins
(4G) should not be reused when reassembling the
unit.
4. Slide the Planet Gear (3F) and the two Thrust Wash-
ers (3B) out of the Carrier (3A).
5. Remove the 14 needle Bearings (3C) from the bore
of the Planet Gear (3F).
6. Repeat steps 1 through 5 for each of the two remain-
ing planet gears.

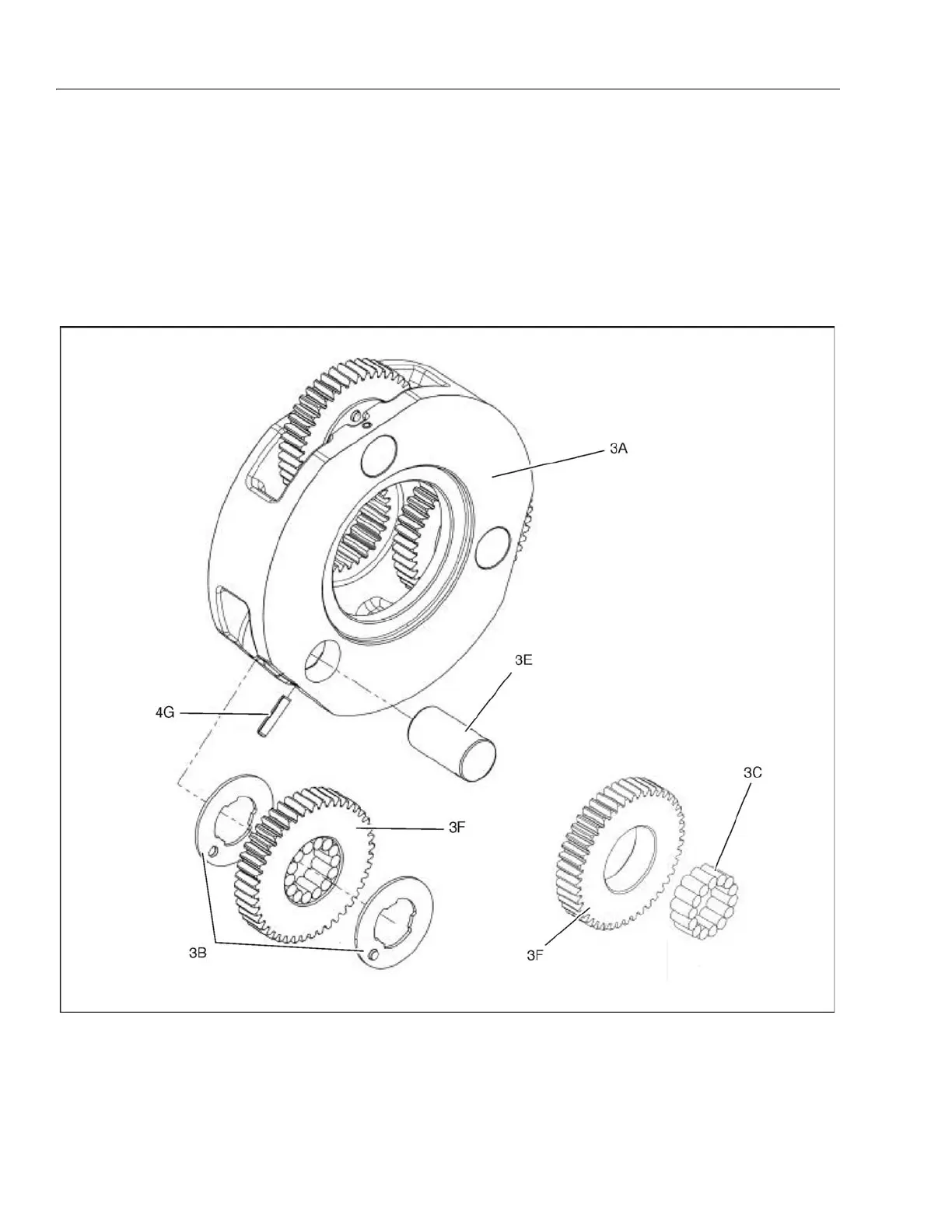

Figure 3-6. Input Carrier
3A Carrier
3B Thr ust Washer
3C Needle Bearing
3E Planet Shaft
3F Planet Gear
4G Ro ll P in
