JLG E600 - Hydraulic Tank and Pump (S;N 51941 to Present)

SECTION 5 - HYDRAULICS
5-18 – JLG Lift – 3121813
1. Hydraulic Tank
2. Filter & Pressure Switch
3. Suction Strainer
4. Magnetic Plug
5. Sight Gauge
6. Filter Indicator
7. Tank Strap
8. Electric Motor
9. Hydraulic Pump
10. Contactor Module
11. Fuel Tank (M Models Only)

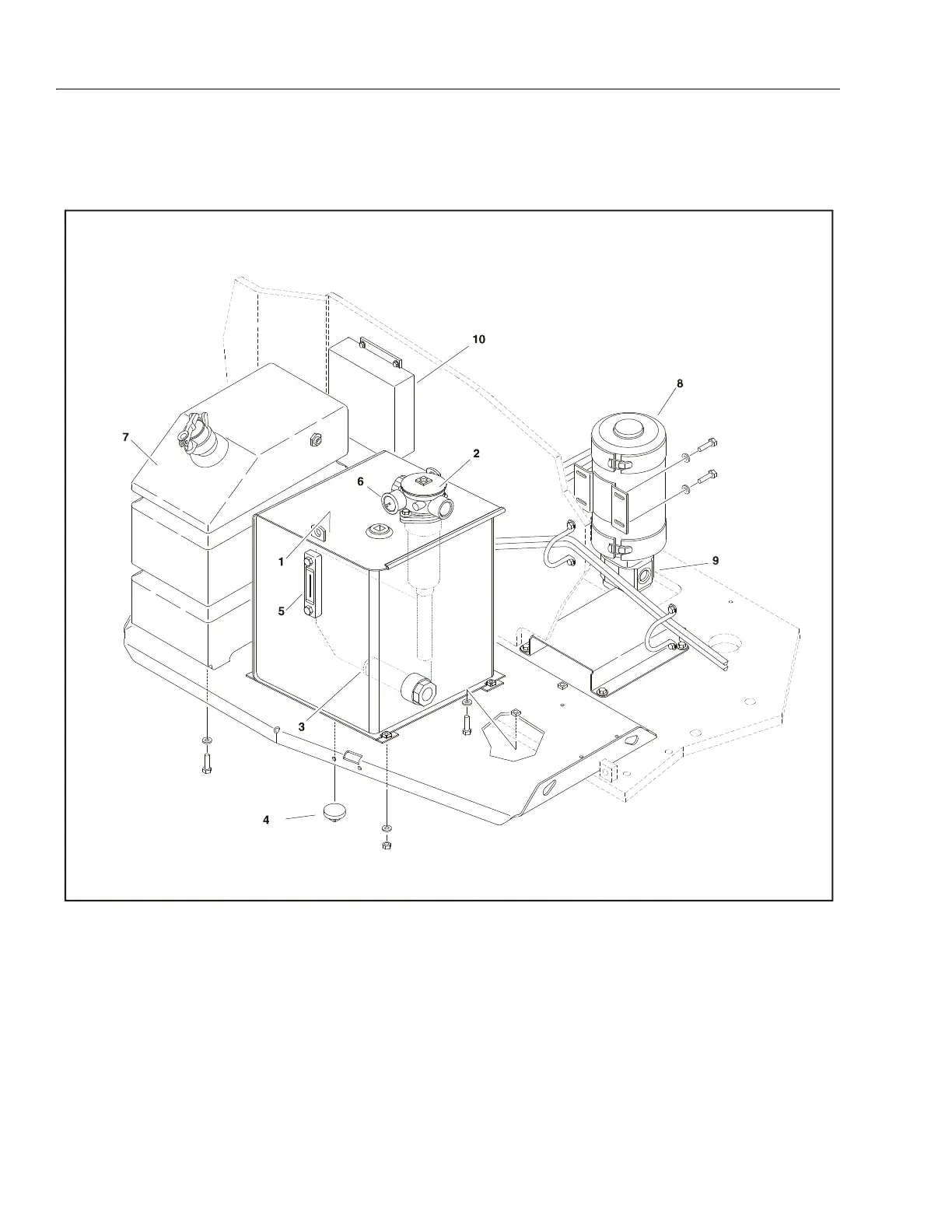

Figure 5-22. Hydraulic Tank and Pump (S/N 51941 to Present)
