JLG E600 - Telescope Cylinder

SECTION 5 - HYDRAULICS
3121813 – JLG Lift – 5-11
1. Loctite #242 (Not Shown)
2. Locking Primer (Not Shown)
3. Loctite (Not Shown)
4. Bolt
5. Bolt
6. Tapered Bushing
7. Barrel
8. Rod
9. Head
10. O-ring Plug
11. Not Used
12. Support Pad
13. Piston
14. Support Plate
15. Wear Ring
16. Backup Ring
17. Wear Ring
18. O-ring
19. O-ring
20. O-ring
21. Bolt
22. Bolt
23. Backup Ring
24. Wiper
25. Seal
26. Rod Seal
27. Spacer
28. Valve

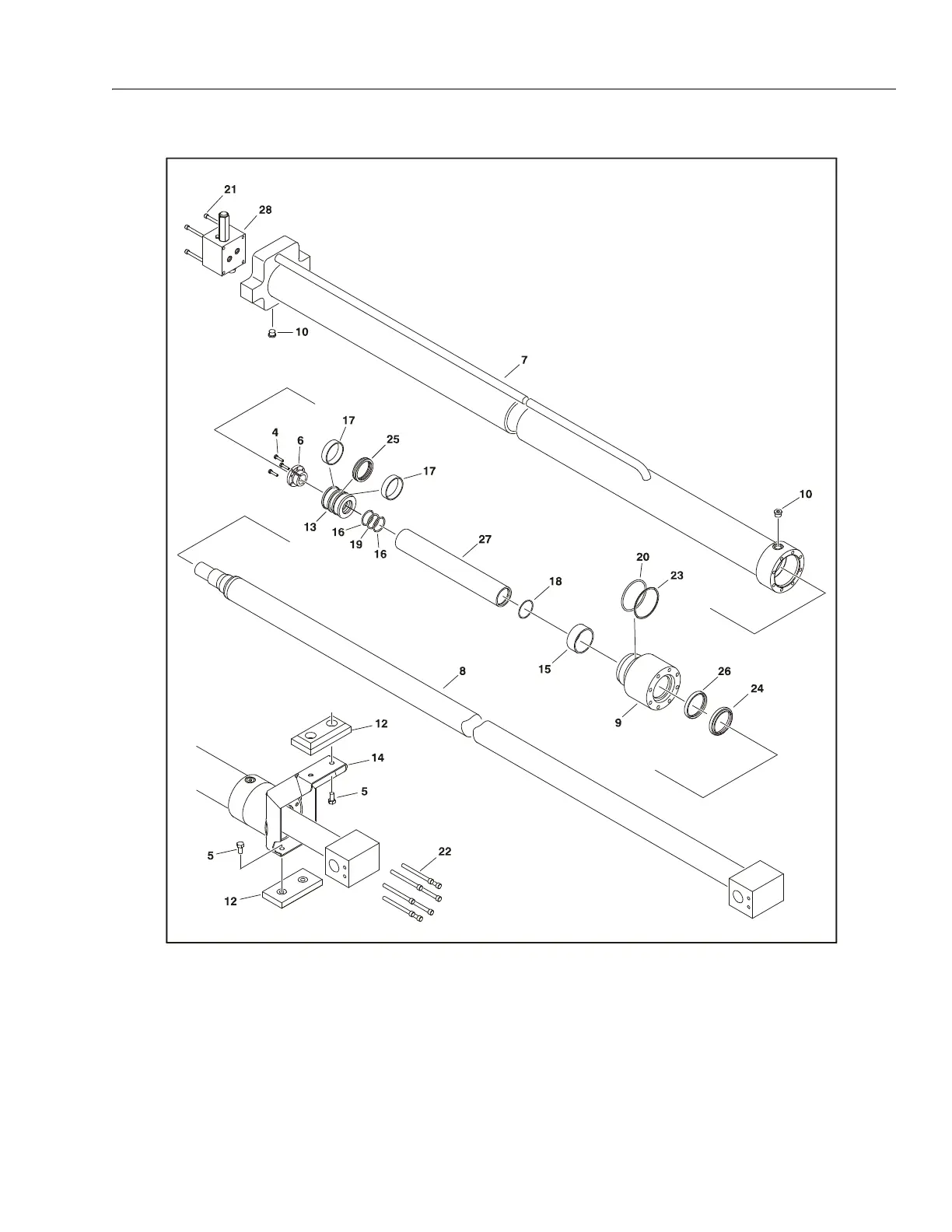

Figure 5-9. Telescope Cylinder
