JLG E600 - Battery Charger

SECTION 3 - CHASSIS & TURNTABLE
3-50 – JLG Lift – 3121813
13
15
19
12
14
20
7
3
2
1
1
8
10
11
9
6
4
17
18
1. 20 Amp Circuit Breaker
2. Connector
3. PC Board
4. DC Cord
5. Fuse Holder
6. 80 Amp DC Fuse
7. Harness
8. Harness
9. Fuse Holder
10. AC Inlet Plug
11. DC Plug
12. Rectifier
13. SCR
14. Relay
15. Shunt Assembly
16. Strain Relief
17. Transformer
18. Varistor

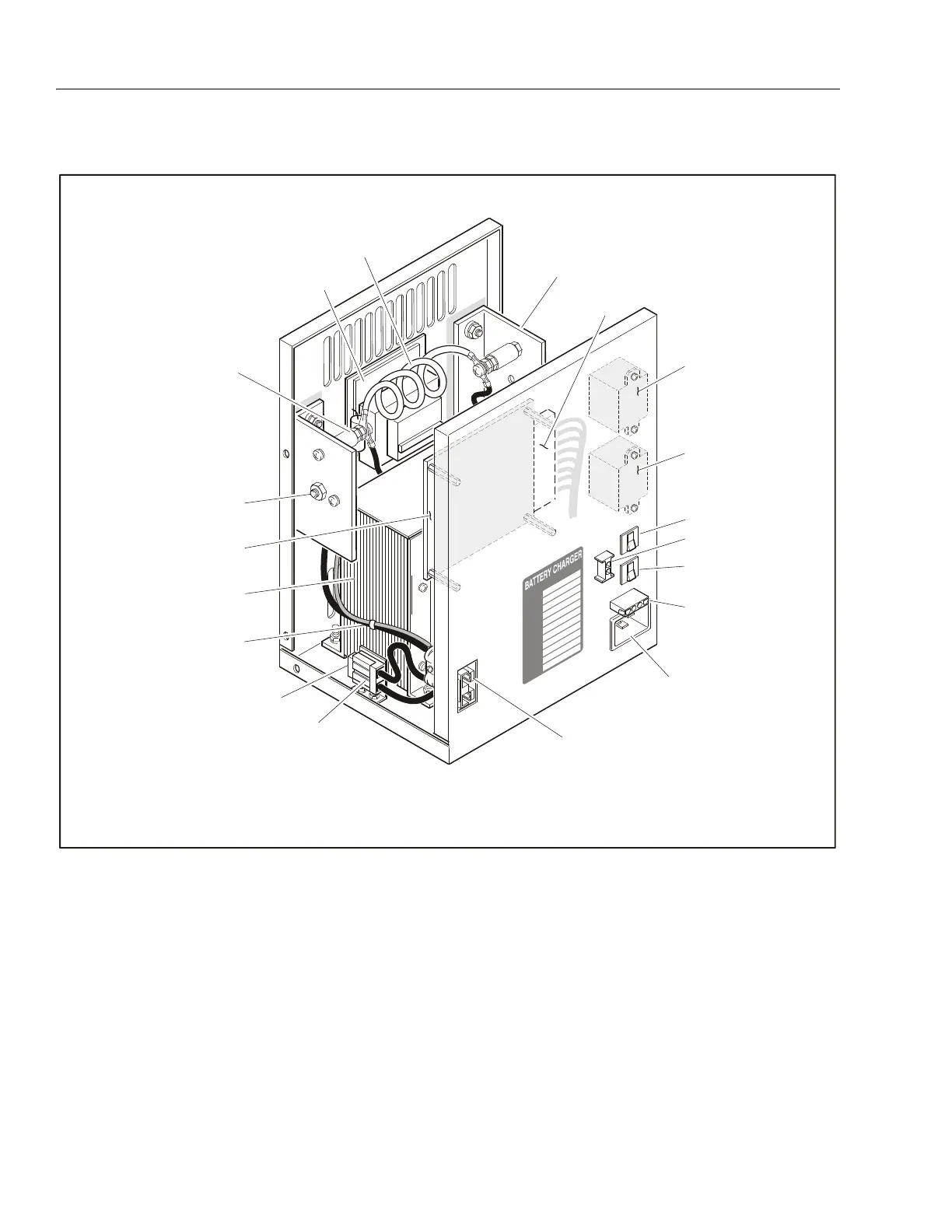

Figure 3-31. Battery Charger
NOTE: Charger Cover removed for clarity.
Item #5 Not Shown.
