JLG E600 - Steer Cylinder

SECTION 5 - HYDRAULICS
5-10 – JLG Lift – 3121813
1. Loctite #242 (Not Shown)
2. Locking Primer (Not Shown)
3. Loctite (Not Shown)
4. Rod
5. Barrel
6. Head
7. Not Used
8. Wear Ring
9. Wear Ring
10. O-ring
11. Wiper
12. Backup Ring
13. T-Seal
14. Seal
15. Washer Ring
16. Bolt

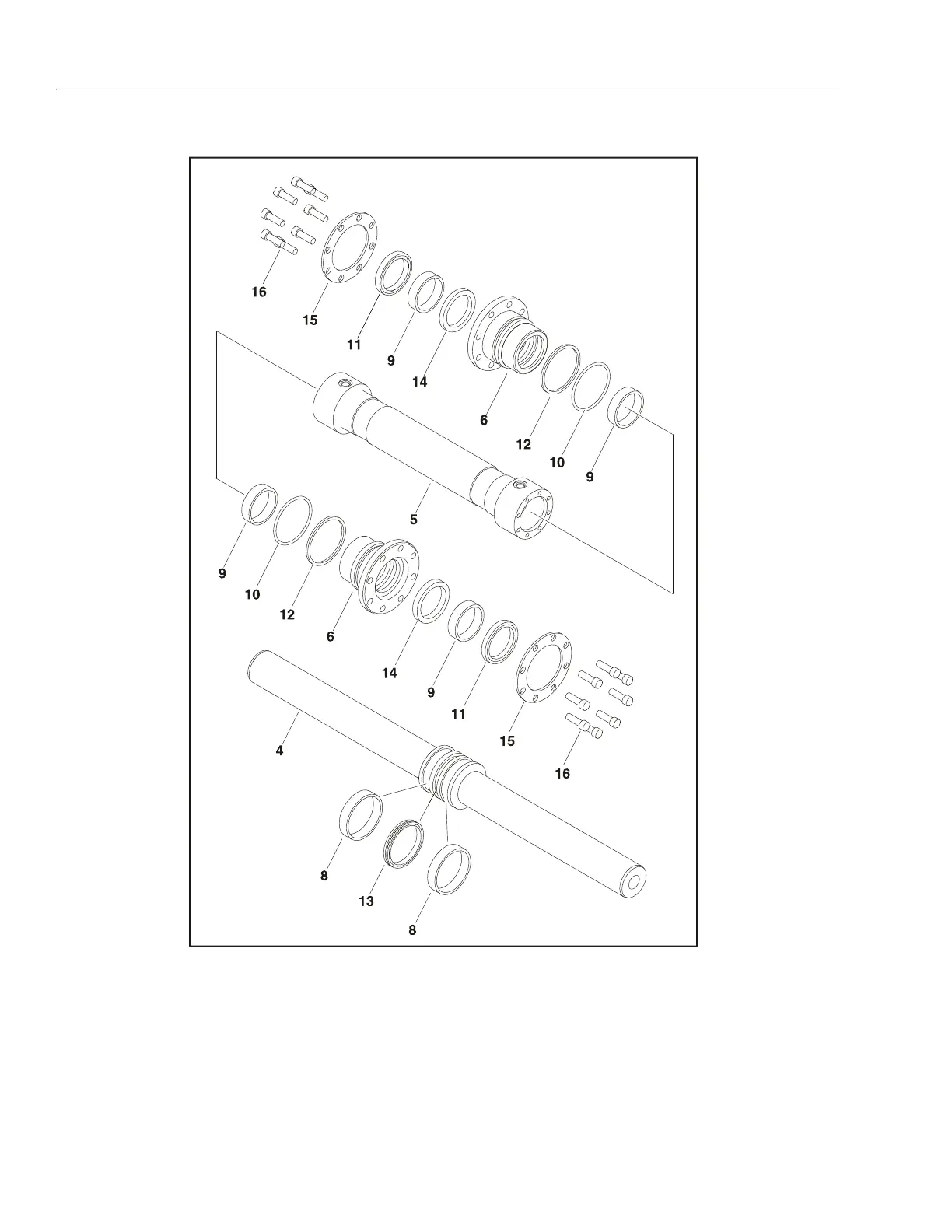

Figure 5-8. Steer Cylinder
