JLG E600 - Main Disassembly Drawing 2

SECTION 3 - CHASSIS & TURNTABLE
3121813 – JLG Lift – 3-9

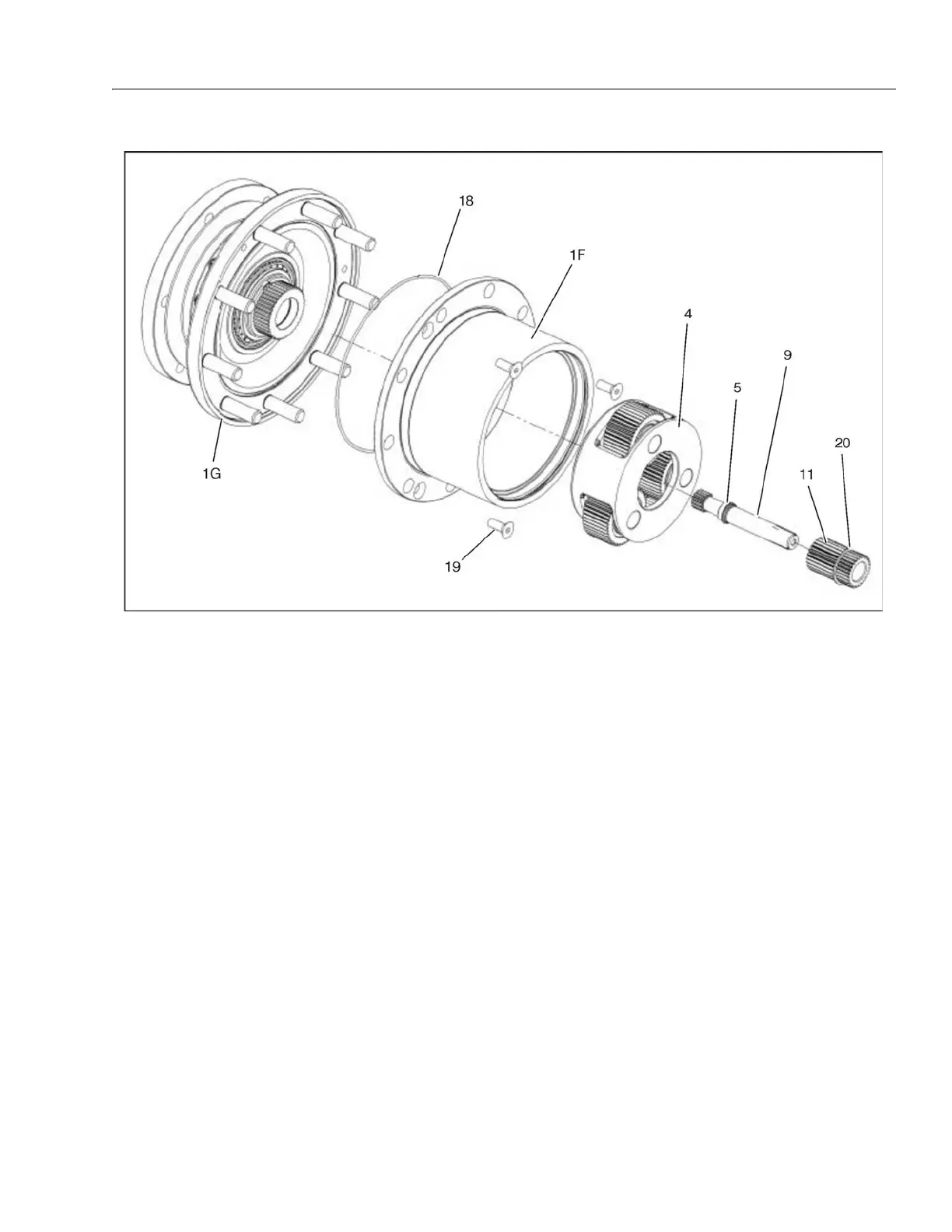

Figure 3-3. Main Disassembly Drawing 2
1F. Ring Gear
1G. Housing
4. Output Carrier Subassembly
5. Retaining Ring
6. Cover Assembly
6G. Retaining Ring
9. Input Shaft
10. First Stage Sun Gear
11. Second Stage Sun Gear
18. O-ring
19. Flat Head Bolts
20. Retaining Ring
