SECTION 3 - CHASSIS & TURNTABLE
3-36 – JLG Lift – 3121813
Main Disassembly
1. With the unit resting on the Output Shaft (Pinion)
(1A), remove the Carrier Subassembly.
2. Remove Ring Gear (2) from Housing Subassembly.
3. Remove O-ring (5) from between Ring Gear (2) and
Housing Subassembly.
4. Remove four Dowel Pins (14) from Housing Subas-
sembly.

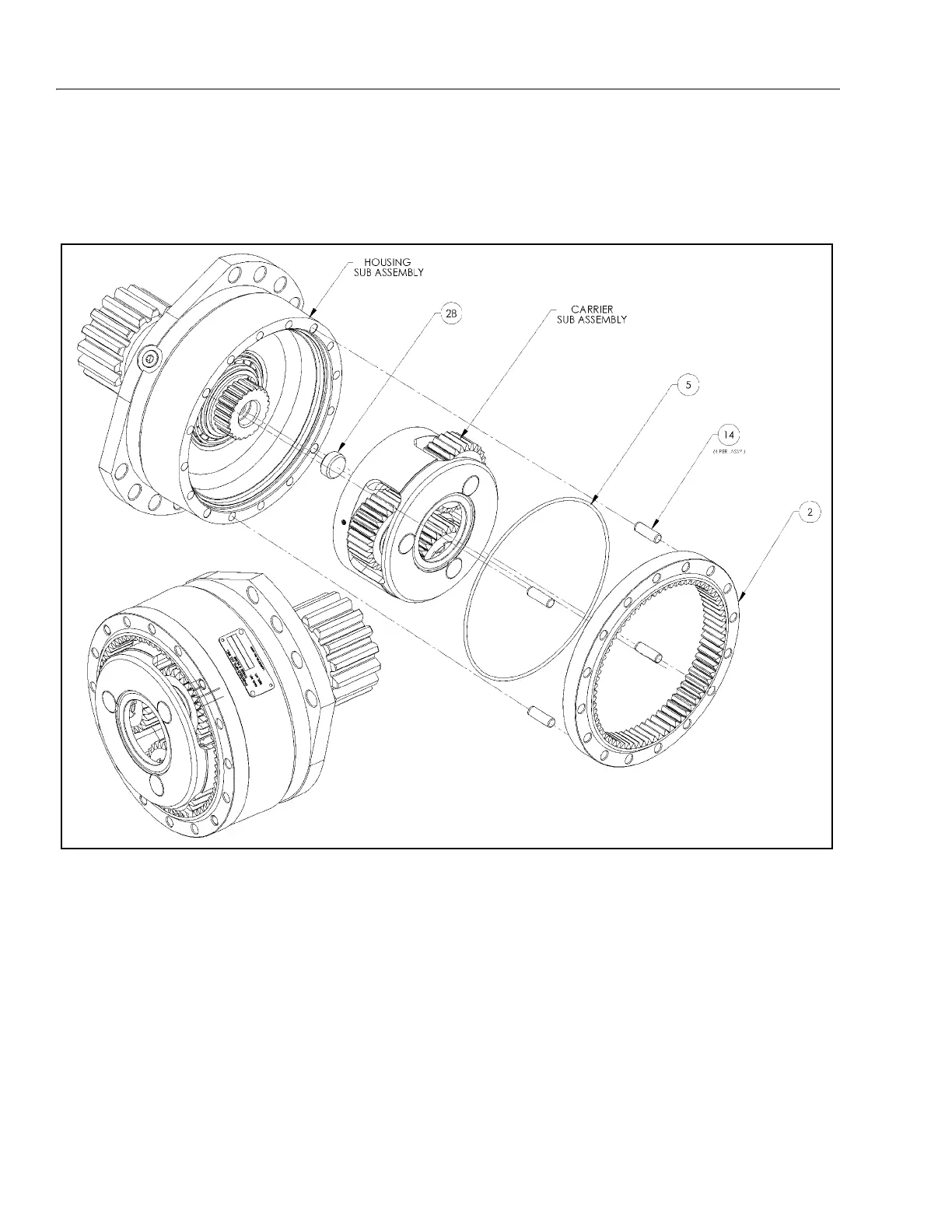

2. Ring Gear
5. O-Ring
14. Dowel Pins
28. Input Spacer
Figure 3-21. Main Disassembly
