SECTION 7 - BASIC ELECTRICAL INFORMATION & SCHEMATICS
7-6 – JLG Lift – 3121813
3. After all required contacts have been inserted, the
wedge lock must be closed to its locked position.
Release the locking latches by squeezing them
inward (See Figure 7-8.).
4. Slide the wedge lock into the housing until it is flush
with the housing (See Figure 7-9.).

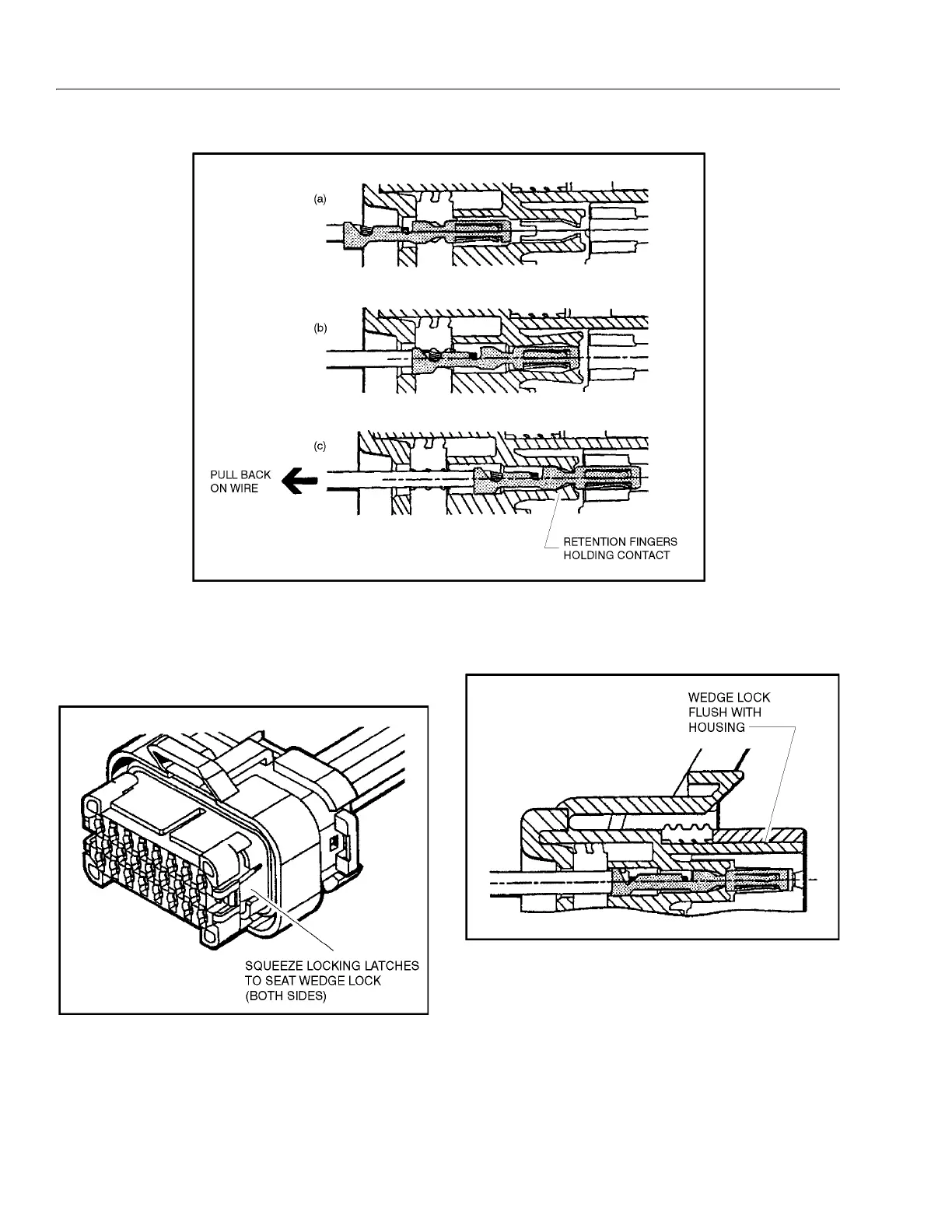

Figure 7-7. Connector Assembly Figure 2
Figure 7-8. Connector Assembly Figure 3
Figure 7-9. Connector Assembly Figure 4
