JLG E600 - Level Cylinder

SECTION 5 - HYDRAULICS
5-6 – JLG Lift – 3121813
1. Loctite #242 (Not Shown)
2. Locking Primer
3. Loctite #RC609 (Not Shown)
4. Bolt
5. Tapered Bushing
6. Bushing
7. Head
8. Rod
9. Barrel
10. O-ring Plug
11. O-ring Plug
12. Not Used
13. Piston
14. Wear Ring
15. Washer Ring
16. Backup Ring
17. Wear Ring
18. Backup Ring
19. O-ring
20. O-ring
21. Setscrew
22. Bolt
23. Wiper
24. Seal
25. T-Seal
26. Spacer
27. Counterbalance Valve
28. Counterbalance Valve

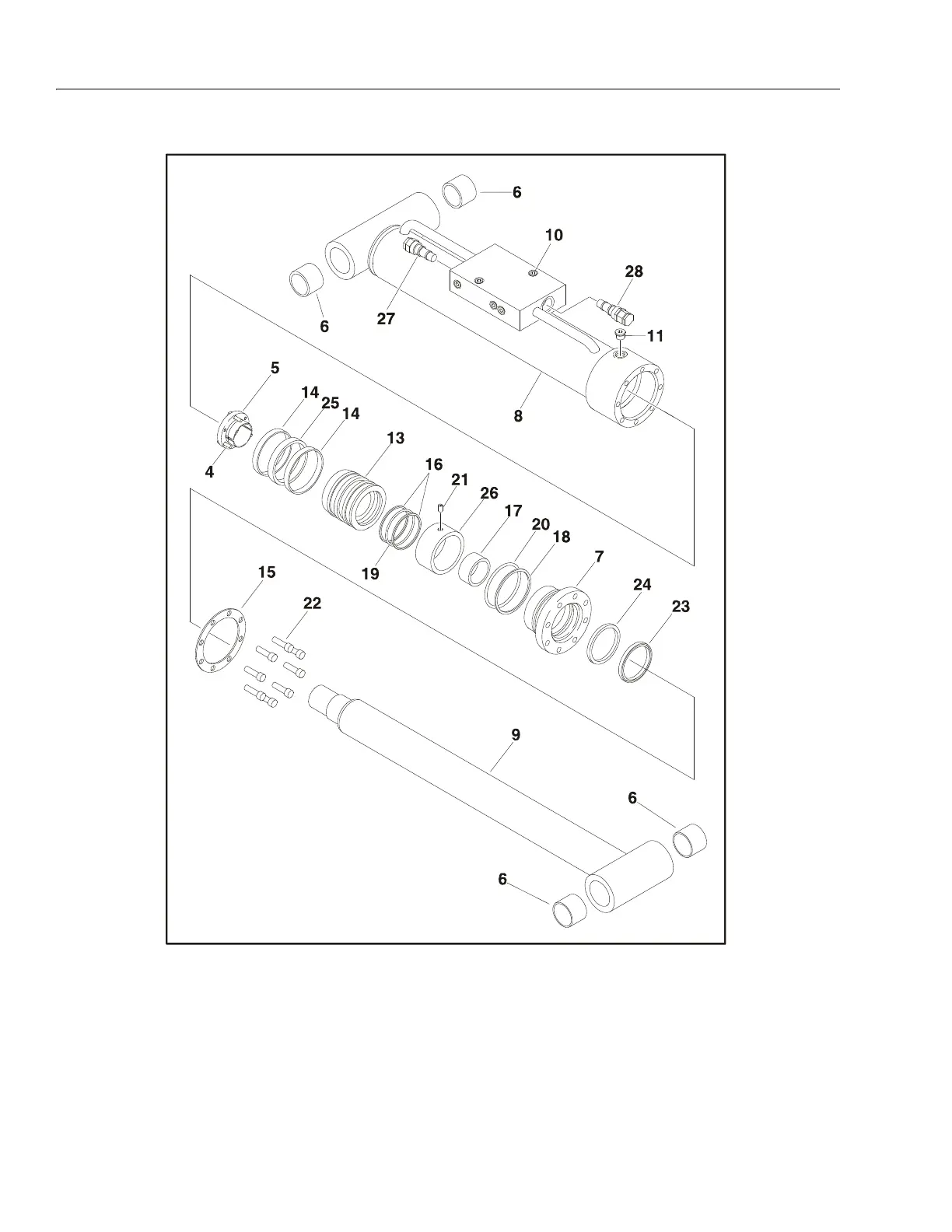

Figure 5-4. Level Cylinder
