SECTION 3 - CHASSIS & TURNTABLE
3-14 – JLG Lift – 3121813
Cover Disassembly
1. Remove O-Ring (17) from groove in Cover (6A).
2. Remove Thrust Washer (2) from Cover (6A) pockets.
3. Unscrew two Hex Head Bolts (6C) and remove Dis-
engage Cap (6B) from Cover (6A).
4. Pull Disengage Rod (6D) out from Cover (6A).
5. Use appropriate tool to remove O-ring (6E) from
internal groove in Cover (6A).
6. Remove two O-Ring Pipe Plugs (6F) from Cover
(6A).

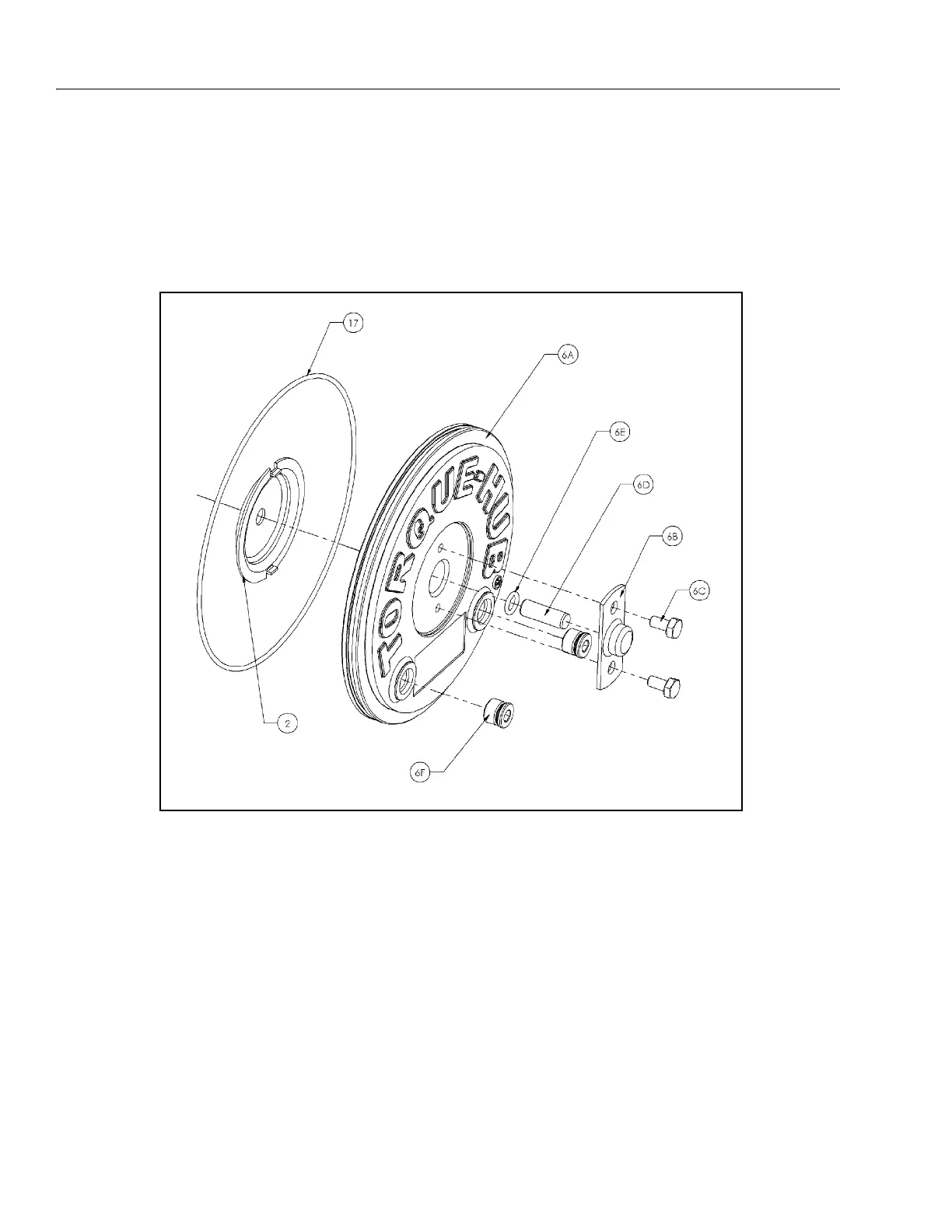

Figure 3-8. Cover Assembly
2 Thrus t Spacer
3A Inp ut Carrier
6A Cover
6B Disengage Cap
6C Bolt, Hex
6D Dowel Pin
6E O-ring
6F Pipe Plug
17 O-r in g
