SECTION 3 - CHASSIS & TURNTABLE
3-48 – JLG Lift – 3121813
Removing the Battery Box
To remove the battery box, perform the following steps.
1. Pull the pull ring to disconnect the batteries at the
battery disconnect beside the box.
2. Remove the two attachment bolts that secure the
battery box to the turntable.
NOTE: The battery box and batteries complete weigh
approximately 668 pounds (303 kg).
3. Using a forklift, lift the battery box up enough to
clear the notch on the battery box rails and remove
the battery box from the machine.

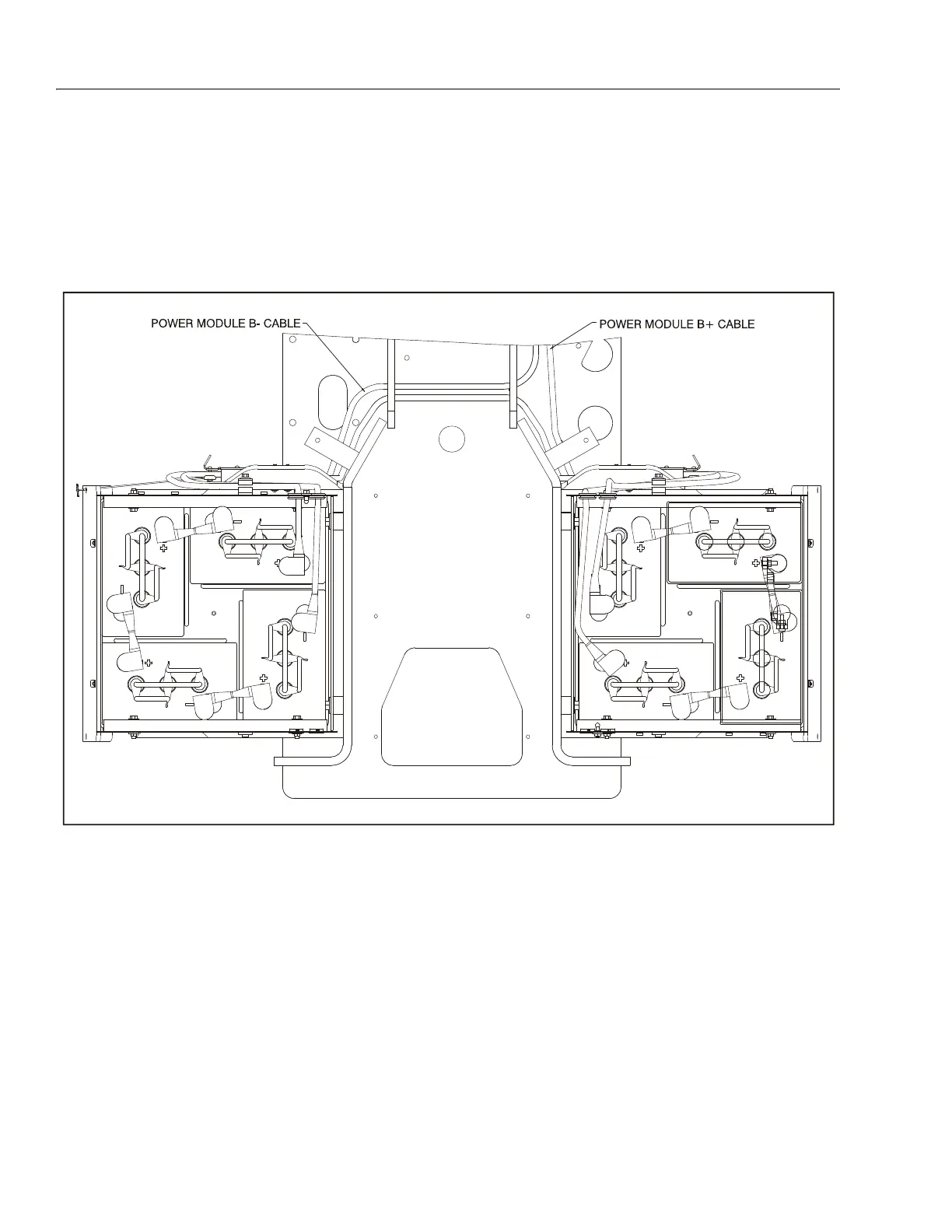

Figure 3-29. Battery Cable Routing
