JLG E600 - Main Disassembly Drawing 1

SECTION 3 - CHASSIS & TURNTABLE
3-8 – JLG Lift – 3121813

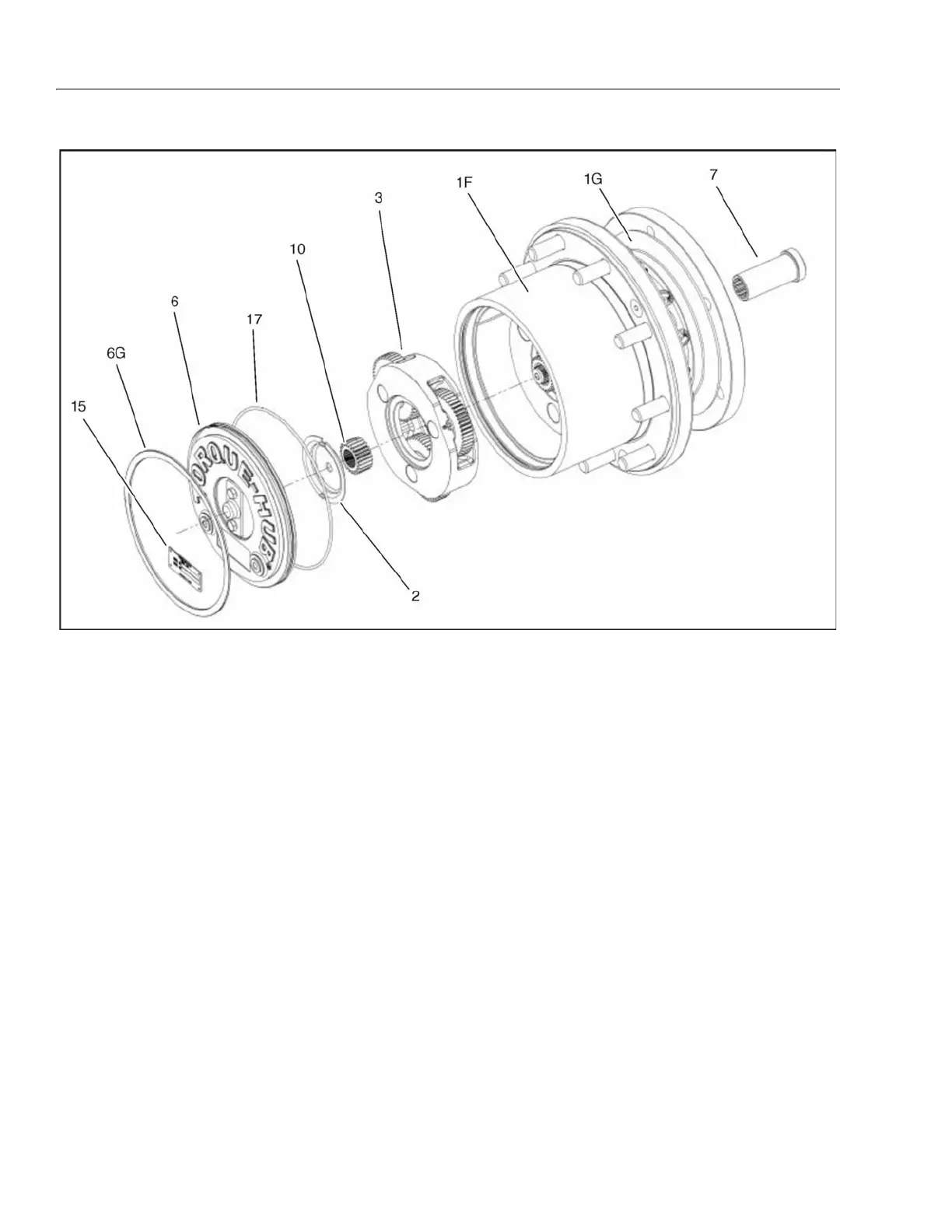

Figure 3-2. Main Disassembly Drawing 1
1F. Ring Gear
1G. Housing
2. Washer
3. Input Carrier Subassembly
4. Output Carrier Subassembly
6. Cover Assembly
6G. Retaining Ring
7. Coupling
9. Input Shaft
10. First Stage Sun Gear
11. Second Stage Sun Gear
15. I.D. Plate
18. O-ring
19. Flat Head Bolts
