SECTION 3 - CHASSIS & TURNTABLE
3121813 – JLG Lift – 3-35
6. Remove Motor (10) from Brake Housing (6) by
removing four Bolts (15) incrementally until spring
pressure is relieved.
7. Remove O-Ring (26) from between Motor (10) and
Brake Housing (6).
8. Remove Springs (8-6) & (8-7) from Brake Piston (8-
2).
WEAR EYE PROTECTION DURING THE NEXT STEP OF THIS PRO-
CEDURE.
9. Remove Brake Piston (8-2) from Brake Housing (6)
by slowly pressurizing brake port in Brake Housing
(6) with air.
10. Remove O-Rings (8-1A) & (8-1C) and Backup Rings
(8-1B) & (8-1D) from Brake Piston (8-2).
11. Remove Sun Gear (9).
12. Remove Outer Plates (8-3) and Inner Plates (8-4)
from the Brake Housing (6).
13. Remove the Thrust Spacer (8-5).

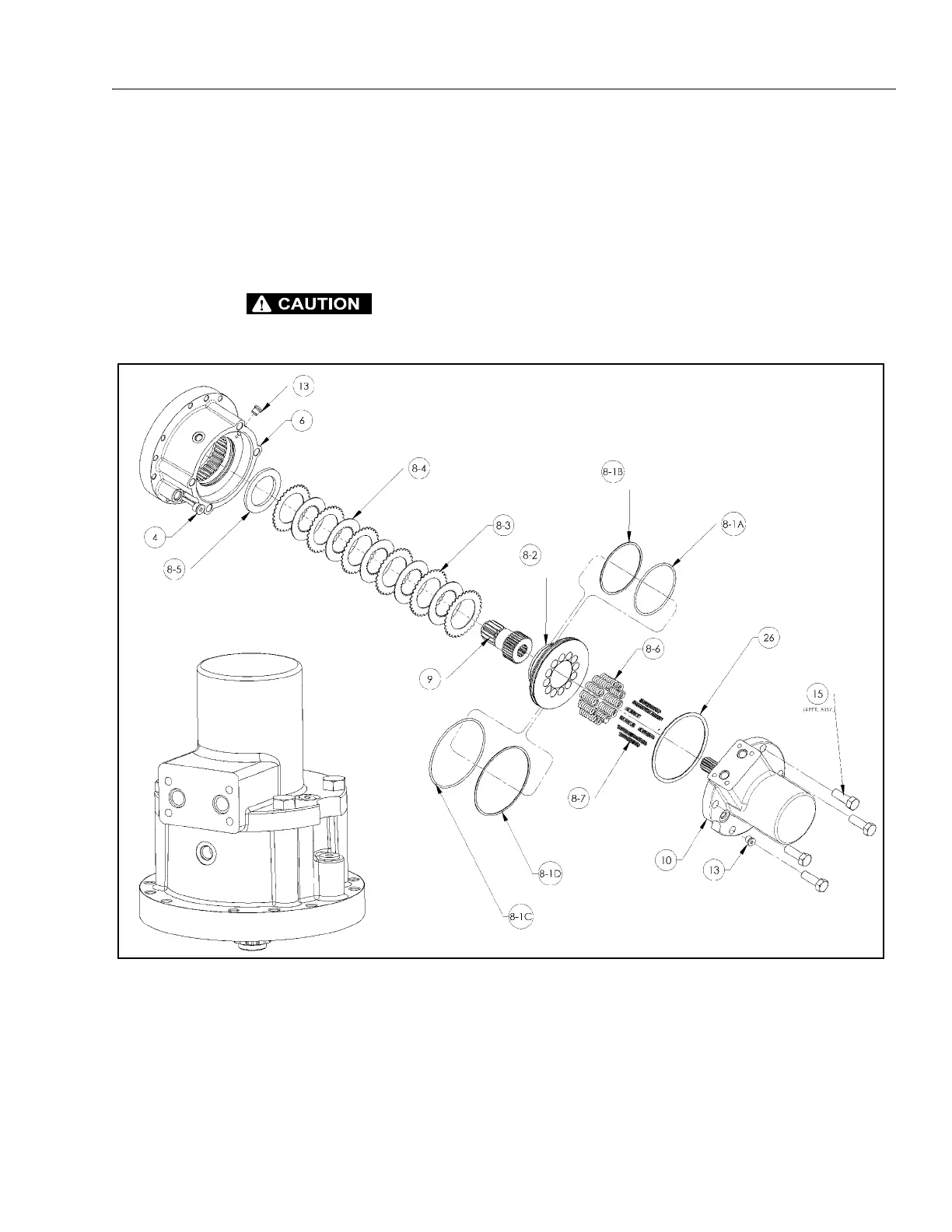

4. O-rin g Plug
6. Brake Housing
8-1A. O-ring
8-1B. Backup Ring
8-1C. O-ring
8-1D. Backup Ring
8-2. Brake Piston
8-3. Outer Plates
8-4. Inner Plates
8.5. Thrust Spacer
8-6. Spring
8.7. Spring
9. Sun Gear
10. Motor
13. O-ring Plug
15. Bolts
26. O-ring
Figure 3-20. Brake Disassembly
