JLG E600 - Drive Brake

SECTION 3 - CHASSIS & TURNTABLE
3-22 – JLG Lift – 3121813
23
22
19
21
18
17
16
15
20
12
11
10
9
8
7
6
5
4
23
3
1
13
14
2
1. Capscrew
2. Washer
3. Pressure Plate
4. Case Seal
5. O-ring
6. Backup Ring
7. Piston
8. O-ring
9. Backup Ring
10. Shaft
11. Stator Disc
12. Sensor Ring
13. Rotor Disc
14. Plate
15. Spring
16. Spring Retainer
17. Retaining Ring
18. Bearing
19. Retaining Ring
20. Dowel Pin
21. Cover
22. Rotary Oil Seal
23. Gasket

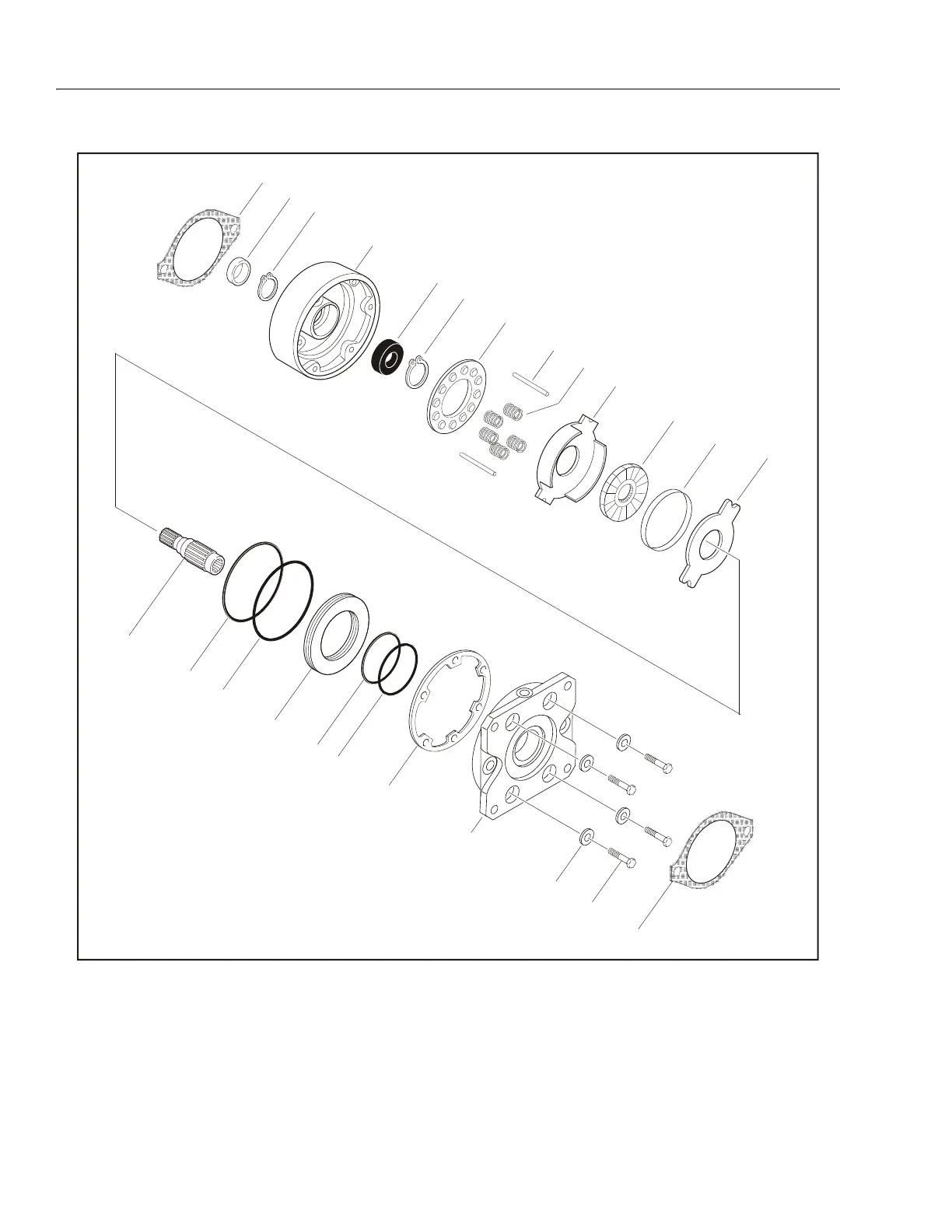

Figure 3-13. Drive Brake
