JLG E600 - Jib Rotator Assembly

SECTION 4 - BOOM & PLATFORM
3121813 – JLG Lift – 4-27
1. Housing
2. Sha ft
3. Piston Sleeve
4. End Ca p
5. Loc kring
102. Socket Head Capscrew
106. Port Plug
111. Grease Fitting
112. Grease Relief Valve
400. Stop Tube
200. Rod Seal
201. Rod Seal
202. Piston Seal
204. Cap Seal
205. Bearing Seal
206. Exclusion Seal
301. Piston Bearing
302. Shaft Bearing
303. Shaft Bearing
304. Thrust Washer

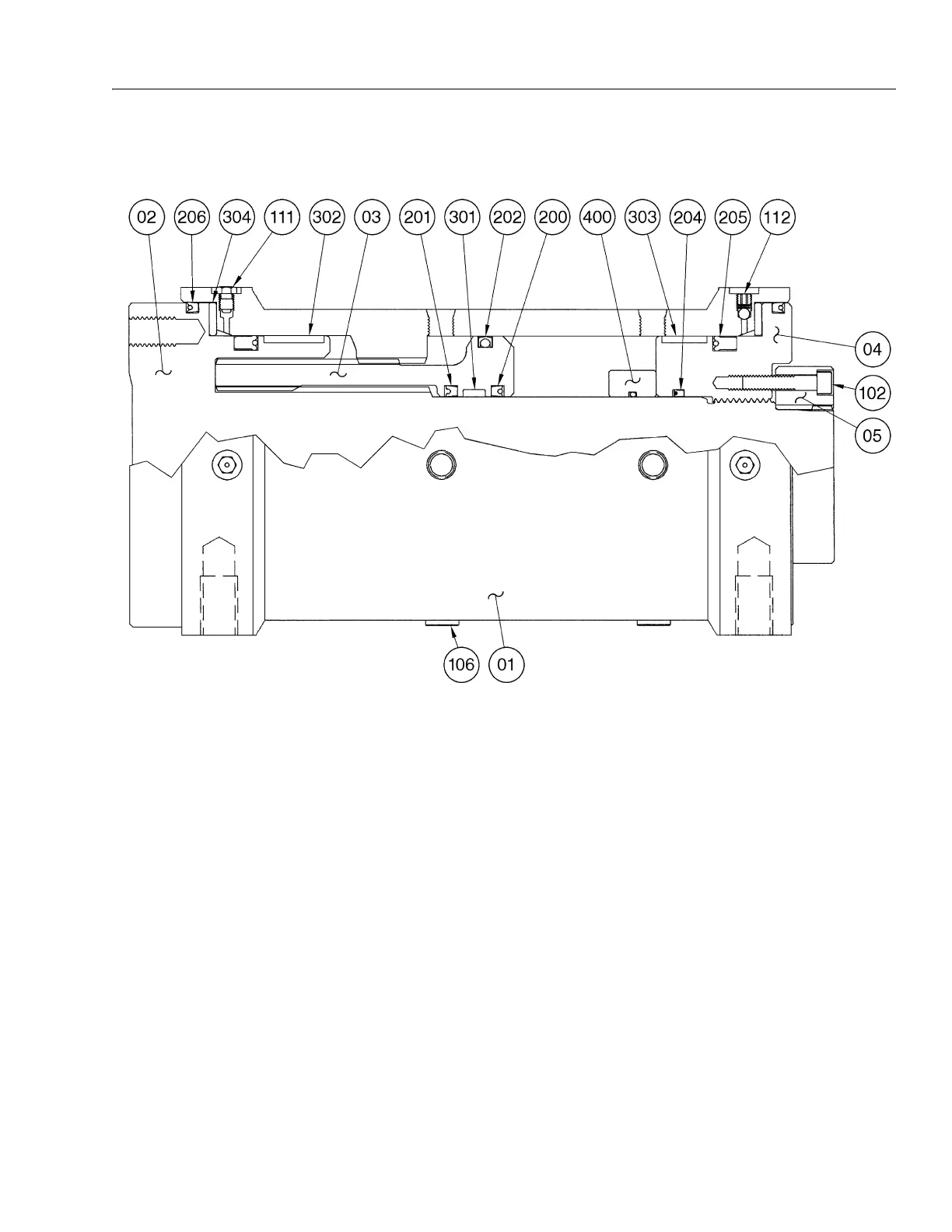

Figure 4-12. Jib Rotator Assembly
